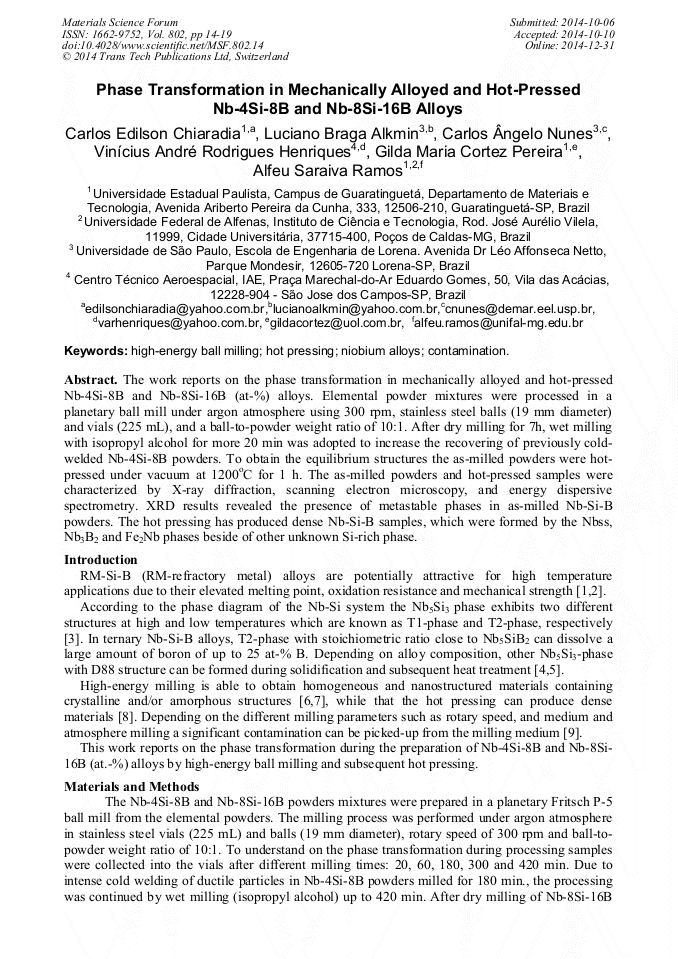

Phase Transformation in Mechanically Alloyed and Hot-Pressed Nb-4Si-8B and Nb-8Si-16B Alloys

Abstract:

The work reports on the phase transformation in mechanically alloyed and hot-pressed Nb-4Si-8B and Nb-8Si-16B (at-%) alloys. Elemental powder mixtures were processed in a planetary ball mill under argon atmosphere using 300 rpm, stainless steel balls (19 mm diameter) and vials (225 mL), and a ball-to-powder weight ratio of 10:1. After dry milling for 7h, wet milling with isopropyl alcohol for more 20 min was adopted to increase the recovering of previously cold-welded Nb-4Si-8B powders. To obtain the equilibrium structures the as-milled powders were hot-pressed under vacuum at 1200^oC for 1 h. The as-milled powders and hot-pressed samples were characterized by X-ray diffraction, scanning electron microscopy, and energy dispersive spectrometry. XRD results revealed the presence of metastable phases in as-milled Nb-Si-B powders. The hot pressing has produced dense Nb-Si-B samples, which were formed by the Nbss, Nb₃B₂ and Fe₂Nb phases beside of other unknown Si-rich phase.

• Periodical: Materials Science Forum (Volume 802)
• Pages: 14-19
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.802.14
• Online since: December 2014
• Authors: Carlos Edilson Chiaradia*, Luciano Braga Alkmin, Carlos Ângelo Nunes, Vinícius André Rodrigues Henriques, Gilda Maria Cortez Pereira, Alfeu Saraiva Ramos
• Keywords: Contamination, High-Energy Ball Milling, Hot Pressing, Niobium Alloys

References

[1] K. Ito, M. Kumagai, T. Hayashi, M. Yamaguchi: Scripta Mater Vol. 49 (2003), p.285.

[2] J. Cheng, S. Yi, J.S. Park: Intermetallics Vol. 23 (2012), p.12.

[3] M. E. Schlesinger, H. Okamoto, A. B. Gokhale, R. Abbaschian: J Phase Equilib Vol. 14 (1993), p.502.

[4] D.M.P. Júnior, C.A. Nunes, G.C. Coelho, F. Ferreira: Intermetallics Vol. 11 (2003), p.251.

[5] C.A. Nunes, D.M.P. Junior, G.C. Coelho, P.A. Suzuki, A.A.A.P. Silva, R.B. Tomasiello: J. Phase Equilib Vol. 32 (2011), p.92.

[6] C. Suryanarayana: Prog Mater Sci Vol. 46 (2001), pp.1-184.

[7] B.B. Fernandes, G. Rodrigues, G. Silva, E.C.T. Ramos, H.R.Z. Sandim, A.S. Ramos: J Alloy Compd Vol. 434/35 (2007), p.530.

[8] J.M.A. Abdala, B.B. Fernandes, D.R. Santos, V.A.R. Henriques, C.M. Neto, A.S. Ramos: J Alloy Compd Vol. 495 (2010), p.423.

[9] A.S. Ramos, G.C. Coelho, B.B. Fernandes, G. Rodrigues: Mat Sci Eng A-Struct Vol. 405 (2005), p.135.

[10] Powder Diffraction File Inorganics Phases: alphabetical index, inorganics phases. Swarthmore, Pennsylvania: JCPDS/International Centre for Diffraction Data, (1988).

[11] G. Nolze, W. Kraus, PowderCell 2. 0 for Windows, Powder Diffr. 13 (1998), pp.256-259.
