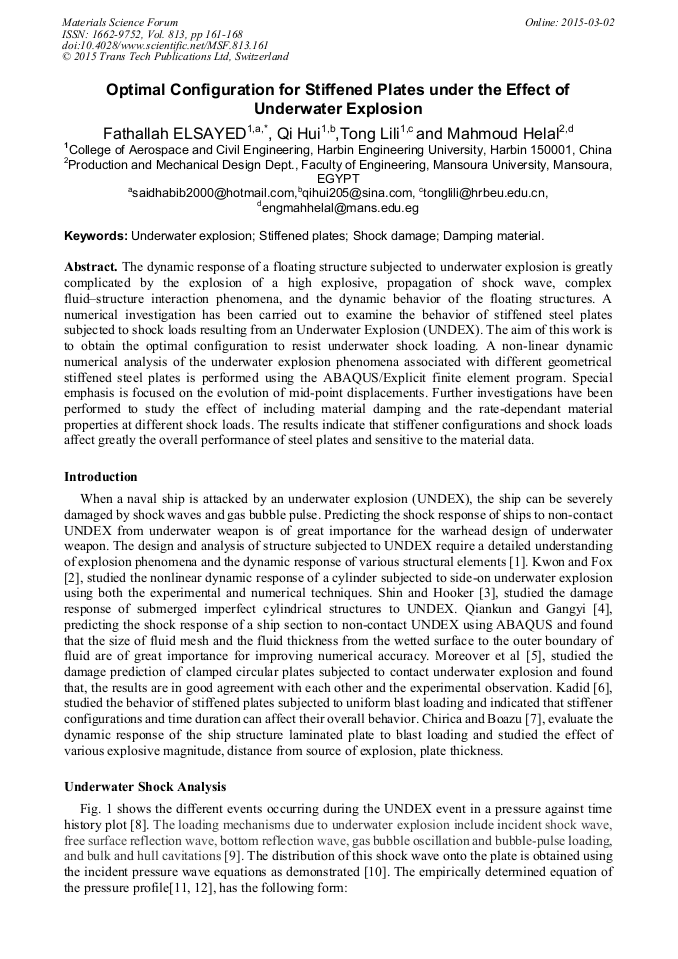

Optimal Configuration for Stiffened Plates under the Effect of Underwater Explosion

Abstract:

The dynamic response of a floating structure subjected to underwater explosion is greatly complicated by the explosion of a high explosive, propagation of shock wave, complex fluid–structure interaction phenomena, and the dynamic behavior of the floating structures. A numerical investigation has been carried out to examine the behavior of stiffened steel plates subjected to shock loads resulting from an Underwater Explosion (UNDEX). The aim of this work is to obtain the optimal configuration to resist underwater shock loading. A non-linear dynamic numerical analysis of the underwater explosion phenomena associated with different geometrical stiffened steel plates is performed using the ABAQUS/Explicit finite element program. Special emphasis is focused on the evolution of mid-point displacements. Further investigations have been performed to study the effect of including material damping and the rate-dependant material properties at different shock loads. The results indicate that stiffener configurations and shock loads affect greatly the overall performance of steel plates and sensitive to the material data.

• Periodical: Materials Science Forum (Volume 813)
• Pages: 161-168
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.813.161
• Online since: March 2015
• Authors: Fathallah Elsayed*, Hui Qi, Li Li Tong, Mahmoud Helal
• Keywords: Damping Material, Shock Damage, Stiffened Plates, Underwater Explosion

References

[1] Z. Zong, Y. Zhao, H. Li, A numerical study of whole ship structural damage resulting from close-in underwater explosion shock, Marine Structures, 31 (2013) 24 - 43.

DOI: 10.1016/j.marstruc.2013.01.004

[2] Y.W. Kwon, P.K. Fox, Underwater Shock Response of a Cylinder Subjected to a Side-on Explosion, Computers and Structures, 48 (1993) 637-646.

DOI: 10.1016/0045-7949(93)90257-e

[3] Y.S. Shin, D.T. Hooker, Damage Response of Submerged Imperfect Cylindrical Structures to Underwater Explosion, Computers and Structures, 60 (1996) 683-693.

DOI: 10.1016/0045-7949(95)00441-6

[4] J. Qiankun, D. Gangyi, A finite element analysis of ship sections subjected to underwater explosion, International Journal of Impact Engineering, 38 (2011) 558-566.

DOI: 10.1016/j.ijimpeng.2010.11.005

[5] R. Rajendran, K. Narasimhan, Damage prediction of clamped circular plates subjected to contact underwater explosion, International Journal of Impact Engineering, 25 (2001) 373-386.

DOI: 10.1016/s0734-743x(00)00051-8

[6] A. Kadid, Stiffened Plates Subjected to Uniform Blast Loading, Journal of Civil Engineering and Management 14 (2008) 155-161.

DOI: 10.3846/1392-3730.2008.14.11

[7] I. Chirica, D. Boazu, E. -F. Beznea, Response of ship hull laminated plates to close proximity blast loads, Computational Materials Science, 52 (2012) 197-203.

DOI: 10.1016/j.commatsci.2011.07.036

[8] A.H. Keil, The response of ships to underwater explosions, Trans Soc Naval Archit Mar Eng, 69 (1961) 366-410.

[9] Y.S. Shin, Ship shock modeling and simulation for far-field underwater explosion, Computers and Structures 82 (2004) 2211- 2219.

DOI: 10.1016/j.compstruc.2004.03.075

[10] K. Hibbitt, I. Sorensen, AbaqusTutorial Version 6. 10 Example Problems Manual, in, USA, (2010).

[11] RH. Cole, Underwater explosions, in, New York: Dover Publications Inc, (1948).

[12] C.Y. Jen, Coupled acoustic structural response of optimized ring stiffened hull for scaled down submerged vehicle subject to underwater explosion, Theoretical and Applied Fracture Mechanics, 52 (2009) 96–110.

DOI: 10.1016/j.tafmec.2009.08.006

[13] A. Zhange, X. Yao, J. Li, The interaction of an underwatet explosion bubble and an elastic-plastic structure, Applid Ocean Research, 30 (2008) 159-171.

DOI: 10.1016/j.apor.2008.11.003

[14] K. Hibbitt, I. Sorensen, Abaqus Version 6. 10. Abaqus Analysis User's Manual, in, USA, (2010).

[15] C. y. jen, Y.S. Tai, Deformation behavior of a stiffened panel subjected to underwater shock loading using the non-linear finite element method, Materials and Design, 31 (2010) 325-335.

DOI: 10.1016/j.matdes.2009.06.011

[16] S.C.K. Yuen, G.N. Nurick, Experimental and numerical studies on the response of quadrangular stiffened plates. Part I subjected to uniform blast load, International Journal of Impact Engineering, 31 (2005) 55-83.

DOI: 10.1016/j.ijimpeng.2003.09.048

[17] G.S. Langdon, S.C.K. Yuen, G.N. Nurick, Experimental and numerical studies on the response of quadrangular stiffened plates. Part II: localised blast loading, International Journal of Impact Engineering, 31 (2005) 85-111.

DOI: 10.1016/j.ijimpeng.2003.09.050

[18] K. Ramajeyathilagam, C.P. Vendhan, V.B. Rao, Non-linear transient dynamic response of rectangular plates under shock loading, International Journal of Impact Engineering, 24 (2000) 999-1015.

DOI: 10.1016/s0734-743x(00)00018-x

[19] K. Hibbitt, I. Sorensen, Abaqus Tutorial version 10. 1 Getting Started with ABAQUS interactive Edition, in, USA, (2010).

[20] N. Jones, Structural impact, Cambridge (UK): Cambridge University Press, (1989).
