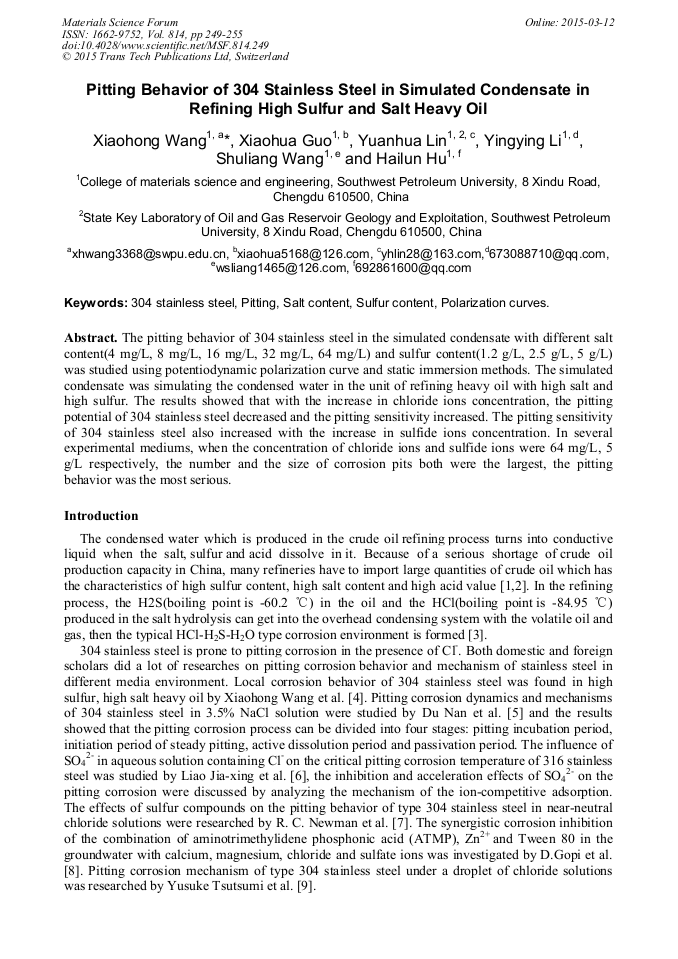

Pitting Behavior of 304 Stainless Steel in Simulated Condensate in Refining High Sulfur and Salt Heavy Oil

Abstract:

The pitting behavior of 304 stainless steel in the simulated condensate with different salt content (4 mg/L, 8 mg/L, 16 mg/L, 32 mg/L, 64 mg/L) and sulfur content (1.2 g/L, 2.5 g/L, 5 g/L) was studied using potentiodynamic polarization curve and static immersion methods. The simulated condensate was simulating the condensed water in the unit of refining heavy oil with high salt and high sulfur. The results showed that with the increase in chloride ions concentration, the pitting potential of 304 stainless steel decreased and the pitting sensitivity increased. The pitting sensitivity of 304 stainless steel also increased with the increase in sulfide ions concentration. In several experimental mediums, when the concentration of chloride ions and sulfide ions were 64 mg/L, 5 g/L respectively, the number and the size of corrosion pits both were the largest, the pitting behavior was the most serious.

• Periodical: Materials Science Forum (Volume 814)
• Pages: 249-255
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.814.249
• Online since: March 2015
• Authors: Xiao Hong Wang*, Xiao Hua Guo, Yuan Hua Lin, Ying Ying Li, Shu Liang Wang, Hai Lun Hu
• Keywords: 304 Stainless Steel, Pitting, Polarization Curves, Salt Content, Sulfur Content

References

[1] X.H. Wang, Y.J. Shi, C.Y. Shao, W. Xue, T. Wen, Effect of high sulfur and high acid value crude oil temperature on corrosion resistance of 1Cr5Mo steel, Transactions of Materials and Heat Treatment. 34 (2013) 167-171.

[2] D.Z. Li, W.K. Ling, G.X. Chen, P.Q. Zhao, C.A. Wu, Y.A. Li, Status of Development of corrosion inhibitor for atmospheric-vacuum distillation unit and prospect, Corrosion & Protection in Petrochemical Industry. 26(2009) 8-10.

[3] K. Wang, C.G. Zhai, Y. Ni, L.H. Feng, L.M. Wu, L.Y. Huang, The application of low-temperature-inhibitor in corrosion control for CDU overhead, Science & Technology in Chemical Industry. 16(2008) 44-47.

[4] X.H. Wang, Y. Wei, C.Y. Shao, Y.J. Shi, W. Xue, J.F. Zhu, Study on corrosion behavior of the 304 stainless steel in the heavy oil with high salt, high sulfur and high acid value, Applied Mechanics and Materials. 252(2013) 271-275.

DOI: 10.4028/www.scientific.net/amm.252.271

[5] N. Du, W.M. Tian, Q. Zhao, S.B. Chen, Pitting Corrosion dynamics and mechanisms of 304 stainless steel in 3. 5% NaCl solution, Acta Metallurgica Sinica. 48(2012) 807-814.

DOI: 10.3724/sp.j.1037.2012.00005

[6] J. X Liao, Y.M. Jiang, W.W. Wu, C. Zhong, J. Li, Influence of SO42- in aqueous solution containing Cl- on the critical pitting corrosion temperature of 316 stainless steel, Acta Metallurgica Sinica. 42(2006) 1187-1190.

[7] R.C. Newman, H.S. Lsaace, B. Alman, Effects of sulfur compounds on the pitting behavior of type 304 stainless steel in near-neutral chloride solutions, Corrosion. 38(1982) 261-265.

DOI: 10.5006/1.3577348

[8] D. Gopi, S. Manimozhi, K.M. Govindaraju, P. Manisankar, S. Rajeswari, Surface and electrochemical characterization of pitting corrosion behavior of 304 stainless steel in ground water media, Applied Electrochemistry. 37(2007) 439-449.

DOI: 10.1007/s10800-006-9274-0

[9] Y. Tsutsumi, A. Nishikata, T. Tsuru, Pitting corrosion mechanism of Type 304 stainless steel under a droplet of chloride solutions, Corrosion Science. 49(2007) 1394-1407.

DOI: 10.1016/j.corsci.2006.08.016

[10] Y.Z. Lin, D.J. Yang, Corrosion and corrosion control principle, China Petrochemical Press, Peking, (2007).

[11] X.H. Qu, C.C. Xu, G.C. Lv, H.D. Cheng, Corrosion behaviors of 304 stainless steel in low hardness cooling water containing Cl-, SO42- and RP-98H water treatment agent, Journal of Chinese Society for Corrosion and Protection. 29(2009) 187-190.

[12] O. Yepez, Influence of different sulfur compounds on corrosion due to naphthenic acid, Fuel. 84(2005) 97-104.

DOI: 10.1016/j.fuel.2004.08.003

[13] W. Zhang, Mechanism, factors and control method of Naphthenic acid corrosion in oil refining system, Materials Protection. 43(2010) 41-44.

[14] M.F. Wang, G.D. Li, N. Du, Effect of surface roughness on initial pitting corrosion behavior of 304 stainless steel, Failure Analysis and Prevention. 7(2012) 86-90.

[15] C.N. Cao, Principle of corrosion electrochemistry, third ed., Chemical Industry Press, Peking, (2008).

[16] H.H. Ge, G.D. Zhou, W.Q. Wu, The spontaneous passivation of stainless steel in simulated cooling water and the influence of sulfide, Acta Physico-chimica Sinica. 19(2003) 403-407.
