Study on Direct Reduction of Vanadium Slag

Neng Wei Wang; Guo Wei Li; Min Xian Fang

doi:10.4028/www.scientific.net/MSF.815.254

Paper Titles

Effect of Thickness on Mechanically Tunable Magnetic Anisotropy of FeGa Thin Films Deposited on Flexible Substrates
p.227

Advances on FeCuNbSiB Nanocrystalline Soft Magnetic Powder Cores
p.233

Preparation and Characterization of Mesoporous Sulfated TiO₂-Graphene Oxide Composites
p.241

Features of Different Types of V-Ti Iron Concentrate Powder and their Influences on the Properties of Cold-Bonded Iron Ore Pellets
p.248

Study on Direct Reduction of Vanadium Slag
p.254

Characterization of Hot Deformation Behavior of TC18 Titanium Alloy
p.263

Effects of Electroless Nickel on Hydrogen Absorption Properties of Zr-V-Fe Powders
p.268

Preparation and Magnetic Properties of Nanocrystal Bulk SmCo₇ Magnets
p.276

Study on the Magnetic Properties and Microstructure of Single-Stage Hot-Deformed Nd-Fe-B Magnets
p.281

HomeMaterials Science ForumMaterials Science Forum Vol. 815Study on Direct Reduction of Vanadium Slag

Study on Direct Reduction of Vanadium Slag

Abstract:

In this paper the process of direct reduction of vanadium slag was adopted. The main factor was determined by uniform experimental design and single factor analysis, and then the optimum process condition was drawn by the test. The test results showed that the regression equation curve fitting of the experiment data was very significant, the main factors affecting the vanadium slag reduction (according to the primary and secondary order) was the content of anhydrous sodium carbonate, roasting temperature, roasting time and reduction of carbon content. The factors for the reduction of the optimum process conditions are the carbon coefficient 1.04, roasting temperature 1100°C, roasting reduction time 4h, 4% mass percent of anhydrous sodium carbonate and slag. Under the optimum conditions, the actual rate of weight loss and theory rate of weight were close to 0, the results could be reproduced, and the vanadium slag metallization rate was 75%~83%.

You might also be interested in these eBooks

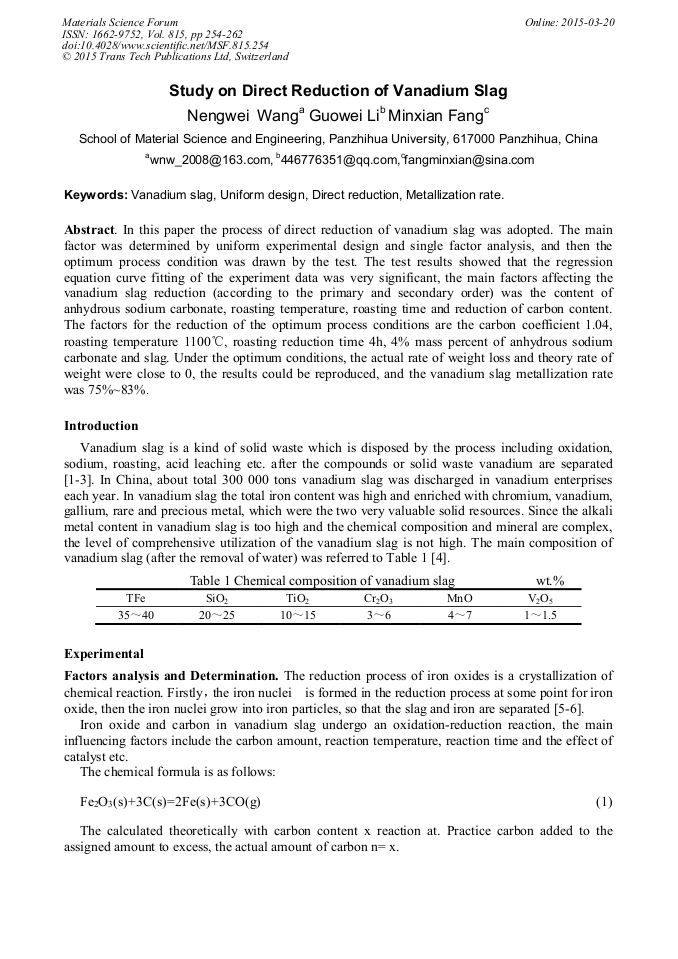

View Preview

Info:

Periodical:

Materials Science Forum (Volume 815)

Pages:

254-262

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.815.254

Citation:

Cite this paper

Online since:

March 2015

Authors:

Neng Wei Wang*, Guo Wei Li, Min Xian Fang

Keywords:

Direct Reduction, Metallization Rate, Uniform Design, Vanadium Slag

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Hao Jian-zhang, Liu An-qiang. Utilization of Wastes Produced in The Production Process of Vanadium[J]. China Resources Comprehensive Utilization, Vol. 27(2009), pp.7-10.

Google Scholar

[2] Yang H F, Jing L L, Zhang B G. Recovery of iron from vanadium tailings with coal-based direct reduction followed by magnetic separation[J]. Journal of Hazardous Materials, Vol. 185 (2011), pp.1405-1411.

DOI: 10.1016/j.jhazmat.2010.10.062

Google Scholar

[3] Hao Jian-zhang，Liu An-qiang，Ma Ming-long. Research of Vanadium Tailings Based Far-Infrared Radiation Coatings[J]. Paint＆coatings industry. Vol. 39(2009), pp.13-15.

Google Scholar

[4] Xiu Da-peng，Cao Shu-liang，Shi Yan-ling etc., Techniques of making vanadium and titanium black porcelain and its application in modern industry [J]. China ramics, Vol. 44 (2008), pp.42-43. 期刊呢.

Google Scholar

[5] Feng Qi-ming，He Dong-sheng，Zhang Guo-fan，etc. Effect of vanadium oxidation and conversion on vanadium leaching in extraction process of vanadium from stone coal[J], The Chinese Journal of Nonferrous Metals. Vol. 17(2007), pp.1348-1352.

Google Scholar

[6] Qiu Ting-sheng Luo Xian-ping Fang Xi-hui, Study on Depression Behavior and Oxidation Mechanism of Pyrite[J]. Multipurpose Utilization of Mineral Resources, Vol. 5(21): pp.20-24.

Google Scholar
