Microstructure and Thermal Properties of PET/POSS Composites Prepared by In Situ Polymerization

Abstract:

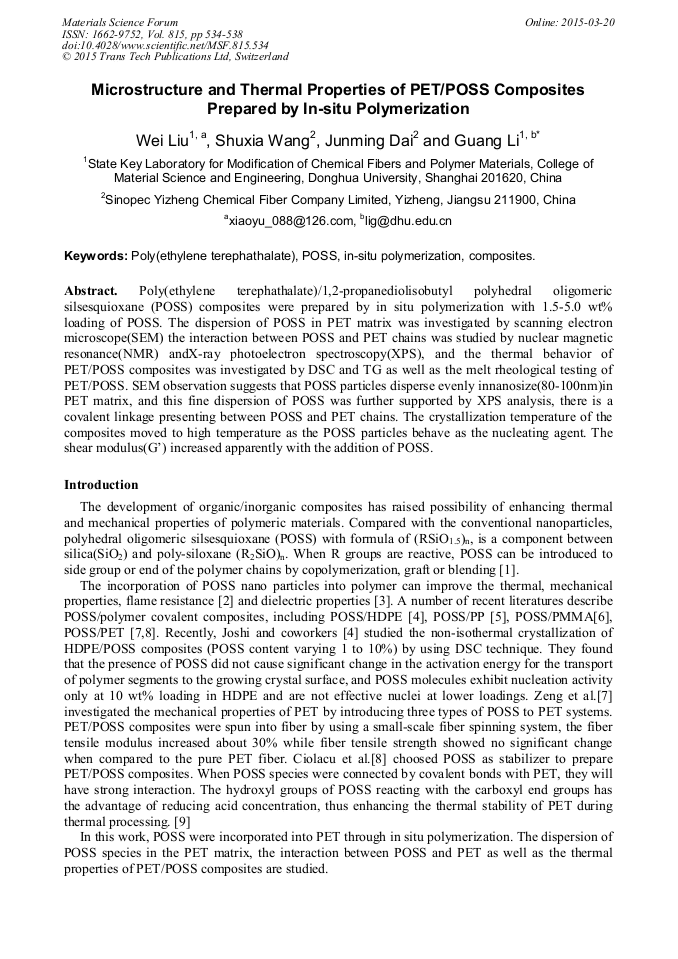

Poly(ethylene terephathalate)/1,2-propanediolisobutyl polyhedral oligomeric silsesquioxane (POSS) composites were prepared by in situ polymerization with 1.5-5.0 wt% loading of POSS. The dispersion of POSS in PET matrix was investigated by scanning electron microscope(SEM) the interaction between POSS and PET chains was studied by nuclear magnetic resonance(NMR) andX-ray photoelectron spectroscopy(XPS), and the thermal behavior of PET/POSS composites was investigated by DSC and TG as well as the melt rheological testing of PET/POSS. SEM observation suggests that POSS particles disperse evenly innanosize(80-100nm)in PET matrix, and this fine dispersion of POSS was further supported by XPS analysis, there is a covalent linkage presenting between POSS and PET chains. The crystallization temperature of the composites moved to high temperature as the POSS particles behave as the nucleating agent. The shear modulus(G’) increased apparently with the addition of POSS.

• Periodical: Materials Science Forum (Volume 815)
• Pages: 534-538
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.815.534
• Online since: March 2015
• Authors: Wei Liu, Shu Xia Wang, Jun Ming Dai, Guang Li*
• Keywords: Composites, In Situ Polymerization, Poly(Ethylene Terephathalate), POSS

References

[1] H.U. Kim, Y.H. Bang, and S.M. Choi, Morphology and mechanical properties of PET by incorporation of amine-polyhedral oligomeric silsesquioxane, Compos. Sci. Technol 68(13) (2008) 2739-2794.

DOI: 10.1016/j.compscitech.2008.05.020

[2] S. Bourbigot, T. Turf and S. Bellayer, Polyhedral oligomeric silsesquioxane as flame retardant for thermoplastic polyurethanePolym. Degrad. Stabil. 94(8) (2009) 1230-1237.

DOI: 10.1016/j.polymdegradstab.2009.04.016

[3] C.M. Leu, G.M. Reddy K.H. Wei, et al, Polyimide-Side-Chain Tethered Polyhedral Oligomeric Silsesquioxane Nanocomposites for Low-Dielectric Film Applications, Chem. Mater. 15(11) (2003) 2261-2265.

DOI: 10.1021/cm0208408

[4] M. Joshi B.S. Butola, Studies on nonisothermal crystallization of HDPE/POSS nanocomposites Polymer. 45(14) (2004) 4953-4968.

DOI: 10.1016/j.polymer.2004.04.057

[5] A. Fina, H.C.L. Abbenhuis, D. Tabuani, et al, Metal functionalized POSS as fire retardants in polypropylenePolym. Degrad. Stabil. 91(10) (2006)2275-2281.

DOI: 10.1016/j.polymdegradstab.2006.04.014

[6] C.F. Huang, S.W. Kuo, F.J. Lin, et al, Influence of PMMA-Chain-End Tethered Polyhedral Oligomeric Silsesquioxanes on the Miscibility and Specific Interaction with Phenolic Blends Macromolecules. 39(1) (2006) 300-308.

DOI: 10.1021/ma051923n

[7] J. Zeng, S. Kumar, S. Iyer, et al, Reinforcement of Poly(ethylene terephthalate)Fibers with Polyhedral Oligomeric Silsesquioxanes(POSS) High. Perform. Polym. 17(3) (2005)403-424.

DOI: 10.1177/0954008305055562

[8] F.C.L. Ciolacu, N.R. Choudhury, N. Dutta, et al, Molecular Level Stabilization of Poly(ethylene terephthalate) with Nanostructured Open Cage Trisilanolisobutyl-POSS Macromolecules. 40(2) (2007)265-272.

DOI: 10.1021/ma061060d

[9] J.F. Lacoste, L.V. Bounor, M.F. Llauro, et al, Functionalization of Poly(ethylene terephthalate) in theMelt State: Chemical and Rheological Aspects, J. Polym. Sci., Polym. Chem. 43(11) (2005) 2207-2222.

DOI: 10.1002/pola.20696
