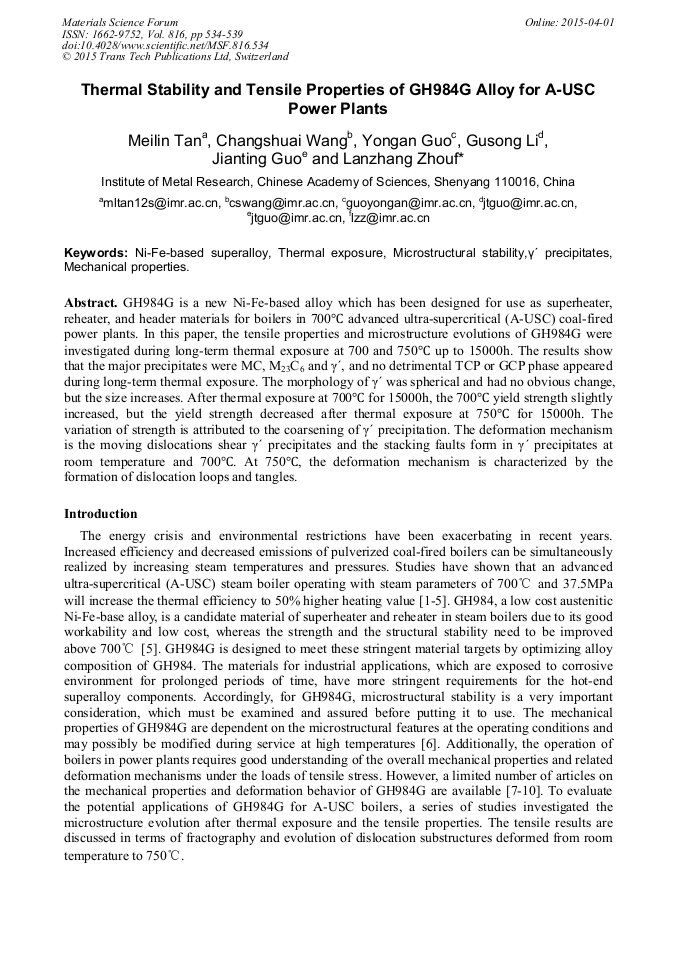

Thermal Stability and Tensile Properties of GH984G Alloy for A-USC Power Plants

Abstract:

GH984G is a new Ni-Fe-based alloy which has been designed for use as superheater, reheater, and header materials for boilers in 700°C advanced ultra-supercritical (A-USC) coal-fired power plants. In this paper, the tensile properties and microstructure evolutions of GH984G were investigated during long-term thermal exposure at 700 and 750°C up to 15000h. The results show that the major precipitates were MC, M₂₃C₆ and γ ́, and no detrimental TCP or GCP phase appeared during long-term thermal exposure. The morphology of γ ́ was spherical and had no obvious change, but the size increases. After thermal exposure at 700°C for 15000h, the 700°C yield strength slightly increased, but the yield strength decreased after thermal exposure at 750°C for 15000h. The variation of strength is attributed to the coarsening of γ ́ precipitation. The deformation mechanism is the moving dislocations shear γ ́ precipitates and the stacking faults form in γ ́ precipitates at room temperature and 700°C. At 750°C, the deformation mechanism is characterized by the formation of dislocation loops and tangles.

• Periodical: Materials Science Forum (Volume 816)
• Pages: 534-539
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.816.534
• Online since: April 2015
• Authors: Mei Lin Tan*, Chang Shuai Wang, Yong An Guo, Gu Song Li, Jian Ting Guo, Lan Zhang Zhou
• Keywords: Mechanical Properties, Microstructural Stability, Ni-Fe-Based Superalloy, Thermal Exposure, γ Precipitates

References

[1] Evans ND, Maziasz PJ, Swindeman RW, Smith GD, Microstructure and phase stability in INCONEL alloy 740 during creep, Scripta. Mater. 51(2004) 503.

DOI: 10.1016/j.scriptamat.2004.05.047

[2] Rosler J, GottingM, Del Genovese D, Wrought Ni-base superalloys for steam turbine applications beyond 700 degrees C, Adv. Eng. Mater. 7(2003) 469.

DOI: 10.1002/adem.200310083

[3] Viswanathan V, Purgert R, Rawls P, Coal-fired power materials, Adv. Mater. Pro. 8(2008) 47.

[4] R. Blum. Advanced (700℃) PF Power Plant, EC Contact No SF/1001/97/DK (1997).

[5] S.Q. Zhao, X.S. Xie, G.D. Smith, and S.J. Patel, High temperature corrosion of superheater tube materials in pulverized coal-fired environment, Mater. Sci. Eng. 355(2003) 96.

[6] Wu Q, Song H, Swindeman RW, Shingledecker JP, Vasudevan VK, Microstructure of long-term aged IN617Ni-base superalloy, Metall. Mater. Trans. 39(2008) 2569-2585.

DOI: 10.1007/s11661-008-9618-y

[7] J.T. Guo and X. K. Du, A superheater tube superalloy GH2984 with excellent properties. Acta. Metal. Sin. 41(2005) 1221-1227.

[8] T.T. Wang, C.S. Wang, J.T. Guo and L.Z. Zhou, Stability of microstructure and mechanical properties of GH984G alloy during long-term thermal exposure, Mater. Sci. Forum. 747(2013) 647.

DOI: 10.4028/www.scientific.net/msf.747-748.647

[9] C.S. Wang, T.T. Wang, M.L. Tan, Y.A. Guo, J.T. Guo and L.Z. Zhou, Thermal stability of a new Ni-Fe -Cr base alloy with different Ti/Al ratios Mater. Res. Innov. Vol. 18(2014) 4-1.

DOI: 10.1016/j.jmst.2014.07.008

[10] X. Xiao, H.Q. Zhao, C.S. Wang, Y.A. Guo, J.T. Guo and L.Z. Zhou, The effect of B and P microalloying on microstructure and mechanical properties of GH984 alloy, Acta. Metall. Sin. 49(2013) 421.

DOI: 10.3724/sp.j.1037.2013.00002

[11] M.L. Tan, C.S. Wang, Y.A. Guo, J.T. Guo and L.Z. Zhou: Influence of Ti/Al ratios on γ´ coarsening behavior tensile properties GH984G alloy during long-term thermal exposure, Acta. Metall. Sin. (2014).

DOI: 10.1016/j.matdes.2014.05.020

[12] M. Condat and B. Decamps, Shearing of gamma' precipities by single a/2 (110) matrix dislocations in a gamma/gamma' Ni-based superalloy, Scripta Metal, 21(1987) 607.

DOI: 10.1016/0036-9748(87)90369-3
