Thermodynamics of Amorphous Silicon Oxides in Sub-Rapid Solidified Low Carbon Steel

Abstract:

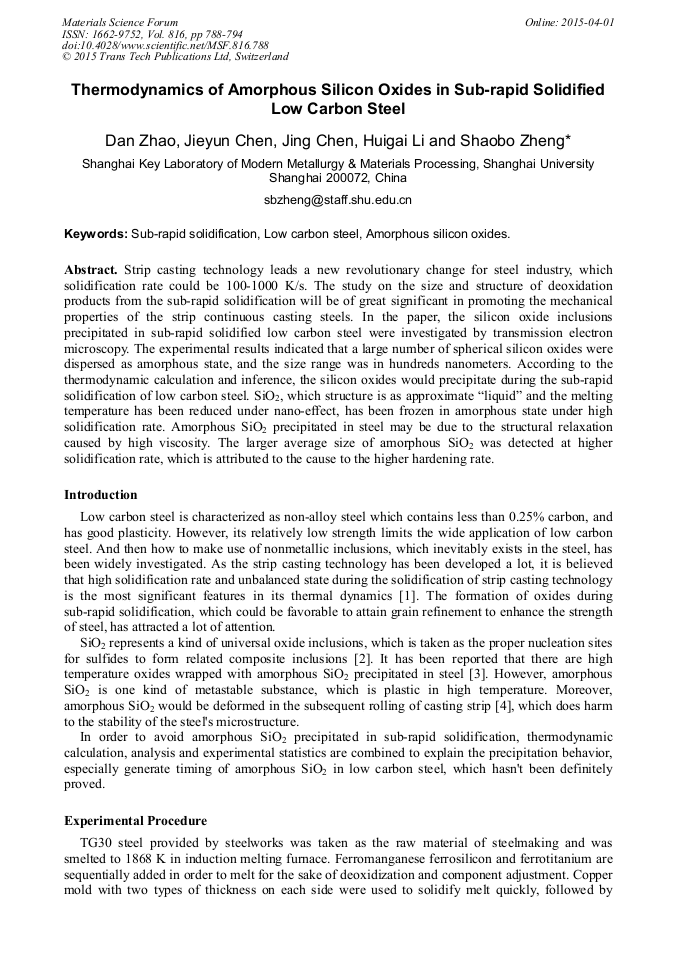

Strip casting technology leads a new revolutionary change for steel industry, which solidification rate could be 100-1000 K/s. The study on the size and structure of deoxidation products from the sub-rapid solidification will be of great significant in promoting the mechanical properties of the strip continuous casting steels. In the paper, the silicon oxide inclusions precipitated in sub-rapid solidified low carbon steel were investigated by transmission electron microscopy. The experimental results indicated that a large number of spherical silicon oxides were dispersed as amorphous state, and the size range was in hundreds nanometers. According to the thermodynamic calculation and inference, the silicon oxides would precipitate during the sub-rapid solidification of low carbon steel. SiO₂, which structure is as approximate “liquid” and the melting temperature has been reduced under nanoeffect, has been frozen in amorphous state under high solidification rate. Amorphous SiO₂ precipitated in steel may be due to the structural relaxation caused by high viscosity. The larger average size of amorphous SiO₂ was detected at higher solidification rate, which is attributed to the cause to the higher hardening rate.

• Periodical: Materials Science Forum (Volume 816)
• Pages: 788-794
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.816.788
• Online since: April 2015
• Authors: Dan Zhao, Jie Yun Cheng, Jing Chen, Hui Gai Li, Shao Bo Zheng*
• Keywords: Amorphous Silicon Oxides, Low Carbon Steel, Sub-Rapid Solidification

References

[1] C.R. Killmore, H. Creely, A. Phillips, H. Kaul, P. Campbell, M. Schueren, J.G. Williams, W. Blejde, Materials. 32(2008) 13-28.

[2] Z.Z. Liu, Y. Kobayashi, K. Nagai, Materials Transactions. 45(2004) 479-487.

[3] C. Liu, S.J. Zheng, B. Zhang, X.L. Ma, Journal of Chinese Electron Microscopy Society. 27(2008) 300-305.

[4] Z.J. Deng, P.H. Li, Physics Examination and Testing. 23(2005) 39-44.

[5] P.G. Xu, F. Yin, G.K. Na, Materials Science and Engineering A. 441(2006) 157-166.

[6] J.X. Chen, Handbook of common diagram and data for steelmaking. ( Metallurgy Industry Press, Chinese 1984).

[7] X.G. Huang, Theory of Metallurgy. ( Metallurgical Industry Press, Chinese 1998 ).

[8] S.S. Babu, S.A. David, J.M. Vitek, K. Mundra, T. DebRoy, Material Science and Technology. 11(1995) 186-199.

[9] I. Barin, F. Sauert, Thermochemical data of pure substances. ( University of Chicago Press, Turkey 2003).

[10] R. Sakagami, C. Kawasaki, I. Suzuki, K. Sato, The Iron and Steel Institute of Japan. 55(1969) 550-575.

[11] S.R. Elliott, Physics of Amorphous Materials, 2nd ed. Longman Scientific and Technical. New York (1990).

[12] J.C.A. Vreeswijk, R.G. Gossink, J.M. Stevels, J. Non-Cryst. Solids. 16(1974) 15-26.

[13] P.G. Debenedetti, F.H. Stillinger, Nature. 410(2001) 259-267.
