Microstructures and Mechanical Properties of High Strength Low Carbon Bainitic Steel

Abstract:

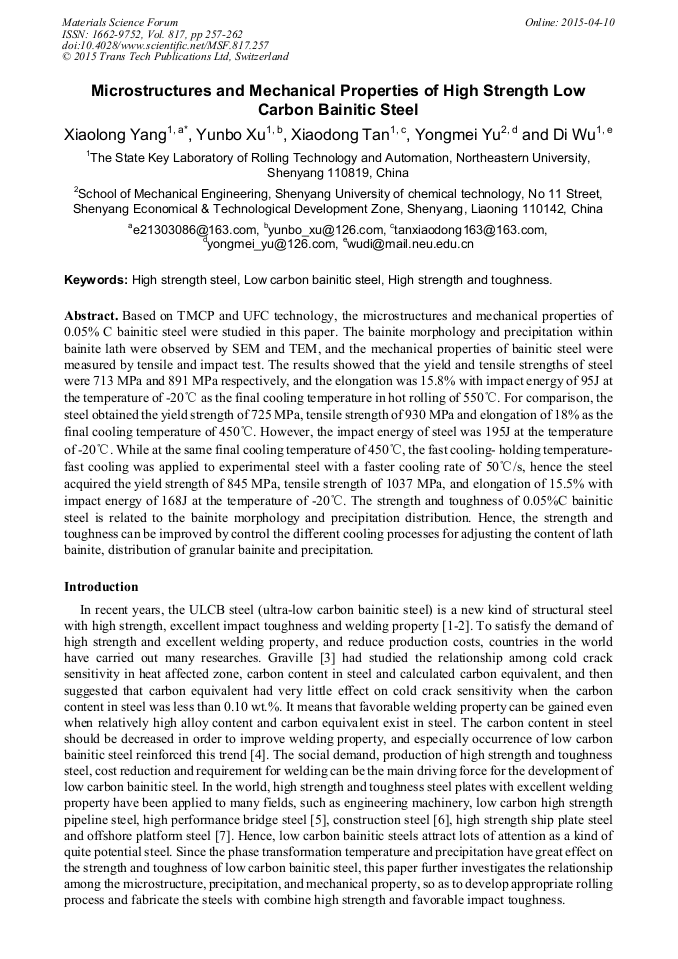

Based on TMCP and UFC technology, the microstructures and mechanical properties of 0.05% C bainitic steel were studied in this paper. The bainite morphology and precipitation within bainite lath were observed by SEM and TEM, and the mechanical properties of bainitic steel were measured by tensile and impact test. The results showed that the yield and tensile strengths of steel were 713 MPa and 891 MPa respectively, and the elongation was 15.8% with impact energy of 95J at the temperature of-20°C as the final cooling temperature in hot rolling of 550°C. For comparison, the steel obtained the yield strength of 725 MPa, tensile strength of 930 MPa and elongation of 18% as the final cooling temperature of 450°C. However, the impact energy of steel was 195J at the temperature of-20°C. While at the same final cooling temperature of 450°C, the fast cooling-holding temperature-fast cooling was applied to experimental steel with a faster cooling rate of 50°C/s, hence the steel acquired the yield strength of 845 MPa, tensile strength of 1037 MPa, and elongation of 15.5% with impact energy of 168J at the temperature of-20°C. The strength and toughness of 0.05%C bainitic steel is related to the bainite morphology and precipitation distribution. Hence, the strength and toughness can be improved by control the different cooling processes for adjusting the content of lath bainite, distribution of granular bainite and precipitation.

• Periodical: Materials Science Forum (Volume 817)
• Pages: 257-262
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.817.257
• Online since: April 2015
• Authors: Xiao Long Yang*, Yun Bo Xu, Xiao Dong Tan, Yong Mei Yu, Di Wu
• Keywords: High Strength, High Strength Steel, Low Carbon Bainitic Steel, Toughness

References

[1] B. Hwang, C.G. Lee, S. -J. Kim, Low-temperature toughening mechanism in thermomechanically processed high-strength low-alloy steels, Metall. Mater. Trans. A. 42A (2011) 717-728.

DOI: 10.1007/s11661-010-0448-3

[2] B. Hwang, C.G. Lee, T. -H. Lee, Correlation of microstructure and mechanical properties of thermomechanically processed low-carbon steels containing boron and copper, Metall. Mater. Trans. A. 41A (2010) 85-96.

DOI: 10.1007/s11661-009-0070-4

[3] R.B. Lazor, B.A. Graville, Effect of microalloying on weld cracking in low carbon steels, Pipeline and Energy Plant Piping. (1980) 247-254.

DOI: 10.1016/b978-0-08-025368-8.50030-0

[4] J.R. Yang, C.Y. Huang, S.C. Wang, The development of ultra-low bainitic steels, Mater. Des. 13 (1992) 335-338.

[5] K. Nishimura, K. Matsui, N. Tsumura, High performance steel plates for bridge construction – high strength steel plates with excellent weldability realizing advanced design for rationalized fabrication of bridges, JFE Tech. 5 (2004) 25-30.

[6] Y. Watanabe, K. Ishibashi, K. Yoshii, Development of 590N/mm2 class steel with good weldability for building structures, Nippon Steel Technical Report. 380 (2004) 46-49.

[7] M. Hisata, T. Miyake, F. Kawabata, 420MPa yield strength steel plate with superior fracture toughness for arctic offshore structures, Kawasaki Steel Technical Report. 30 (1998) 142-147.

[8] J. Chen, S. Tang, Z. -Y. Liu, G. -D. Wang, Microstructural characteristics with various cooling paths and the mechanism of embrittlement and toughening in low-carbon high performance bridge steel, Mater. Sci. Eng., A. 559 (2013) 241–249.

DOI: 10.1016/j.msea.2012.08.091

[9] X.L. Yang, Y.B. Xu, X.D. Tan, D. Wu, Influences of crystallography and delamination on anisotropy of Charpy impact toughness in API X100 pipeline steel, Mater. Sci. Eng., A. 607 (2014) 53–62.

DOI: 10.1016/j.msea.2014.03.121

[10] X.D. Tan, Y.B. Xu, X.L. Yang, Z.Q. Liu, D. Wu, Effect of partitioning procedure on microstructure and mechanical properties of a hot-rolled directly quenched and partitioned steel, Mater. Sci. Eng., A. 594 (2014) 149-160.

DOI: 10.1016/j.msea.2013.11.064
