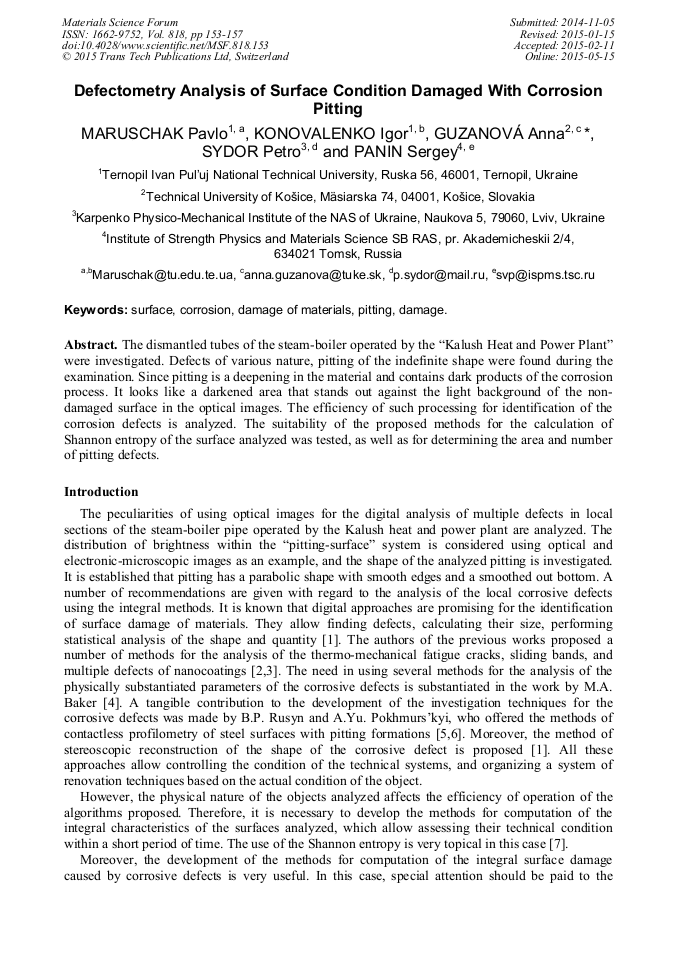

Defectometry Analysis of Surface Condition Damaged with Corrosion Pitting

Abstract:

The dismantled tubes of the steam-boiler operated by the “Kalush Heat and Power Plant” were investigated. Defects of various nature, pitting of the indefinite shape were found during the examination. Since pitting is a deepening in the material and contains dark products of the corrosion process. It looks like a darkened area that stands out against the light background of the non-damaged surface in the optical images. The efficiency of such processing for identification of the corrosion defects is analyzed. The suitability of the proposed methods for the calculation of Shannon entropy of the surface analyzed was tested, as well as for determining the area and number of pitting defects.

• Periodical: Materials Science Forum (Volume 818)
• Pages: 153-157
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.818.153
• Online since: May 2015
• Authors: Pavlo Maruschak, Igor Konovalenko, Anna Guzanová*, Petro Sydor, Sergey Panin
• Keywords: Corrosion, Damage, Damage of Materials, Pitting, Surface

References

[1] B. P. Rusyn, N.P. Anufrieva, N.R. Hrabovs'ka, V.H. Ivanyuk Nondestructive testing of the state of surfaces damaged by corrosion pitting, Mat. Sci. 49 (2014) 516-524.

DOI: 10.1007/s11003-014-9644-4

[2] P. Maruschak, I. Konovalenko Formation of localised deformational structures and quasi-brittle fracture of steel 25Kh1M1F with a network of thermal fatigue cracks, Proc. of the 7-th Int. Conf. «Intelligent Technologies in Logistics and Mechatronics Systems» (May 03-04), Panevėžys, Lithuania, 2012, 126-130.

[3] P. Maruschak, V. Gliha, I. Konovalenko, T. Vuherer, S. Panin Physical regularities in the cracking of nanocoatings and a method for an automated determination of the crack-network parameters, Mat. in Tehnol. 46 (2012) 525–529.

[4] M.A. Baker The application of surface imaging techniques to the study of pitting corrosion initiation in stainless steels, Surf. Interface Anal. 20 (1993) 535–543.

DOI: 10.1002/sia.740200609

[5] B.P. Rusyn, Ya. Yu. Varets'kyi, Yu.V. Lysak, A. Yu. Pokhmurs'kyi Reconstruction and quantitative analysis of metallic surfaces with pits based on improved stereo image matching method, Mat. Sci. 47 (2011) 255-263.

DOI: 10.1007/s11003-011-9388-3

[6] A. Yu. Pokhmurs'kyi, B.P. Rusyn, Yu.V. Obukh Evaluation of the influence of pit-like defects on the strength of D16T sheet alloy, Mat. Sci. 48 (2012) 101-105.

DOI: 10.1007/s11003-012-9478-x

[7] T.R. Wojcik, D. Krapf Solid-state nanopore recognition and measurement using Shannon entropy, IEEE Phot. J. 3 (2011) 337–343.

DOI: 10.1109/jphot.2011.2129503

[8] K. Ranjbar Failure analysis of boiler cold and hot reheater tubes, Eng. Fail. Anal. 14 (2007) 620-625.

DOI: 10.1016/j.engfailanal.2006.03.007

[9] K.Y. Choi, S.S. Kim Morphological analysis and classification of types of surface corrosion damage by digital image processing, Corros. Sci. 47 (2005) 1–15.

DOI: 10.1016/j.corsci.2004.05.007

[10] D.Y. Kong, E. Cano, J.L. Polo, J.M. Bastidas Pitting corrosion of duplex and austenitic stainless steel using grey-scale image analysis, Corros. Prev. and Control. 51 (2004) 17-22.

[11] F. Daneshvar-Fatah, A. Mostafaei, R. Hosseinzadeh-Taghani, F. Nasirpouri Caustic corrosion in a boiler waterside tube: Root cause and mechanism, Eng. Fail. Anal. 28 (2013) 69-77.

DOI: 10.1016/j.engfailanal.2012.09.010
