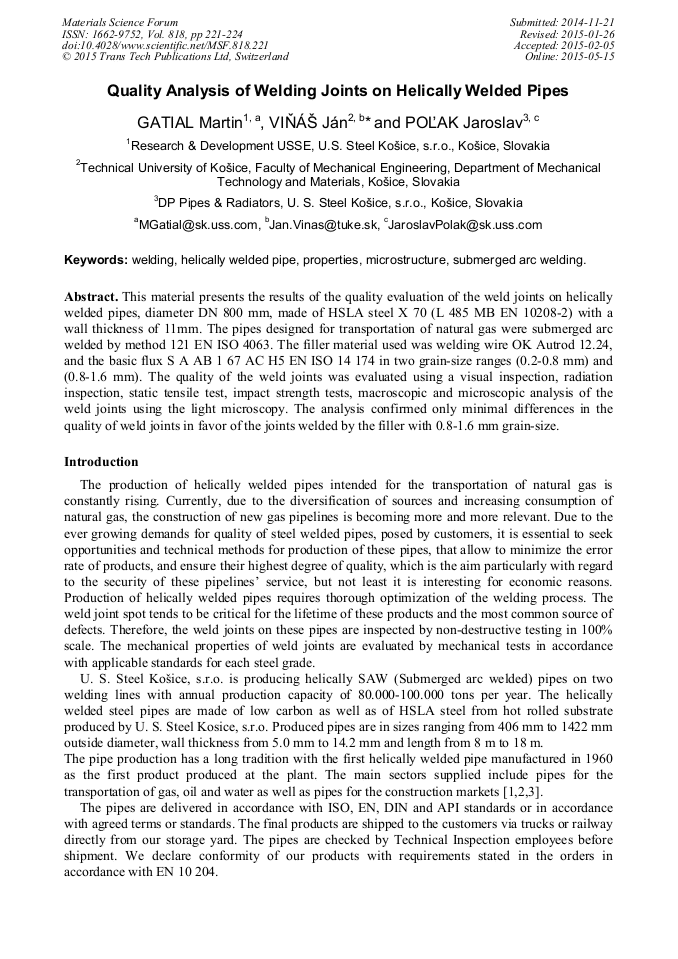

Quality Analysis of Welding Joints on Helically Welded Pipes

Abstract:

This material presents the results of the quality evaluation of the weld joints on helically welded pipes, diameter DN 800 mm, made of HSLA steel X 70 (L 485 MB EN 10208-2) with a wall thickness of 11mm. The pipes designed for transportation of natural gas were submerged arc welded by method 121 EN ISO 4063. The filler material used was welding wire OK Autrod 12.24, and the basic flux S A AB 1 67 AC H5 EN ISO 14 174 in two grain-size ranges (0.2-0.8 mm) and (0.8-1.6 mm). The quality of the weld joints was evaluated using a visual inspection, radiation inspection, static tensile test, impact strength tests, macroscopic and microscopic analysis of the weld joints using the light microscopy. The analysis confirmed only minimal differences in the quality of weld joints in favor of the joints welded by the filler with 0.8-1.6 mm grain-size.

• Periodical: Materials Science Forum (Volume 818)
• Pages: 221-224
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.818.221
• Online since: May 2015
• Authors: Martin Gatial, Ján Viňáš*, Jaroslav Poľak
• Keywords: Helically Welded Pipe, Microstructure, Properties, Submerged Arc Welding, Welding

References

[1] M. Bošeľa, Manufacture of spiral welded pipes from microalloyed steels in the East Slovakian Steelwork. Zváranie 23 (1974) 117-119. (in Slovak).

[2] A. Děkanovský, Weldable high strength steel for the manufacture of spiral welded pipes of the East Slovakian Steelwork. Zváranie 23 (1974) 99-103. (in Slovak).

[3] M. Bošeľa, V. Varga, J. Viňáš, F. Bernasovský, Properties of spiral welded pipes of steel grade KODUR X 80. Acta Mechanica Slovaca. 6 (2002) 181-186. (in Slovak).

[4] Š. Norko, Influence of the quality and the type of used flux on the weld joint in the production of pipes using submerged arc welding technology. Diploma thesis, TU Košice, 2013, 80 p. (in Slovak).
