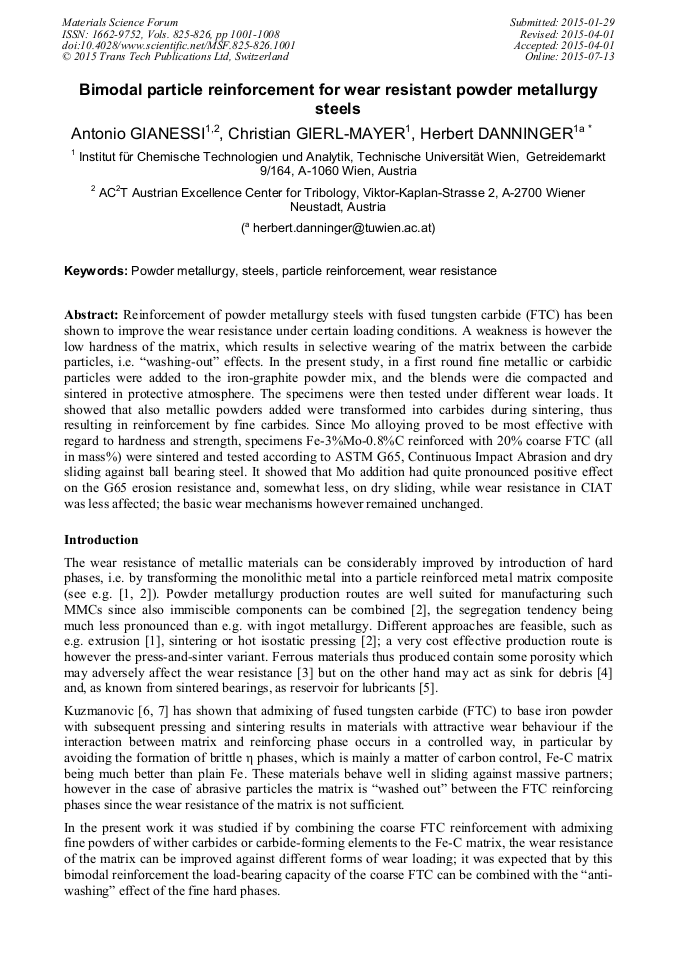

Bimodal Particle Reinforcement for Wear Resistant Powder Metallurgy Steels

Abstract:

Reinforcement of powder metallurgy steels with fused tungsten carbide (FTC) has been shown to improve the wear resistance under certain loading conditions. A weakness is however the low hardness of the matrix, which results in selective wearing of the matrix between the carbide particles, i.e. “washing-out” effects. In the present study, in a first round fine metallic or carbidic particles were added to the iron-graphite powder mix, and the blends were die compacted and sintered in protective atmosphere. The specimens were then tested under different wear loads. It showed that also metallic powders added were transformed into carbides during sintering, thus resulting in reinforcement by fine carbides. Since Mo alloying proved to be most effective with regard to hardness and strength, specimens Fe-3%Mo-0.8%C reinforced with 20% coarse FTC (all in mass%) were sintered and tested according to ASTM G65, Continuous Impact Abrasion and dry sliding against ball bearing steel. It showed that Mo addition had quite pronounced positive effect on the G65 erosion resistance and, somewhat less, on dry sliding, while wear resistance in CIAT was less affected; the basic wear mechanisms however remained unchanged.

• Periodical: Materials Science Forum (Volumes 825-826)
• Pages: 1001-1008
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.825-826.1001
• Online since: July 2015
• Authors: Antonio Gianessi, Christian Gierl-Mayer, Herbert Danninger*
• Keywords: Particle Reinforcement, Powder metallurgy, Steels, Wear Resistance

References

[1] K. Milos et al.: Mechanical properties and dry sliding wear behaviour of extruded Al-Al2O3 composites, Powder Metall. Progress 9 No. 4 (2009) 191-204.

[2] J.M. Torralba, E. Gordo, PM high speed steel composites. State of the art, Powder Metall. Progress 2 (2002) 1-9.

[3] J. Wang, H. Danninger, Dry sliding wear behaviour of molybdenum alloyed sintered steels, Wear 222 (1998) 49-56.

DOI: 10.1016/s0043-1648(98)00279-8

[4] S.C. Lim, H. Brunton, The unlubricated wear of sintered iron, Wear 113 (1986) 371-382.

DOI: 10.1016/0043-1648(86)90035-9

[5] G. Hoffmann et al., Testing P/M materials for high loading gear applications, Int. J. Powder Metall. 35 No. 6 (1999) 35-44.

[6] J. Kuzmanović, WC-W2C particle reinforced powder metallurgy iron and nickel matrix composites produced by pressing and sintering, MSc thesis, Technische Universität Wien (2011).

[7] J. Kuzmanović et al., Preparation and properties of sintered Fe and Ni based MMCs reinforced with fused tungsten carbide particles, Powder Metall. Progress 12 No. 2 (2012) 84-97.

[8] H. Danninger, Sintering of Mo alloyed P/M steels prepared from elemental powders. II. Mo homogenization and dimensional behaviour, Powder Metall. Int. 24 No. 3 (1992) 163-168.

[9] M. Kirchgaßner, E. Badisch, F. Franek, Behaviour of iron-based hardfacing alloys under abrasion and impact, Wear 265 (2008) 772-779.

DOI: 10.1016/j.wear.2008.01.004

[10] H. Danninger, E. Wolfsgruber, K. Dalal, Sintering and Microstructure of PM Valve Seat Insert Materials, Proc. PM'94 Paris, SF2M ed., Les Ulis (1994) Vol. 2, 875-878.

[11] H. Danninger; O.Z. Zengin, Sintering and Properties of Cr, Mo and W Alloyed P/M Steels, Modern Dev. in Powder Metall. 20 (4)(1988) 171-182.

[12] H. Danninger et al., Comparison of Mn, Cr, and Mo alloyed sintered steels prepared from elemental powders, Powder Metall. 48 No. 1 (2005) 23-32.

DOI: 10.1179/003258905x37567

[13] R.M. German, Particle Packing Characteristics, MPIF, Princeton NJ, (1989).

[14] H. Danninger, G. Gelbmann, G. Straffelini, Impact response of Mo prealloyed sintered steels determined by instrumented testing, Powder Metall. Progress 12 No. 2 (2012) 53-70.
