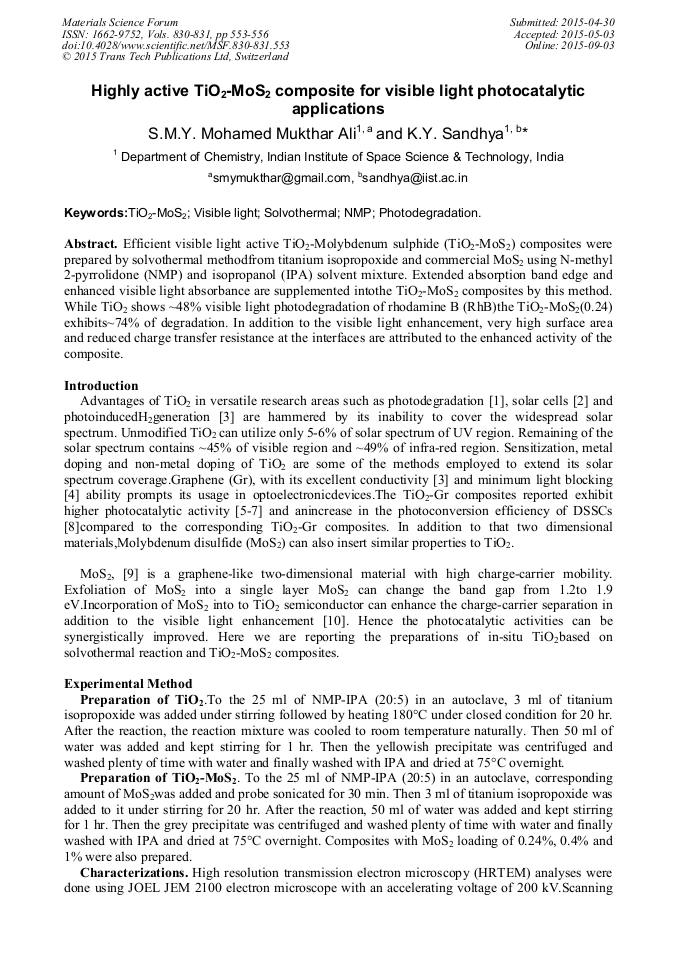

Highly Active TiO₂-MoS₂ Composite for Visible Light Photocatalytic Applications

Abstract:

Efficient visible light active TiO₂-Molybdenum sulphide (TiO₂-MoS₂) composites were prepared by solvothermal methodfrom titanium isopropoxide and commercial MoS₂ using N-methyl 2-pyrrolidone (NMP) and isopropanol (IPA) solvent mixture. Extended absorption band edge and enhanced visible light absorbance are supplemented intothe TiO₂-MoS₂ composites by this method. While TiO₂ shows ~48% visible light photodegradation of rhodamine B (RhB) the TiO₂-MoS₂(0.24) exhibits~74% of degradation. In addition to the visible light enhancement, very high surface area and reduced charge transfer resistance at the interfaces are attributed to the enhanced activity of the composite.

• Periodical: Materials Science Forum (Volumes 830-831)
• Pages: 553-556
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.830-831.553
• Online since: September 2015
• Authors: S.M.Y. Mohamed Mukthar Ali, K.Y. Sandhya*
• Keywords: NMP, Photodegradation, Solvothermal, TiO₂-MoS₂, Visible Light

References

[1] M. Mukthar Ali, K.Y. Sandhya, Visible light responsive titanium dioxide–cyclodextrin–fullerene composite with reduced charge recombination and enhanced photocatalytic activity, Carbon 70 (2014) 249-257.

DOI: 10.1016/j.carbon.2014.01.003

[2] F. Gao, Y. Wang, J. Zhang, D. Shi, M. Wang, R. Humphry-Baker, P. Wang, S.M. Zakeeruddin, M. Gratzel, A new heteroleptic ruthenium sensitizer enhances the absorptivity of mesoporoustitania film for a high efficiency dye-sensitized solar cell, Chem. Comm. 23 (2008).

DOI: 10.1039/b802909a

[3] K. S. Novoselov, A. K. Geim, S. V. Morozov, D. Jiang, M. I. Katsnelson, I. V. Grigorieva, S.V. Dubonos, A.A. Firosv, Twodimensionalgas of massless Dirac fermions in graphene, Nature 438 (2005) 197-200.

DOI: 10.1038/nature04233

[4] R. R. Nair, P. Blake, A. N. Grigorenko, K. S. Novoselov, T. J. Booth, T. Stauber, N.M.R. Peres, A.K. Geim, Fine structure constant defines visual transparency of graphene, Science 320 (2008) 1308.

DOI: 10.1126/science.1156965

[5] B. Liu, Y. Huang, Y. Wen, L. Du, W. Zeng, Y. Shi, F. Zhang, G. Zhu, X. Xu, Y. Wang. Highly dispersive {001} facets-exposednanocrystalline TiO2 on high quality graphene as a high performance photocatalyst, Journal of Material Chemistry 22 (2012).

DOI: 10.1039/c2jm16114a

[6] T. Lu, R. Zhang, Q. Hu, C. Hu, F. Chen, S. Duo, TiO2–graphene 25 composites with exposed {001} facets produced by a one-potsolvothermal approach for high performance photocatalyst. Physical, Chemistry Chemical Physics 15(2013) 12963-12970.

DOI: 10.1039/c3cp50942g

[7] B. Jiang, C. Tian, Q. Pan, Z. Jiang, J.Q. Wang, W. Yan, H. Fu, Enhanced photocatalytic activity and electron transfer mechanisms ofgraphene/TiO2with exposed {001} facets. Journal of Physical Chemistry C, 115 (2011) 23718-23725.

DOI: 10.1021/jp207624x

[8] L. Sun, Z. Zhao, Y. Zhou, L. Liu. Anatase TiO2nanocrystals withexposed {001} facets on graphene sheets via molecular grafting for enhanced photocatalytic activity, Nanoscale 4 (2012) 613-620.

DOI: 10.1039/c1nr11411e

[9] T. Li, G. Galli, Electronic Properties of MoS2 Nanoparticles, J. Phys. Chem. C 111 (2007) 16192-16196.

[10] S.M. Paek, H. Jung, M. Park, J.K. Lee, J.H. Choy, An Inorganic Nanohybrid with High Specific Surface Area: TiO2-Pillared MoS2, Chem. Mater. 17 (2005) 3492-3498.

DOI: 10.1021/cm0477220
