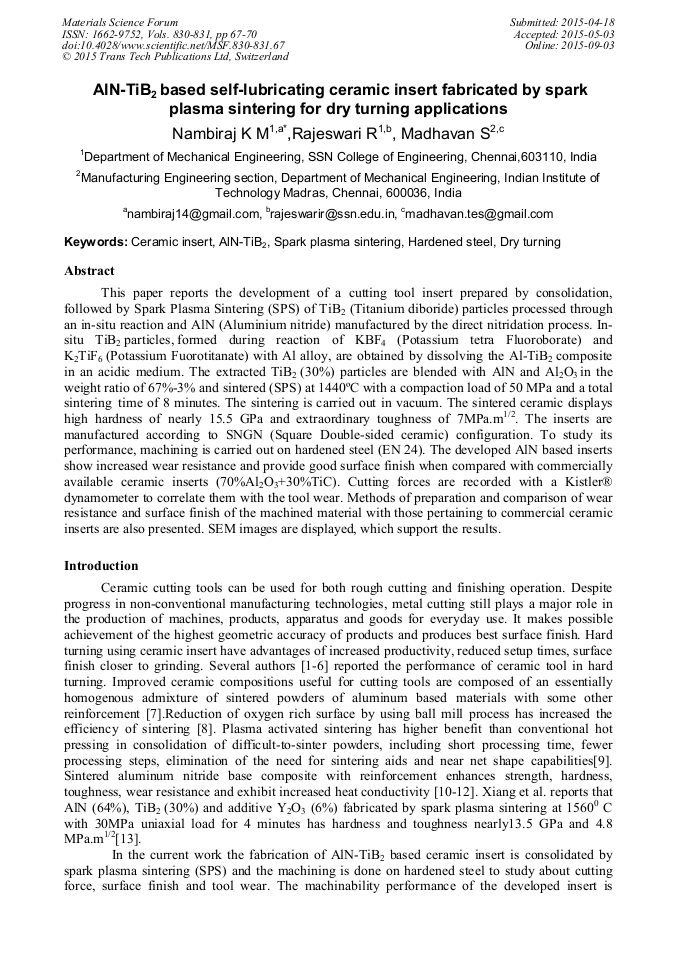

AlN-TiB₂ Based Self-Lubricating Ceramic Insert Fabricated by Spark Plasma Sintering for Dry Turning Applications

Abstract:

This paper reports the development of a cutting tool insert prepared by consolidation, followed by Spark Plasma Sintering (SPS) of TiB₂ (Titanium diboride) particles processed through an in-situ reaction and AlN (Aluminium nitride) manufactured by the direct nitridation process. In-situ TiB₂ particles, formed during reaction of KBF₄ (Potassium tetra Fluoroborate) and K₂TiF₆ (Potassium Fuorotitanate) with Al alloy, are obtained by dissolving the Al-TiB₂ composite in an acidic medium. The extracted TiB₂ (30%) particles are blended with AlN and Al₂O₃ in the weight ratio of 67%-3% and sintered (SPS) at 1440°C with a compaction load of 50 MPa and a total sintering time of 8 minutes. The sintering is carried out in vacuum. The sintered ceramic displays high hardness of nearly 15.5 GPa and extraordinary toughness of 7MPa.m^1/2. The inserts are manufactured according to SNGN (Square Double-sided ceramic) configuration. To study its performance, machining is carried out on hardened steel (EN 24). The developed AlN based inserts show increased wear resistance and provide good surface finish when compared with commercially available ceramic inserts (70%Al₂O₃+30%TiC). Cutting forces are recorded with a Kistler® dynamometer to correlate them with the tool wear. Methods of preparation and comparison of wear resistance and surface finish of the machined material with those pertaining to commercial ceramic inserts are also presented. SEM images are displayed, which support the results.

• Periodical: Materials Science Forum (Volumes 830-831)
• Pages: 67-70
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.830-831.67
• Online since: September 2015
• Authors: K.M. Nambiraj*, R. Rajeswari, S. Madhavan
• Keywords: AlN-TiB₂, Ceramic Insert, Dry Turning, Hardened Steel, Spark Plasma Sintering

References

[1] T. Obikawa, T. Matsumura, T. Shirakashi, E. Usui, Wear characteristic of alumina coated and alumina ceramic tools, J. Mater. Process Technology, 63 [1-3] (1997) 211-216.

DOI: 10.1016/s0924-0136(96)02626-x

[2] D. Errico GE, R. Calzavarini, R. Chiara, R. Morrell, L. Lay, performance of ceramic cutting tool in turning operations. In Ceramics; Charting the future, Techna. Srl, (1995) pp.2327-2334.

[3] Y.K. Chou, H. Song, Thermal modeling for white layer predictions in finish hard turning. Int. J Mach Tools Manuf. 45 [4-5] (2005) 481-495.

DOI: 10.1016/j.ijmachtools.2004.09.006

[4] W. Gresik, T. Wanat, comparative assessment of surface roughness produced by hard machining with mixed ceramic tools including 2D and 3D analysis, J Mater Process Technology, 169.

DOI: 10.1016/j.jmatprotec.2005.04.080

[3] (2005) 364-371.

[5] J. Paulo Davim, L. Figueira, Machinability evaluation in hard turning of cold work tool steel (D2) with ceramic tools using statistical techniques, Mater Design, 28.

DOI: 10.1016/j.matdes.2006.01.011

[4] (2007) 1186-1191.

[6] J.G. Lima, R.F. Avila, A.M. Abrao, M. Faustino, J. Paulo Davim, Hard turning: AISI 4340 high strength low alloy steel and AISI D2 cold work tool steel, J. Mater. Process. Technology, 169.

DOI: 10.1016/j.jmatprotec.2005.04.082

[3] (2005) 388-395.

[7] Stephen J. Burden, Troy and Mich, ceramic composition, United States Patent, 1983, Appl. No: 267, 043.

[8] T. Venkateswaran, Bikramjit Basu, Doh-Yoen Kim, Spark plasma sintering of TiB2 –Based composites, International Symposium of Research Students on Material Science and Engineering, Chennai, India, 2004, December 20-22.

[9] Jing Zhang, Antonios Zavaliangos, Joanna R. Groza, Field activated sintering techniques: A comparison and contrast, P/M Science &Tech. Briefs, 5.

[4] (2003) pp.5-8.

[10] Hidetoshi Baba, Hisashi Ito, sintered member of aluminum nitride base reinforced composite material, United States Patent, 1988, Appl. No: 906, 237.

[11] Sankar Daskupta, Rakesh Bhola, silicon nitride based cutting tool insert, United States Patent, 1995, Appl. No: 248, 672.

[12] Manoj Kumar Gupta, Pawan kumar Rakesh, Effects of Reinforced Particulates on Properties of Aluminium Metal Matrix Composite, AISECT University of Journal, Vol. III/Issue VI, (2014) ISSN: 2278-4187.

[13] Xiang-Yu Zhang, Shou-Hong Tan, Dong-Liang Jiang, AlN-TiB2 composites fabricated by spark plasma sintering, Ceramic International, 31 (2005) 267-270.

DOI: 10.1016/j.ceramint.2004.05.013

[14] K. Baba , N. Shohata, M. Yonezawa, Synthesis and properties of Ultrafine AlN powder by RF Plasma, Appl. Phys. Lett., 54.

DOI: 10.1063/1.101111

[23] (1989) 2309.

[15] M. Uda, W. Ohno, H. Okuyama, Preperation of Ultrafine Powders of AlN and (AlN + Al) by Nitrogen Plasma – Al Reaction, Yogyo-Kyokaishi, 95.

DOI: 10.2109/jcersj1950.95.86

[1] (1987) 76.
