Fatigue Failure of Hydroformed AISI 316L Stainless Steel Bellows

Sushant Manwatkar; S.V.S. Narayana Murty; P. Ramesh Narayanan

doi:10.4028/www.scientific.net/MSF.830-831.713

Paper Titles

Ultrasonic-Assisted Electroless Coating of Ni-B Alloy and Composites on Aluminum Alloy Substrates
p.687

Microstructure and Nanomechanical Behaviour of Electron Beam Evaporated Yttria Stabilized Zirconia Films on Ni Base Superalloy
p.691

Hot Corrosion Stability of Double Perovskite and Pyrochlore in Suphate Solution of Vanadates or Chlorides at 900 °C
p.695

Atomic Oxygen Resistant Polysiloxane Coatings for Low Earth Orbit Space Structures
p.699

Failure Analysis of AISI 302 Steel Compression Spring Used in Flush and Purge Valve of Liquid Engine
p.705

Failure Analysis of Ball-Bearing of Turbo-Pump Used in Liquid Rocket Engine
p.709

Fatigue Failure of Hydroformed AISI 316L Stainless Steel Bellows
p.713

Stress Corrosion Cracking of High Strength 18Ni-8Co-5Mo Maraging Steel Fasteners
p.717

Assessment of Theories of Failure for Multi-Directional Composites Laminates: A Fuzzy - AHP Approach
p.721

HomeMaterials Science ForumMaterials Science Forum Vols. 830-831Fatigue Failure of Hydroformed AISI 316L Stainless...

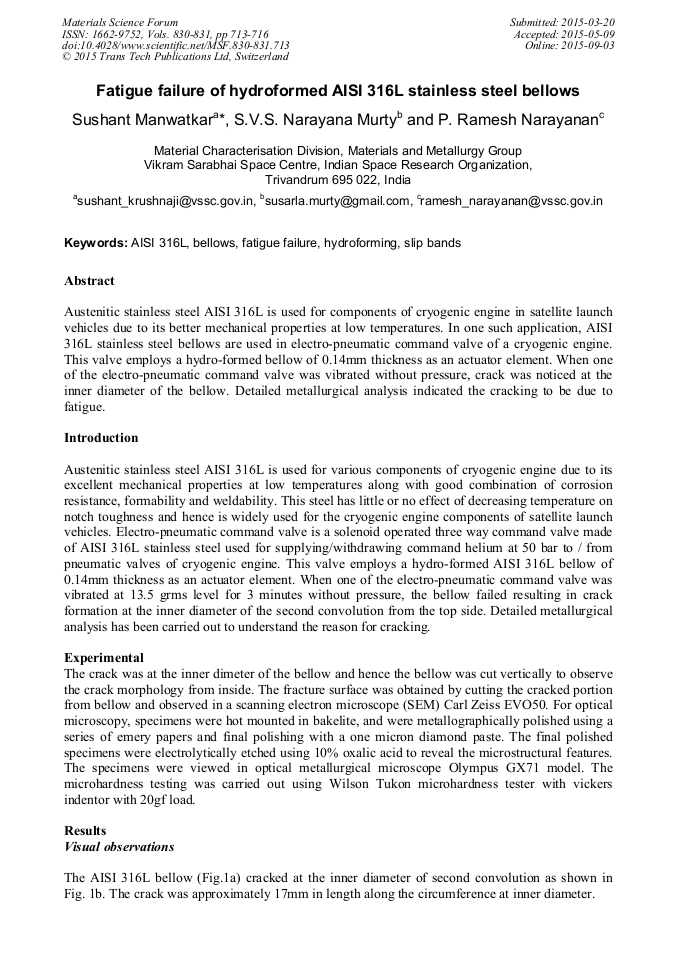

Fatigue Failure of Hydroformed AISI 316L Stainless Steel Bellows

Abstract:

Austenitic stainless steel AISI 316L is used for components of cryogenic engine in satellite launch vehicles due to its better mechanical properties at low temperatures. In one such application, AISI 316L stainless steel bellows are used in electro-pneumatic command valve of a cryogenic engine. This valve employs a hydro-formed bellow of 0.14mm thickness as an actuator element. When one of the electro-pneumatic command valve was vibrated without pressure, crack was noticed at the inner diameter of the bellow. Detailed metallurgical analysis indicated that the cracking to be due to fatigue.
