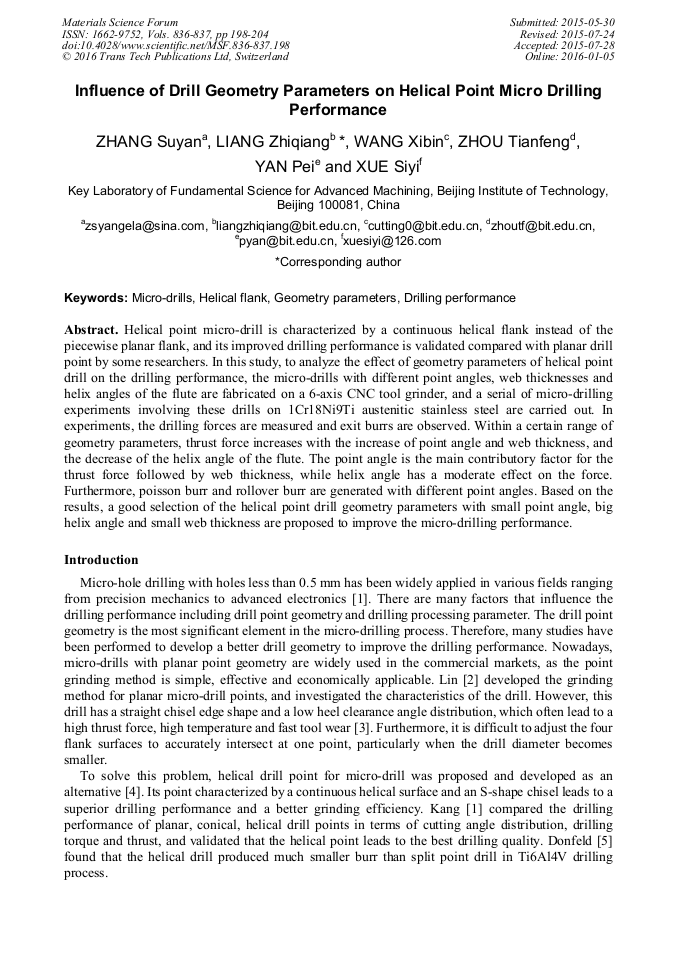

Influence of Drill Geometry Parameters on Helical Point Micro Drilling Performance

Abstract:

Helical point micro-drill is characterized by a continuous helical flank instead of the piecewise planar flank, and its improved drilling performance is validated compared with planar drill point by some researchers. In this study, to analyze the effect of geometry parameters of helical point drill on the drilling performance, the micro-drills with different point angles, web thicknesses and helix angles of the flute are fabricated on a 6-axis CNC tool grinder, and a serial of micro-drilling experiments involving these drills on 1Cr18Ni9Ti austenitic stainless steel are carried out. In experiments, the drilling forces are measured and exit burrs are observed. Within a certain range of geometry parameters, thrust force increases with the increase of point angle and web thickness, and the decrease of the helix angle of the flute. The point angle is the main contributory factor for the thrust force followed by web thickness, while helix angle has a moderate effect on the force. Furthermore, poisson burr and rollover burr are generated with different point angles. Based on the results, a good selection of the helical point drill geometry parameters with small point angle, big helix angle and small web thickness are proposed to improve the micro-drilling performance.

You might also be interested in these eBooks

12th International Conference on High Speed Machining

View Preview

Info:

Periodical:

Materials Science Forum (Volumes 836-837)

Pages:

198-204

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.836-837.198

Citation:

Cite this paper

Online since:

January 2016

Authors:

Su Yan Zhang, Zhi Qiang Liang*, Xi Bin Wang, Tian Feng Zhou, Pei Yan, Si Yi Xue

Keywords:

Drilling Performance, Geometry Parameters, Helical Flank, Micro-Drills

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] S.K. Kang, Micro-drill geometry and grinding, Northwestern University, Evanston, (1993).

Google Scholar

[2] C. Lin, S.K. Kang, K.F. Ehmann, Planar micro-drill point design and grinding methods, Trans. North Am. Manuf. Res. Inst. SME 20 (1992) 173-179.

Google Scholar

[3] H.C. Chyan, K.F. Ehmann, Development of curved helical micro-drill point technology for micro-hole drilling, Mechatronics 8 (1998) 337-358.

DOI: 10.1016/s0957-4158(97)00055-x

Google Scholar

[4] C. Lin, S.K. Kang, K.F. Ehmann, Helical micro-drill point design and grinding, Journal of Manufacturing Science and Engineering 117 (1995) 277-287.

DOI: 10.1115/1.2804332

Google Scholar

[5] D.A. Dornfeld, J.S. Kim, H. Dechow, et al. Drilling burr formation in titanium alloy Ti-6AI-4V, CIRP Ann Manuf Technol 48 (1999) 73-76.

DOI: 10.1016/s0007-8506(07)63134-5

Google Scholar

[6] A. Paul, S.G. Kapoor, R.E. DeVor, Chisel edge and cutting lip shape optimization for improved twist drill point design, International Journal of Machine Tools and Manufacture 45 (2005) 421-431.

DOI: 10.1016/j.ijmachtools.2004.09.010

Google Scholar

[7] I.S. Shyha, D.K. Aspinwall, S.L. Soo, et al. Drill geometry and operating effects when cutting small diameter holes in CFRP, International Journal of Machine Tools and Manufacture 49 (2009) 1008-1014.

DOI: 10.1016/j.ijmachtools.2009.05.009

Google Scholar

[8] S.L. Ko, J.E. Chang, G.E. Yang, Burr minimizing scheme in drilling, Journal of Materials Processing Technology 140 (2003) 237-242.

DOI: 10.1016/s0924-0136(03)00719-2

Google Scholar

[9] X.H. Zheng, D.P. Dong, L.X. Huang, et al. Research on fixture hole drilling quality of printed circuit board, International Journal of Precision Engineering and Manufacturing 14 (2013) 525-534.

DOI: 10.1007/s12541-013-0071-5

Google Scholar

[10] L.K. Lauderbaugh, Analysis of the effects of process parameters on exit burrs in drilling using a combined simulation and experimental approach, Journal of materials processing technology 209 (2009) 1909-(1919).

DOI: 10.1016/j.jmatprotec.2008.04.062

Google Scholar

[11] V.N. Gaitonde, S.R. Karnik, B.T. Achyutha, et al. Taguchi optimization in drilling of AISI 316L stainless steel to minimize burr size using multi-performance objective based on membership function, Journal of materials processing technology 202 (2008).

DOI: 10.1016/j.jmatprotec.2007.08.013

Google Scholar

[12] Z.Q. Liang, H.C. Jian, X.B. Wang, et al. A 5-Axis coordinated CNC grinding method for the flank of a non-coaxial helical micro-drill with the cylinder grinding wheel, Advanced Materials Research 1017 (2014) 654-659.

DOI: 10.4028/www.scientific.net/amr.1017.654

Google Scholar
