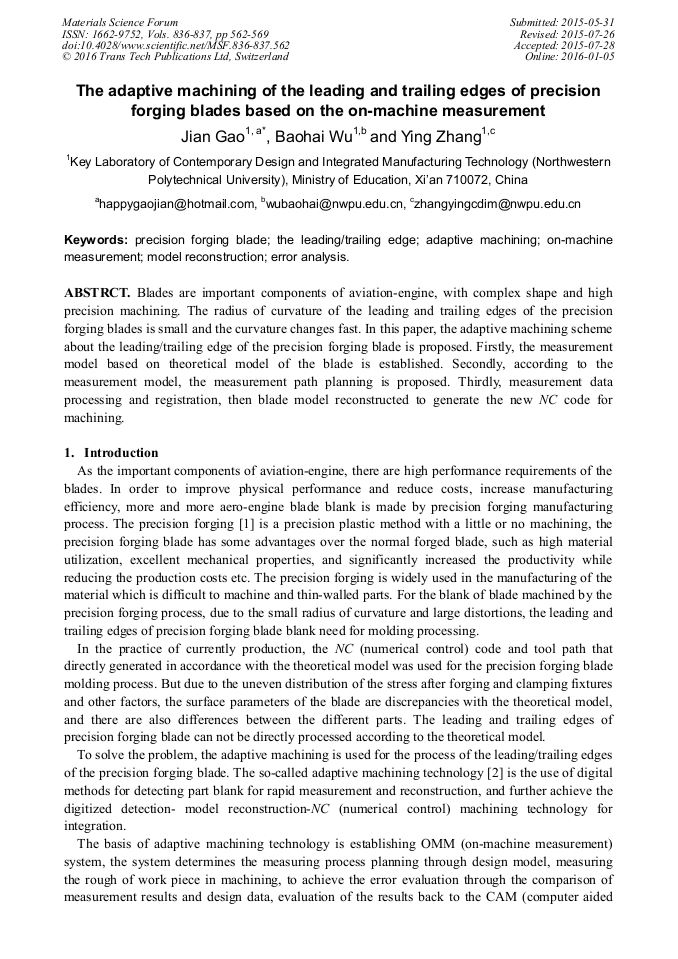

The Adaptive Machining of the Leading and Trailing Edges of Precision Forging Blades Based on the On-Machine Measurement

Abstract:

Blades are important components of aviation-engine, with complex shape and high precision machining. The radius of curvature of the leading and trailing edges of the precision forging blades is small and the curvature changes fast. In this paper, the adaptive machining scheme about the leading/trailing edge of the precision forging blade is proposed. Firstly, the measurement model based on theoretical model of the blade is established. Secondly, according to the measurement model, the measurement path planning is proposed. Thirdly, measurement data processing and registration, then blade model reconstructed to generate the new NC code for machining.

• Periodical: Materials Science Forum (Volumes 836-837)
• Pages: 562-569
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.836-837.562
• Online since: January 2016
• Authors: Jian Gao, Bao Hai Wu, Ying Zhang
• Keywords: Adaptive Machining, Error Analysis, Leading/Trailing Edge, Model Reconstruction, On-Machine Measurement, Precision Forging Blade

References

[1] Lim T S, Lee C M, Kim S W, et al. Evaluation of Materials of cutter orientations in 5-axis high speed milling of turbine blade [J]. Journal of Materials Processing Technology, 2002, 30(2): 40-406.

DOI: 10.1016/s0924-0136(02)00745-8

[2] Zhang D H, Zhang Y, Wu B H, et al. Application of adaptive machining technology in blisk manufacturing [J]. Aeronautical Manufacturing Technology, 2008, 13: 51-55.

[3] Cho M W, Lee H, Yoon G S, et al. A Computer-Aided Inspection Planning System for On-Machine Measurement-Part Ⅱ: Local Inspection Planning [J]. Journal of Mechanical Science & Technology, 2004, 18(8): 1358-1367.

DOI: 10.1007/bf02984250

[4] Lee H., Cho M.W., Yoon G.S., et al. A computer-aided inspection planning system for on-machine measurement-PART I: Global inspection planning-. Journal of Mechanical and Science And Technology, 2004, 18(8): 1349-1367.

DOI: 10.1007/bf02984249

[5] Chung S.C. CAD/CAM Integration of On-The-Machine Measuring and Inspection System for Free-Form Surface. Proceedings of American Society for Precision Engineering. 1999, (20): 267-270.

[6] Kamath R. On-Machine Inspection and Acceptance (OMIA). University of Missouri—Rolla, (2000).

[7] Lin X J, Chen Y, Wang Z W, et al. The research of model restriction about leading edge and tailing edge of precision forging blade for the adaptive machining technology [J], 2014, 35(1): 1-3.

[8] Zhang H, Li Q, Li W, et al. An Effective Extraction Method of Aviation Engine Blade's Mean Camber Line Based on MLS Method [J]. China Mechanical Engineering, (2014).

[9] ZHANG Li-ning~(, Zhang D H, University N P, et al. Calculation method on central arced curve of blade section based on equidistance line[J]. Journal of Machine Design, 2006, 23(5): 39-41.
