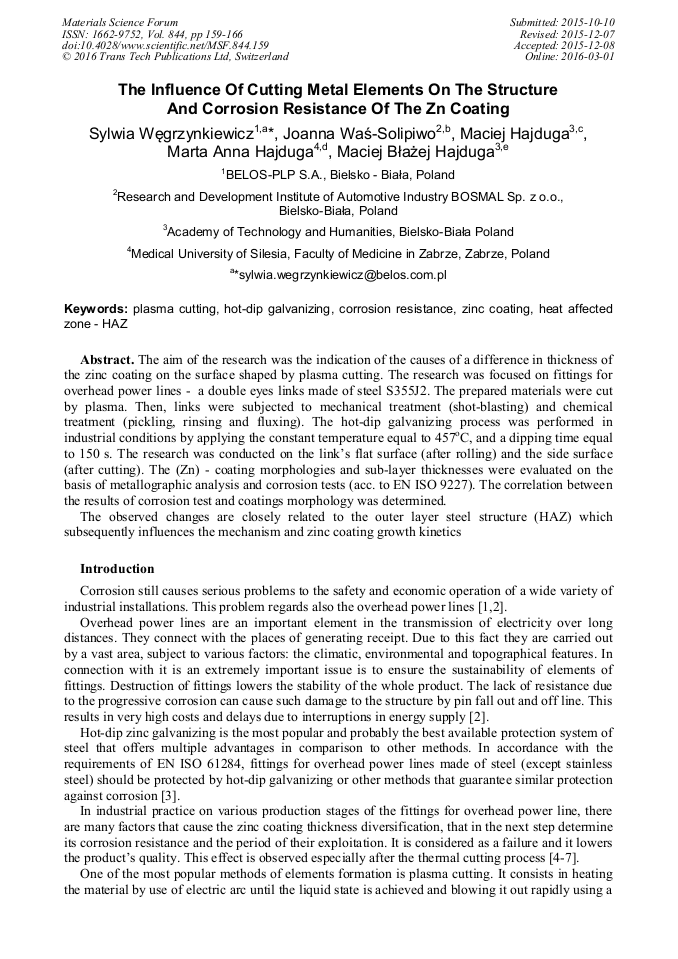

The Influence of Cutting Metal Elements on the Structure and Corrosion Resistance of the Zn Coating

Abstract:

The aim of the research was the indication of the causes of a difference in thickness of the zinc coating on the surface shaped by plasma cutting. The research was focused on fittings for overhead power lines - a double eyes links made of steel S355J2. The prepared materials were cut by plasma. Then, links were subjected to mechanical treatment (shot-blasting) and chemical treatment (pickling, rinsing and fluxing). The hot-dip galvanizing process was performed in industrial conditions by applying the constant temperature equal to 457°C, and a dipping time equal to 150 s. The research was conducted on the link’s flat surface (after rolling) and the side surface (after cutting). The (Zn) - coating morphologies and sub-layer thicknesses were evaluated on the basis of metallographic analysis and corrosion tests (acc. to EN ISO 9227). The correlation between the results of corrosion test and coatings morphology was determined.The observed changes are closely related to the outer layer steel structure (HAZ) which subsequently influences the mechanism and zinc coating growth kinetics

• Periodical: Materials Science Forum (Volume 844)
• Pages: 159-166
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.844.159
• Online since: March 2016
• Authors: Sylwia Węgrzynkiewicz, Joanna Waś-Solipiwo, Maciej Hajduga, Marta Anna Hajduga, Maciej Błażej Hajduga
• Keywords: Corrosion Resistance, Heat Affected Zone - HAZ, Hot-Dip Galvanizing, Plasma Cutting, Zinc Coating

References

[1] K. Kreislova., M. Jaglova, L. Turek, A. Koukalova, Evaluation of corrosion of long-termexposed aluminium conductor, In: Koroze a ochrana materiálu 57 (1), (2013), pp.25-34.

DOI: 10.2478/v10227-011-0025-4

[2] S. Węgrzynkiewicz, M. Hajduga, D. Sołek, J. Masalski, Wpływ przygotowania powierzchni stali 30MnB4 na strukturę i ciągłość powłoki Zn uzyskanej w procesie cynkowania ogniowego, Ochrona przed korozją 4-5, (2011), pp.181-185.

DOI: 10.15199/40.2017.7.4

[3] EN 61284: 1996 Overhead lines. Requirements and tests for fittings.

[4] W. Schultz, M. Thiele, Cynkowanie ogniowe jednoskowe. Materiał - Technologia - Powstawanie powłoki- Właściwości- Błędy, Bad Saulgau: Eugen G. Leuze Verlag KG, (2012).

[5] V. Kuklik, Povlaky žárového zinku na pálených plochach, in 17 konference zaroveho zinkovani, Ostrava, Česká Republika, (2011).

[6] S. Węgrzynkiewicz, D. Jędrzejczyk, I. Szłapa, M. Hajduga, S. Boczkal, Influence of a substrate surface on the (Zn) - coating formation, In: Archives of Metallurgy and Materials 59 (2014), pp.1373-1378.

DOI: 10.2478/amm-2014-0234

[7] S. Węgrzynkiewicz, The problem with the zinc coating diversification of the hot dip galvanized steel", In: Metal 2015: 24rd International Conference on Metallurgy and Materials: conference proceedings, Brno, Česká Republika, (2015).

[8] A. Klimpel, M. Mazur, Podręcznik spawalnictwa, Wydawnictwo Politechniki Ślaskiej, Gliwice, (2004).

[9] K. Ferenc, Spawalnictwo, WNT, Warszawa, (2007).

[10] S. Trela, Badania wpływu cięcia laserowego na twardość stali nisko- i średniowęglowych, In: Mechanik, 12, 77, (2004), pp.877-878.

[11] W. Wołczyński, Z. Pogoda, G. Garzeł, B. Kucharska, A. Sypień, T. Okane, Part I. Thermodynamic and kinetic aspects of the hot dip (Zn) coating formation, In: Archives of Metallurgy and Materials 59, (2014), pp.1233-1242.

DOI: 10.2478/amm-2014-0212

[12] P. Liberski, H. Kania, P. Podolski, J. Mendala, A. Talarek, Rola warstwy zewnętrznej powłoki cynkowej w ochronie stopów żelaza przed korozją, In: Ochrona przed korozją, 4, (2006), pp.132-138.

DOI: 10.15199/40.2018.12.5

[13] EN ISO 4287: 1998 Geometrical product specification (GPS). Surface texture: Profile method. Terms, definitions and surface texture parameters.

DOI: 10.3403/02031657

[14] EN ISO 13565-2: 1998 Geometric product specifications (GPS). Surface texture: Profile method. Surfaces having stratified functional properties. Height characterization using the linear material ration curve.

DOI: 10.3403/01414413

[15] EN ISO 6507-1: 2005 Metallic materials. Vickers hardness test. Test method.

[16] EN ISO 9227: 2012 Corrosion tests in artificial atmospheres. Salt spray tests.
