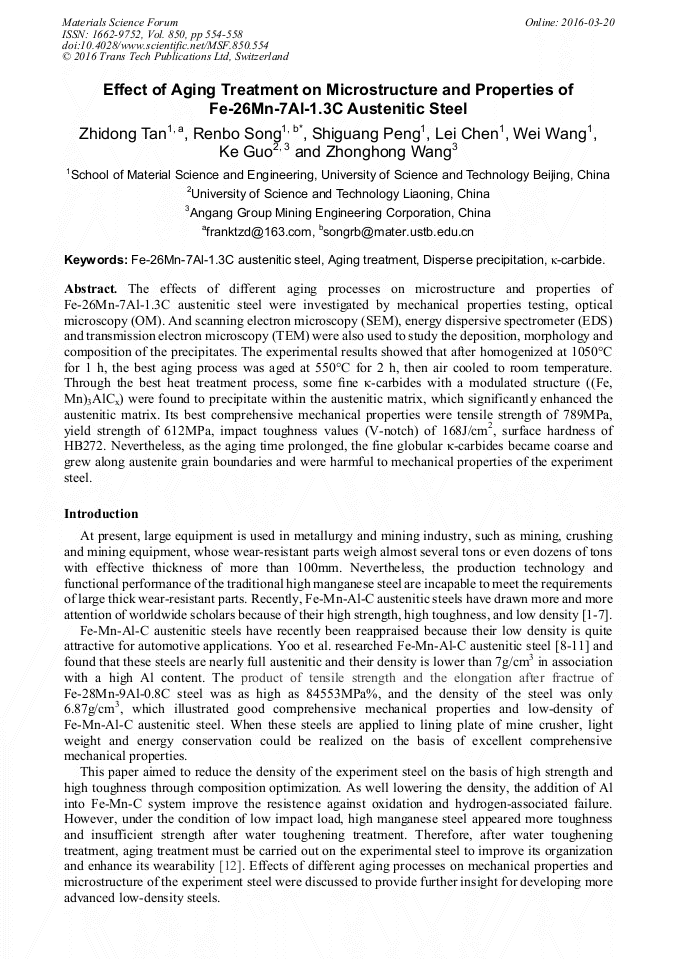

Effect of Aging Treatment on Microstructure and Properties of Fe-26Mn-7Al-1.3C Austenitic Steel

Abstract:

The effects of different aging processes on microstructure and properties of Fe-26Mn-7Al-1.3C austenitic steel were investigated by mechanical properties testing, optical microscopy (OM). And scanning electron microscopy (SEM), energy dispersive spectrometer (EDS) and transmission electron microscopy (TEM) were also used to study the deposition, morphology and composition of the precipitates. The experimental results showed that after homogenized at 1050°C for 1 h, the best aging process was aged at 550°C for 2 h, then air cooled to room temperature. Through the best heat treatment process, some fine κ-carbides with a modulated structure ((Fe, Mn)₃AlC_x) were found to precipitate within the austenitic matrix, which significantly enhanced the austenitic matrix. Its best comprehensive mechanical properties were tensile strength of 789MPa, yield strength of 612MPa, impact toughness values (V-notch) of 168J/cm², surface hardness of HB272. Nevertheless, as the aging time prolonged, the fine globular κ-carbides became coarse and grew along austenite grain boundaries and were harmful to mechanical properties of the experiment steel.

• Periodical: Materials Science Forum (Volume 850)
• Pages: 554-558
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.850.554
• Online since: March 2016
• Authors: Zhi Dong Tan, Ren Bo Song*, Shi Guang Peng, Lei Chen, Wei Wang, Ke Guo, Zhong Hong Wang
• Keywords: Aging Treatment, Disperse Precipitation, Fe-26Mn-7Al-1.3C Austenitic Steel, κ-Carbide

References

[1] Chen P, Chao C, Liu T. A novel high-strength, high-ductility and high-corrosion-resistance FeAlMnC low-density alloy[J]. Scripta Materialia. 2013, 68(6): 380-383.

DOI: 10.1016/j.scriptamat.2012.10.034

[2] Seol J, Raabe D, Choi P, et al. Direct evidence for the formation of ordered carbides in a ferrite-based low-density Fe–Mn–Al–C alloy studied by transmission electron microscopy and atom probe tomography[J]. Scripta Materialia. 2013, 68(6): 348-353.

DOI: 10.1016/j.scriptamat.2012.08.013

[3] Sohn S S, Lee B J, Lee S, et al. Effect of annealing temperature on microstructural modification and tensile properties in 0. 35 C–3. 5 Mn–5. 8 Al lightweight steel[J]. Acta Materialia. 2013, 61(13): 5050-5066.

DOI: 10.1016/j.actamat.2013.04.038

[4] Gutierrez-Urrutia I, Raabe D. Influence of Al content and precipitation state on the mechanical behavior of austenitic high-Mn low-density steels[J]. Scripta Materialia. 2013, 68(6): 343-347.

DOI: 10.1016/j.scriptamat.2012.08.038

[5] Wang T, Kao F, Wang S, et al. Isothermal treatment influence on nanometer-size carbide precipitation of titanium-bearing low carbon steel[J]. Materials Letters. 2011, 65(2): 396-399.

DOI: 10.1016/j.matlet.2010.10.022

[6] Bartlett L S A M V. A review of the physical and mechanical properties of a cast high strength and lightweight Fe-Mn-Al-C steel[J]. 2010: 413-423.

[7] Raabe D, Springer H, Gutierrez-Urrutia I, et al. Alloy Design, Combinatorial Synthesis, and Microstructure–Property Relations for Low-Density Fe-Mn-Al-C Austenitic Steels[J]. JOM. 2014, 66(9): 1845-1856.

DOI: 10.1007/s11837-014-1032-x

[8] J.D. Yoo, S.W. Hwang, K.T. Park. Factors influencing the tensile behavior of a Fe-28Mn-9Al-0. 8C steel[J]. Material Science and Engineering A, 2009, 508(1-2): 234-240.

DOI: 10.1016/j.msea.2008.12.055

[9] J.D. Yoo. Microhand-induced plasticity in a high Mn-Al-C light steel[J]. Material Science and Engineering A, 2008, 496(1-2): 417-424.

[10] E. Mazancova, Z. Jonla, K. Mazanec. Structural metallurgy properties of high manganese Fe-Mn-Al-C alloy[J]. Metals, 2008, 61(2): 13.

[11] E. Mazancova. Properties of high manganese Fe-Mn-Al-C alloys[J]. Archives Mater Sci, 2007, 28(1-4): 90.

[12] S. Gardelis, A.G. Nassiopoulou, M. Mahdouani. Enhancement and red shift of photoluminescence (PL) of fresh porous Si under prolonged laser irradiation or aging: Role of surface vibration modes[J]. Physica E. 2009(41): 986-989.

DOI: 10.1016/j.physe.2008.08.021

[13] Hosoda H, Miyazaki S, Mishima Y J. Phase Constitution of Some Intermetallics in Continuous Quaternary Pillar Phase Diagramsl[J]. Phase Rquilibria. 2001, 22(4): 394-399.

DOI: 10.1361/105497101770332947

[14] Kimura Y, Hayashi K, et al. Microstructual control for strengthening the γ-Fe/E21-(Fe, Mn)3AlCx alloys[J]. Materials Science and Engineering: A. 2002, 329-331: 680-685.

DOI: 10.1016/s0921-5093(01)01607-0

[15] Kalashnikov I, Shalkevich A, Acselrad O, et al. Chemical composition optimization for austenitic steels of the Fe-Mn-Al-C system[J]. Journal of Materials Engineering and Performance. 2000, 9(6): 597-602.

DOI: 10.1361/105994900770345430

[16] Zhu S M, Tjong S C. Creep and Rupture Properties of an Austenitic Fe-30Mn-9Al-1C Alloy[J]. Metallurgical and Material Transactions A. 1998, 29A: 299-306.

DOI: 10.1007/s11661-998-0181-3
