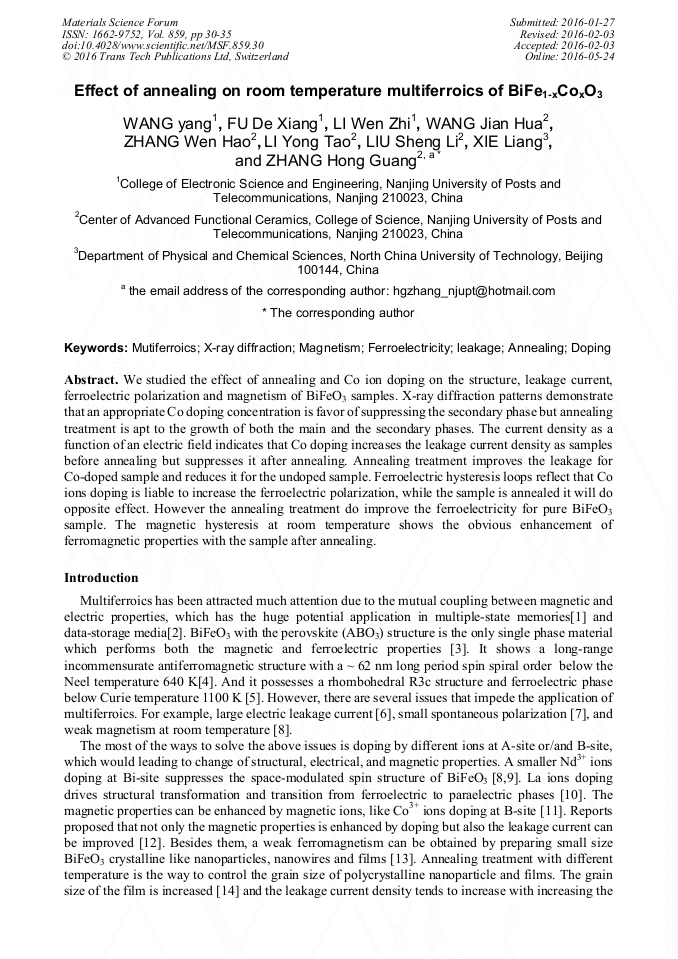

Effect of Annealing on Room Temperature Multiferroics of BiFe_1-xCo_xO₃

Abstract:

We studied the effect of annealing and Co ion doping on the structure, leakage current, ferroelectric polarization and magnetism of BiFeO₃ samples. X-ray diffraction patterns demonstrate that an appropriate Co doping concentration is favor of suppressing the secondary phase but annealing treatment is apt to the growth of both the main and the secondary phases. The current density as a function of an electric field indicates that Co doping increases the leakage current density as samples before annealing but suppresses it after annealing. Annealing treatment improves the leakage for Co-doped sample and reduces it for the undoped sample. Ferroelectric hysteresis loops reflect that Co ions doping is liable to increase the ferroelectric polarization, while the sample is annealed it will do opposite effect. However the annealing treatment do improve the ferroelectricity for pure BiFeO₃ sample. The magnetic hysteresis at room temperature shows the obvious enhancement of ferromagnetic properties with the sample after annealing.

• Periodical: Materials Science Forum (Volume 859)
• Pages: 30-35
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.859.30
• Online since: May 2016
• Authors: Yang Wang, De Xiang Fu, Wen Zhi Li, Jian Hua Wang, Wen Hao Zhang, Yong Tao Li, Sheng Li Liu, Liang Xie, Hong Guang Zhang*
• Keywords: Annealing, Doping, Ferroelectricity, Leakage, Magnetism, Mutiferroics, X-Ray Diffraction

References

[1] M. Fiebig, T. Lottermoser, D. Fröhlich, A.V. Golsev, and R.V. Pisarev, Observation of coupled magnetic and electric domains, Nature (London) 419 (2002) 818-820.

DOI: 10.1038/nature01077

[2] D. Lebeugle, D. Colson, A. Forget, and M. Viret, Very large spontaneous electric polarization in BiFeO3 single crystals at room temperature and its evolution under cycling fields, Appl. Phys. Lett. 91 (2007) 22907-22909.

DOI: 10.1063/1.2753390

[3] I. Sosnowska, T. Peterlin-Neumaier, and E. Steichele, Spiral magnetic-ordering in bismuth ferrite, J. Phys. C: Solid state Phys. 15 (1982) 4835-4846.

DOI: 10.1088/0022-3719/15/23/020

[4] F. Kubel, and H. Schmid, Structure of a ferroelectric and ferroelastic monodmain crystal of the perovskite BiFeO3, Acta Crystallogr. Sect. B: Struct. Sci. 46 (1990) 698-702.

DOI: 10.1107/s0108768190006887

[5] Y.P. Wang, L. Zhou, M.F. Zhang, X.Y. Chen, J. -M. Liu, and Z.G. Liu, Room-temperature saturated ferroelectric polarization in BiFeO3 ceramics synthesized by rapid liquid phase sintering, Appl. Phys. Lett. 84 (2004) 1731-1733.

DOI: 10.1063/1.1667612

[6] J.R. Teague, R. Gerson, and W.J. James, Dielectric hysteresis in single crystal BiFeO3, Solid State Commun. 8 (1970) 1073-1074.

DOI: 10.1016/0038-1098(70)90262-0

[7] B. Ruette, S. Zvyagin. A.P. Pyatakov, A. Bush, J.F. Li, V.I. Belotelov, A.K. Zvezdin, and D. Viehland, Magnetic-field-induced phase transition in BiFeO3 observed by high-field electron spin resonance: Cycloidal to homogeneous spin order, Phys. Rev. B. 69 (2004).

DOI: 10.1103/physrevb.69.064114

[8] V.L. Mathe, K.K. Patankar, R.N. Patil, and C.D. Lokhande, Synthesis and dielectric properties of Bi1-xNdxFeO3 perovskites, J. Magn. Magn. Mater. 270 (2004) 380-388.

DOI: 10.1016/j.jmmm.2003.09.004

[9] G.L. Yuan, S.W. Or, J. -M. Liu, and Z.G. Liu, Structural transformation and ferroelectromagnetic behavior in single-phase Bi1-xNdxFeO3 multiferroic ceramics, Appl. Phys. Lett. 89 (2006) 52905-52907.

DOI: 10.1063/1.2266992

[10] G.L. Yuan, S.W. Or, and H.L.W. Chan, Structural transformation and ferroelectric-paraelectric phase transition in Bi1-xLaxFeO3 (x = 0-0. 25) multiferroic ceramics, J. Phys. D: Appl. Phys. 40 (2007) 1196-1200.

DOI: 10.1088/0022-3727/40/4/043

[11] Q.Y. Xu. H.F. Zai, D. Wu, T. Qiu, and M.X. Xu, The magnetic properties of Bi(Fe0. 95Co0. 05)O3 ceramics, Appl. Phys. Lett. 95 (2009) 112510-112513.

DOI: 10.1063/1.3233944

[12] H. Naganuma, J. Miura, and S. Okamura, Ferroelectric, electrical and magnetic properties of Cr, Mn, Co, Ni, Cu added polycrystalline BiFeO3 films, Appl. Phys. Lett. 93 (2008) 52901-52903.

DOI: 10.1063/1.2965799

[13] F. Gao, Y. Yuan, K.F. Wang, X.Y. Chen, F. Chen, J.M. Liu, Z.F. Ren, Preparation and photoabsorption characterization of BiFeO3 nanowires, Appl. Phys. Lett. 89 (2006) 102506-102508.

DOI: 10.1063/1.2345825

[14] B.S. Soram, B.S. Ngangom, and H.B. Sharma, Effect of annealing temperatures on the structural and optical properties of sol-gel processed nanocrystalline BiFeO3 thin films, Thin Solid Films. 524 (2012) 57-61.

DOI: 10.1016/j.tsf.2012.09.015

[15] H. Naganuma, J. Miura, M. Nakajima, H. Shima, S. Okamura, S. Yasur, H. Funakubo, K. Nishida, T. Iijima, M. Azuma, Y. Ando, K. Kamishima, K. Kakizaki, and N. Hiratsuka, Annealing temperature dependences of ferroelectric and magnetic properties in polycrystalline Co-substituted BiFeO3 films, Japn. J. Appl. Phys. 47 (2008).

DOI: 10.1143/jjap.47.7574

[16] H. Naganuma, J. Miura, and S. Okamura, Annealing temperature effect on ferroelectric and magnetic properties in Mn-added polycrystalline BiFeO3 films, J. Electroceram. 22 (2009) 203-208.

DOI: 10.1007/s10832-007-9400-3

[17] Q.Y. Xu, X.H. Zheng, L.Y. Wang, Y. Zhang, D.H. Wang, and M.X. Xu, The structural and multiferroic properties of (Bi1-xLax)(Fe0. 95Co0. 05)3 ceramics, Physica B. 407 (2012) 4793-4796.

DOI: 10.1016/j.physb.2012.09.021

[18] Y. Wang, Q.H. Jiang, H.C. He, and C.W. Nan, Multiferroic BiFeO3 thin films prepared via a simple sol-gel method, Appl. Phys. Lett. 88 (2006) 1425031-1425033.

DOI: 10.1063/1.2213200
