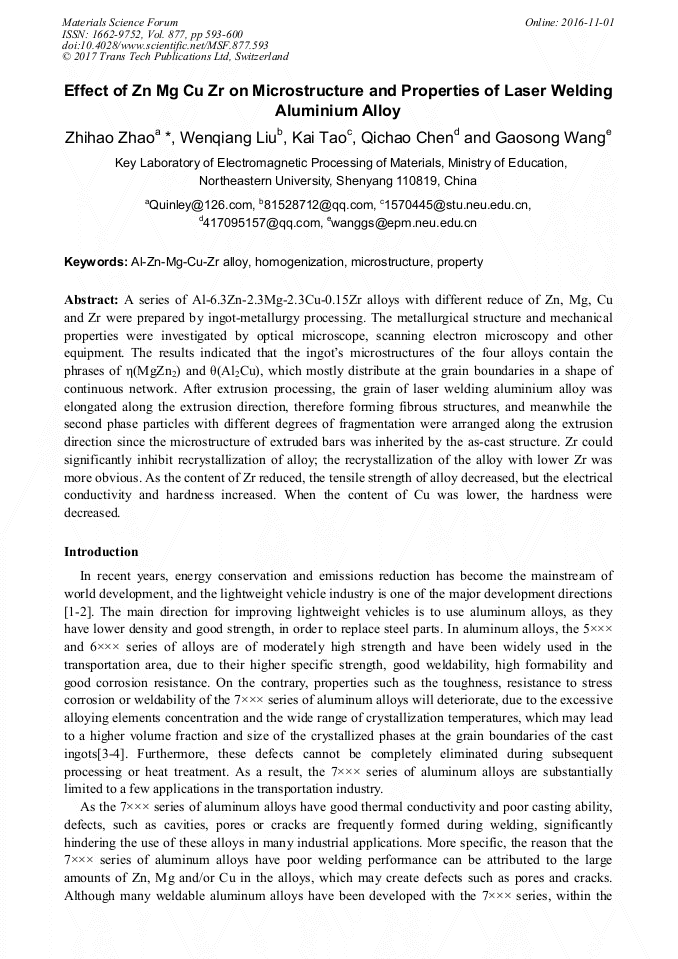

Effect of Zn, Mg, Cu, Zr on Microstructure and Properties of Laser Welding Aluminium Alloy

Abstract:

A series of Al-6.3Zn-2.3Mg-2.3Cu-0.15Zr alloys with different reduce of Zn, Mg, Cu and Zr were prepared by ingot-metallurgy processing. The metallurgical structure and mechanical properties were investigated by optical microscope, scanning electron microscopy and other equipment. The results indicated that the ingot’s microstructures of the four alloys contain the phrases of η (MgZn₂) and θ (Al₂Cu), which mostly distribute at the grain boundaries in a shape of continuous network. After extrusion processing, the grain of laser welding aluminium alloy was elongated along the extrusion direction, therefore forming fibrous structures, and meanwhile the second phase particles with different degrees of fragmentation were arranged along the extrusion direction since the microstructure of extruded bars was inherited by the as-cast structure. Zr could significantly inhibit recrystallization of alloy; the recrystallization of the alloy with lower Zr was more obvious. As the content of Zr reduced, the tensile strength of alloy decreased, but the electrical conductivity and hardness increased. When the content of Cu was lower, the hardness were decreased.

• Periodical: Materials Science Forum (Volume 877)
• Pages: 593-600
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.877.593
• Online since: November 2016
• Authors: Zhi Hao Zhao*, Wen Qiang Liu, Kai Tao, Qi Chao Chen, Gao Song Wang
• Keywords: Al-Zn-Mg-Cu-Zr Alloy, Homogenization, Microstructure, Property

References

[1] Hirsch J.; Bassan D.; Lahaye C.; Goede M., Aluminum in Innovative Light-weight Car Design[J], Materials Transactions, 2011, 55: 818-824.

[2] Kleiner M.; Geiger M.; Klaus A., Manufacturing of Lightweight Component by Metal Forming[J], CIRP Annals-Manufacturing Technology, 2003, 52, 521-542.

DOI: 10.1016/s0007-8506(07)60202-9

[3] Liu C.; Northwood D.O.; Bhole S.D., Tensile Fracture Behavior in CO2 Laser Beam Welds of 7075-T6 Aluminum Alloy [J], Materials and Design, 2004, 25: 573-577.

DOI: 10.1016/j.matdes.2004.02.017

[4] Sotirov N.; Simon P.; Chimani Ch.; Uffelmann D.; Melzer C., Warm Deep Draw ability of Peak-Aged 7075 Aluminum Sheet Alloy [J], Key Engineering Materials, 2012, 504-506: 955-960.

DOI: 10.4028/www.scientific.net/kem.504-506.955

[5] Zuo Yu-bo, Cui Jian-zhong, Zhao Zhi-hao, et al. Structure and properties of 7050 alloy prepared through low frequency electromagnetic casting process [J]. Journal of Northeastern University: Natural Science, 2008, 29(1): 77- 80.

[6] Mondolfo L. F. Aluminum alloys: structure and properties [M]. London: Butter Worth Publication, 1976: 842- 844.

[7] Tenzler U.; Cyrener E.; Tempus G., Experimental results on phase dissolution and homogenization in continuously cast Al Zn Mg Cu alloys [J], Aluminum, 1999, 75(6): 524- 530.

[8] Yang Shu-fang, Lou Song-nian, Xue Xiao-huai. Welding technique of aluminum alloy [J]. Shipbuilding Technology, 2003, 5: 25-28.

[9] Zhang Yan, Li Mo. Localized Corrosion Resistance of Al-Cu Alloy's Weld Joints [J]. Xue Huai-guo, The 14th national electrochemical conference proceedings, Yang Zhou, Yangzhou university press, 2008: D-098.

[10] Li Jing-yong. High damping aluminium alloy laminated sheet welding sex research [J]. Wang Lin-shu, The ninth national conference on welding, HA Er-bing, China Machine Press, 1999: 78-81.

[11] Ruym N. The influence of a Precipitation-Free Zone on the mechanical properties of an Al-Zn-Mg-Cu alloy [J], Act Metallurgic, 1968, 16(3): 327-333.

[12] Joseph H.M.; Hyman R. Influence of nonequilibrium second phase particles formed during solidification upon the mechanical behavior of an aluminum alloy[J], Metall. Trans, 1971, (2): 427-432.

DOI: 10.1007/bf02663329

[13] Richrard D.; Phrilip N., Calorimetric studies of 7000 series Aluminum alloy: I. Matrix Precipitate characterization of 7075[J], Metallurgical transactions A, 1977, 8(A): 1177-1181.

DOI: 10.1007/bf02667403

[14] Zhang Pei-qing. The relationship between the organization and performance and aging conditions for high strength Al-Zn-Mg alloy [J]. Light Alloy Fabrication Technology, 1993, 21(10): 44-47.

[15] Gruhrl, Wolfqang. Stress corrosion behavior of high strength Al-Zn-Mg alloys [J], Aluminum, 1978, 54(5): 323-326.

[16] Michrael V. HR.; William E.Q.; John T.Q. Improved aluminum alloys for airframe applications [J], Metal Progress, 1977, 111(3): 56-59.
