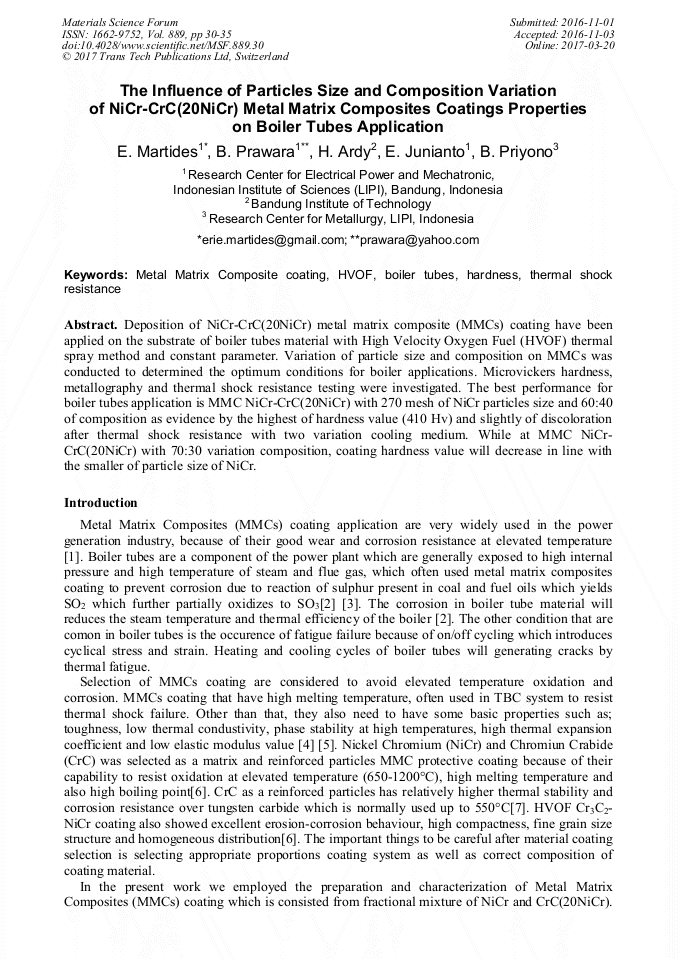

The Influence of Particles Size and Composition Variation of NiCr-CrC(20NiCr) Metal Matrix Composites Coatings Properties on Boiler Tubes Application

Abstract:

Deposition of NiCr-CrC(20NiCr) metal matrix composite (MMCs) coating have been applied on the substrate of boiler tubes material with High Velocity Oxygen Fuel (HVOF) thermal spray method and constant parameter. Variation of particle size and composition on MMCs was conducted to determined the optimum conditions for boiler applications. Microvickers hardness, metallography and thermal shock resistance testing were investigated. The best performance for boiler tubes application is MMC NiCr-CrC(20NiCr) with 270 mesh of NiCr particles size and 60:40 of composition as evidence by the highest of hardness value (410 Hv) and slightly of discoloration after thermal shock resistance with two variation cooling medium. While at MMC NiCr-CrC(20NiCr) with 70:30 variation composition, coating hardness value will decrease in line with the smaller of particle size of NiCr.

• Periodical: Materials Science Forum (Volume 889)
• Pages: 30-35
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.889.30
• Online since: March 2017
• Authors: Erie Martides*, Budi Prawara, Husaini Ardy, Endro Junianto, Budi Priyono
• Keywords: Boiler Tubes, Hardness, HVOF, Metal Matrix Composite Coating, Thermal Shock Resistance

References

[1] N. Poyyamozhi, Effect of Plasma Sprayed Metal Matrix Composite Coating on Performance of IC Engine, International Journal of Mechanical & Mechatronics Engineering IJJME-IJENS Vol: 15 No: 03, April 2015, pp.37-43.

[2] Goyal, Khushdeep, et. al Current Status of Thermal Spray Coatings for High Temperature Corrosion Resistance of Boiler Steel, Journal of Material & Metallurgical Engineering Vol: 6, Issue 1, 2016, pp.29-35.

[3] M. M Rahman, J. Purbolaksono, J. Ahmad, Root cause failure analysis of a division wall superheater tube of a coal-fired power station, Engineering Failure Analysis Vol: 17, 2010, pp.1490-1494.

DOI: 10.1016/j.engfailanal.2010.05.005

[4] Han J.C., WangB. L, Thermal shock resistance of ceramics with temperature-dependent material properties at elevated temperature, Acta Materiala, 2011, 59, 1373-1382.

DOI: 10.1016/j.actamat.2010.10.068

[5] Girolama G.D., Marra F., Blasi C., Serra E., Valente T., Microstructure, mechanical properties and thermal shock resistance of plasma sprayed nanostructured zirconia coatings, Ceramics International, 2011, 37, 2711-2717.

DOI: 10.1016/j.ceramint.2011.04.024

[6] M. Mruthunjaya, K. I Parashivamurthy, Devappa, Microstructural Characterization and hot erosion behaviour of CrC-NiCr ciated steel using HVOF technique, International Journal of Mechanical Engineering and Technology (IJMET), Volume 7, Issue 3, May-June 2016, pp.53-62.

[7] John. Betts. C. The direct laser deposition of AISI 316 stainless steel and Cr3C2 powder, University of Malta, Malta, (2009).

[8] N. M Vaxevanidis, D.E. Manolakos, G.P. Petropoulos, Surface Integrity and Tribological Behaviour of Plasma Sprayed Alumina Coatings on Steel and Aluminum Substrates, Tribology in industry, Volume 26, No. 1&2, 2004, pp.42-47.

[9] Rajendra.S. K, Ramesha.C. M, A Survey of Al7075 Aluminium metal matrix composites, International Journal of Science and Research (ISJR) Volume 4 Issue 2, February 2015, pp.1071-1075.

[10] ASTM A 213/A213M-15c, Standard Specification for seamless ferritic and austenitic alloy-steel boiler, superheater and heat-exchanger tubes, AST International, (2015).

DOI: 10.1520/a0213_a0213m-18a

[11] Limarga A.M., Clarke D.R., Characterization of Electron Beam Physical Vapor Deposited Thermal Barrier Coatings Using Diffuse Optical Reflectance, Int. J. Appl. Ceram. Technol., 2009, 6 (3), 400–409.

DOI: 10.1111/j.1744-7402.2008.02349.x

[12] D. Thirumalaikumarasamy, K. Shanmugam Kamalamoorthy, V. Balasubramanian Visvalingam, Effect of experimental parameter on the micro hardness of plasma sprayed alumina coatings on AZ31B magnesium alloy, Journal of Magnesium and Alloys Volume 3, 2015, pp.237-260.

DOI: 10.1016/j.jma.2015.06.002

[13] karaoglanli, A.C., Ogawa,K., Turk.A., Ozdemir.I., Thermal Shock and Cycling Behavior of Thermal Barrier Coatings (TBC) used in gas turbines, Intech, 2014, pp.237-242.

DOI: 10.5772/54412

[14] H.B. Guo, H. Murakami, S. Kuroda, Effect of Hollow Spherical Powder Size Distribution on Porosity and Segmentation Cracks in Thermal Barrier Coatings, J. American Ceramic Society, 2006, 89.

DOI: 10.1111/j.1551-2916.2006.01322.x

[12] pp.3797-3804.
