Optimalization of Tempering Temperature of 9CrNB Steel in Železiarne Podbrezová Steelworks

Abstract:

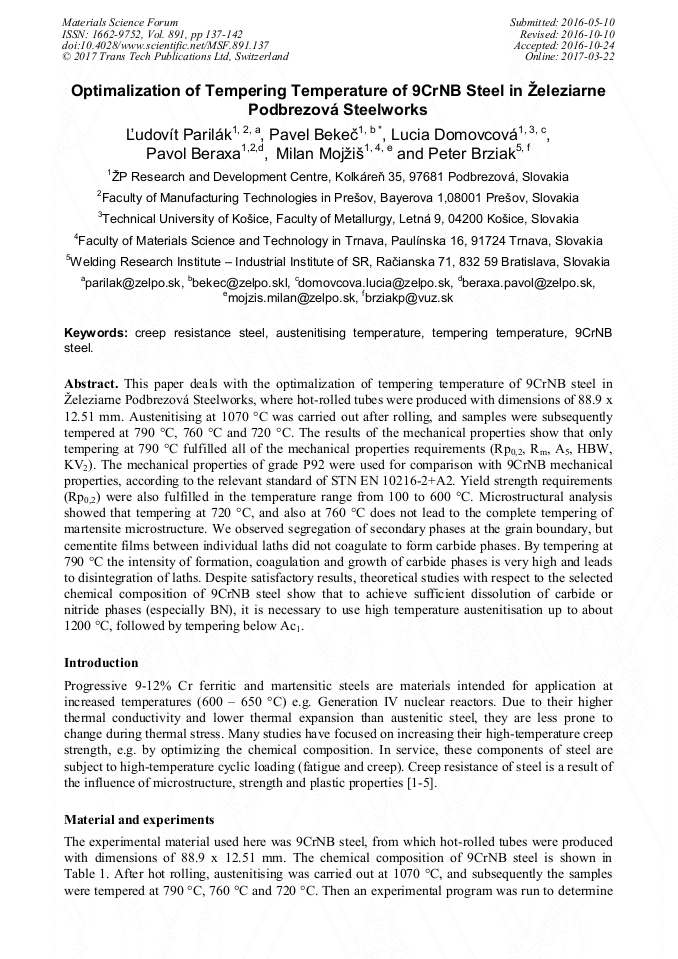

This paper deals with the optimalization of tempering temperature of 9CrNB steel in Železiarne Podbrezová Steelworks, where hot-rolled tubes were produced with dimensions of 88.9 x 12.51 mm. Austenitising at 1070°C/12m/hr was carried out after rolling, and samples were subsequently tempered at 790°C, 760°C and 720°C/4m/hr. The results of testing the mechanical properties show that only tempering at 790°C fulfilled all of the mechanical properties requirements (Rp_0,2, Rm, A₅, HBW, KV₂). The mechanical properties of grade P92 were used for comparison with 9CrNB mechanical properties, according to the relevant standard of STN EN 10216-2+A2. Yield strength requirements (Rp_0,2) were also fulfilled in the temperature range from 100 to 600 °C. Microstructural analysis showed that tempering at 720°C, and also at 760°C does not lead to the complete tempering of martensite microstructure. We observed segregation of secondary phases at the grain boundary, but cementite films between individual laths did not coagulate to form carbide phases. By tempering at 790°C the intensity of formation of carbide phases, coagulation and growth of carbide phases is very high and leads to disintegration of laths. Despite satisfactory results, theoretical studies with respect to the selected chemical composition of 9CrNB steel show that to achieve sufficient dissolution of carbide or nitride phases (especially BN), it is necessary to use high temperature austenitization up to about 1200°C, followed by tempering below Ac₁.

• Periodical: Materials Science Forum (Volume 891)
• Pages: 137-142
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.891.137
• Online since: March 2017
• Authors: Ľudovít Parilák, Pavel Bekeč*, Lucia Domovcová, Pavol Beraxa, Milan Mojžiš, Peter Brziak
• Keywords: 9CrNB Steel, Austenitising Temperature, Creep Resistance Steel, Tempering Temperature

References

[1] Y. Tsuchida, K. Okamoto, Y. Tokunaga, Improvement of Creep Rupture Strength of 9Cr-1Mo-V-Nb-N Steel by Thermo-Mechanical Control Process, ISIJ International 35 (1995) 309-316.

DOI: 10.2355/isijinternational.35.309

[2] Ľ. Parilák, P. Beraxa, P. Bekeč, L. Domovcová, Microstructure, substructure, heat treatment and mechanical properties of modified 9-12%Cr creep resistant steel, Research report 18/2014/ŽPVVC (internal work, in Slovak), (2014).

DOI: 10.4028/www.scientific.net/msf.891.167

[3] M. Igarashi, S. Muneki, H. Hasegawa, K. Yamada, F. Abe, Creep Deformation and the Corresponding Microstructural Evolution in High-Cr Ferritic Steels, ISIJ International 41 (2001) Supplement, 101-105.

DOI: 10.2355/isijinternational.41.suppl_s101

[4] K. Sawada, M. Taneike, K. Kimura, F. Abe, Effect of Nitrogen Content on Microstructural Aspects and Creep Behavior in Extremely Low Carbon 9Cr Heat-resistant Steel, ISIJ International, 44 (2004) 1243-1249.

DOI: 10.2355/isijinternational.44.1243

[5] N. Dudova, R. Mishnev, R. Kaibyshev, Effect of Tempering on Microstructure and Mechanical Properties of Boron Containing 10% Cr Steel, ISIJ International 51 (2011) 1912-(1918).

DOI: 10.2355/isijinternational.51.1912
