Relationship of Microstructure and Mechanical Properties of Dual Phase Steel after Various Annealing Conditions

Article Preview

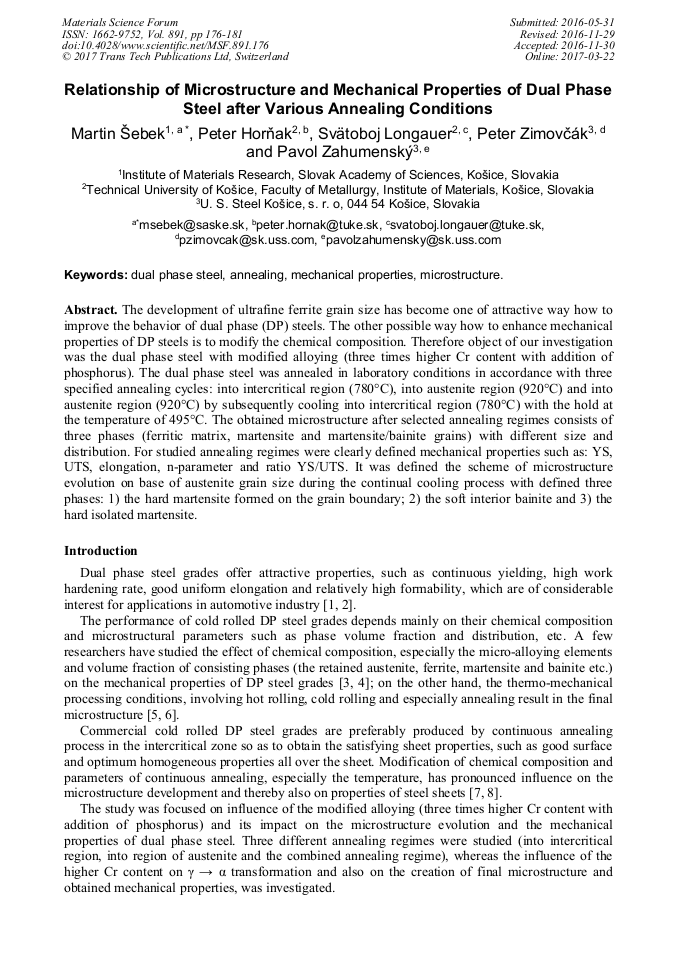

Abstract:

The development of ultrafine ferrite grain size has become one of attractive way how to improve the behavior of dual phase (DP) steels. The other possible way how to enhance mechanical properties of DP steels is to modify the chemical composition. Therefore object of our investigation was the dual phase steel with modified alloying (three times higher Cr content with addition of phosphorus). The dual phase steel was annealed in laboratory conditions in accordance with three specified annealing cycles: into intercritical region (780°C), into austenite region (920°C) and into austenite region (920°C) by subsequently cooling into intercritical region (780°C) with the hold at the temperature of 495°C. The obtained microstructure after selected annealing regimes consists of three phases (ferritic matrix, martensite and martensite/bainite grains) with different size and distribution. For studied annealing regimes were clearly defined mechanical properties such as: YS, UTS, elongation, n-parameter and ratio YS/UTS. It was defined the scheme of microstructure evolution on base of austenite grain size during the continual cooling process with defined three phases: 1) the hard martensite formed on the grain boundary; 2) the soft interior bainite and 3) the hard isolated martensite.

You might also be interested in these eBooks

Info:

Periodical:

Pages:

176-181

Citation:

Online since:

March 2017

Export:

Price:

Permissions CCC:

Permissions PLS:

Сopyright:

© 2017 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

[1] R.O. Rocha, E.V. Melo, D.B. Santos, Materials Science Forum 638-642 (2010) 3479-3484.

Google Scholar

[2] M. Papa Rao, V. Subramanya Sarma, S. Sankaran, Materials Science and Engineering A 568 (2013) 171-175.

Google Scholar

[3] L. Gao, Q. Song, J. Yuan, Advanced Materials Research 476-478 (2012) 241-247.

Google Scholar

[4] Q. Meng, J. Li, J. Wang, Z. Zhang, L. Zhang, Materials and Design 30 (2009) 2379-2385.

Google Scholar

[5] M. Asadi, B. Ch. De Cooman, H. Palkowski, Materials Science and Engineering A 538 (2012) 42-52.

Google Scholar

[6] G.B. Li, Z.Z. Zhao, D. Tang, Advanced Materials Research 146-147 (2011) 1331-1335.

Google Scholar

[7] Z. Zhao, G. Jin, F. Niu, D. Tang, A. Zhao, Transactions of Nonferrous Metals Society of China 19 (2009) 563-568.

Google Scholar

[8] G. Jin, X. Yue, M. Zhao, S. Chen, Q. Li, G. Chang, A. Zhao, Advanced Materials Research 299-300 (2011) 359-363.

Google Scholar

[9] ThyssenKrupp Steel Europe, DP-W and DP-K dual-phase steels for the manufacture of complex high-strength structural elements (2009) 1-15.

Google Scholar

[10] M. Delincé, P.J. Jacques, T. Pardoen, Acta Materialia 54 (2006) 3395-3404.

Google Scholar

[11] H.K.D.H. Bhadeshia, Bainite in Steels, Institute of Materials, London, (1992).

Google Scholar

[12] S.H. Park, W.Y. Choo, In: Int. Symp. Hot Workability of Steels and Light Alloys composites,. Eds. H.J. McQueen, E.V. Konopleva, N.D. Ryan, Montreal, Canada, Canadian Institute of Mining, Metallurgy and Petroleum (1996) 493.

Google Scholar
