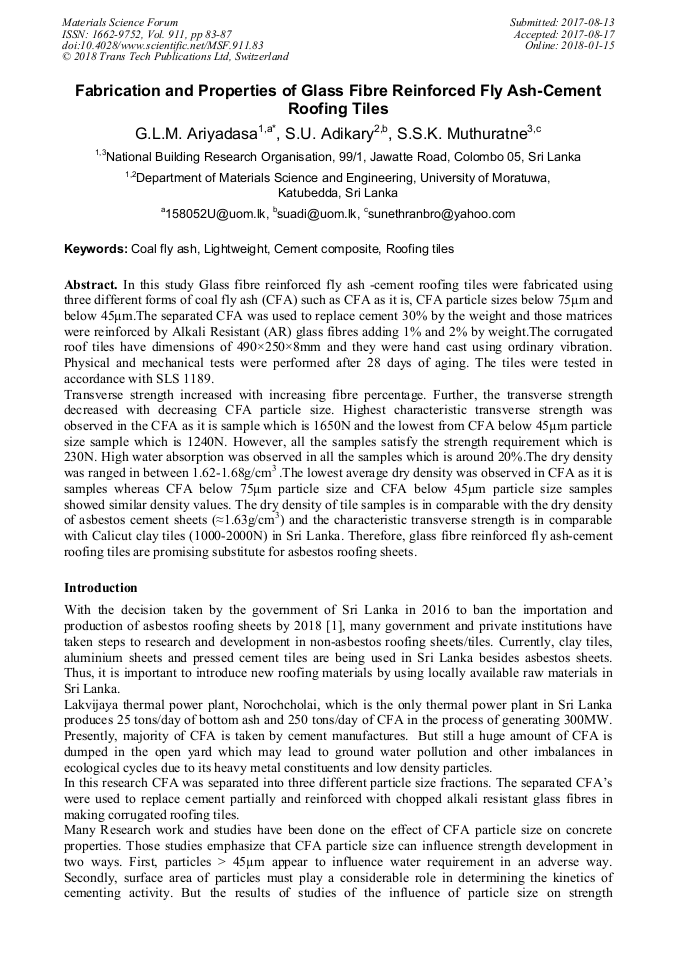

Fabrication and Properties of Glass Fibre Reinforced Fly Ash-Cement Roofing Tiles

Abstract:

In this study Glass fibre reinforced fly ash -cement roofing tiles were fabricated using three different forms of coal fly ash (CFA) such as CFA as it is, CFA particle sizes below 75μm and below 45μm.The separated CFA was used to replace cement 30% by the weight and those matrices were reinforced by Alkali Resistant (AR) glass fibres adding 1% and 2% by weight.The corrugated roof tiles have dimensions of 490×250×8mm and they were hand cast using ordinary vibration. Physical and mechanical tests were performed after 28 days of aging. The tiles were tested in accordance with SLS 1189. Transverse strength increased with increasing fibre percentage. Further, the transverse strength decreased with decreasing CFA particle size. Highest characteristic transverse strength was observed in the CFA as it is sample which is 1650N and the lowest from CFA below 45µm particle size sample which is 1240N. However, all the samples satisfy the strength requirement which is 230N. High water absorption was observed in all the samples which is around 20%.The dry density was ranged in between 1.62-1.68g/cm³ .The lowest average dry density was observed in CFA as it is samples whereas CFA below 75μm particle size and CFA below 45μm particle size samples showed similar density values. The dry density of tile samples is in comparable with the dry density of asbestos cement sheets (≈1.63g/cm³) and the characteristic transverse strength is in comparable with Calicut clay tiles (1000-2000N) in Sri Lanka. Therefore, glass fibre reinforced fly ash-cement roofing tiles are promising substitute for asbestos roofing sheets.

• Periodical: Materials Science Forum (Volume 911)
• Pages: 83-87
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.911.83
• Online since: January 2018
• Authors: G.L.M. Ariyadasa*, S. Upali Adikary, S.S.K. Muthuratne
• Keywords: Cement Composite, Coal Fly Ash, Lightweight, Roofing Tiles

References

[1] Steps to Ban Import of Asbestos Roofing Sheets by 2018, 2015. [Online]. Available: http: /www. president. gov. lk/steps-to-ban-import-of-asbestos-roofing-sheets-by-2018.

[2] Cabrera J. G, Hopkins C. J, Wooley G. R, Lee R. E, Shaw J, Plowman C, Fox H, Evaluation of the Properties of British Pulverized Fuel Ashes and Their Influence on the Strength of Concrete, in 2nd International Conference on the Use of Fly Ash, Silica Fume, Slag and Other Mineral By-products in Concrete, Madrid, (1986).

DOI: 10.14359/1078

[3] Blissett R. S, Rowson N. A, A Review of the Multi-Component Utilisation of Coal Fly Ash, Elsevier, p.5, (2012).

DOI: 10.1016/j.fuel.2012.03.024

[4] Arnon Bentur, Sidney Mindess, Fibre Reinforced Cementitious Composites, E & FN Spon, (1990).

[5] BS EN 450-1 : Fly Ash for Concrete. Definition, Specifications and Conformity Criteria, British Standard, (2012).

[6] SLS 1189 Part 2 : Specification for Concrete Roofing Semi-Sheets, Tiles and Fittings, Part 2 : Test Methods, SLSI, (1999).

[7] ASTM C 948-81 Standard Test Method for Dry and Wet Bulk Density, Water Absorption, and Apparent Porosity of Thin Sections of Glass-Fibre Reinforced Concrete, ASTM International, (2009).

DOI: 10.1520/c0948-81r01

[8] Ariyadasa G.L. M, Adikary S. U, Effect of Fly Ash Morphology on the Phyical Properties of Fly Ash Cement Composites, in Proceedings of the Peradeniya Univeristy International Research Sessions (iPURSE 2016).

[9] Ariyadasa G.L. M, Gunarathna N.T. H, Adikary S. U, Muthuratne S.S. K, Suitability of Fly Ash and Its Derivatives in the Making of Cement Based Roofing Materials, in The Institution of Engineers Sri Lanka Transactions 2016-Technical Papers, Colombo, (2016).

DOI: 10.4028/www.scientific.net/msf.911.83

[10] Ariyadasa G.L. M, Muthuratne S.S. K, Adikary S. U, Investigation the Physical, Mechanical and Thermal Properties of Common Roofing Materials in Sri Lanka, in Proceedings of 6th Annual NBRO Symposium-2015, Colombo, (2015).

[11] Ariyadasa G.L. M, Muthuratne S.S. K, Adikary S. U, Gamage K.G.N. T, Effect of Fly Ash Particle Size on the Properties of Fly Ash-Cement Roofing Tiles, in Proceedings of 7th International NBRO Symposium-2016, Colombo, (2016).

DOI: 10.4028/www.scientific.net/msf.911.83

[12] SLS 2 : Specification for Clay Roofing Tiles, SLSI, (1975).

[13] SLS 9 : Part 2: Specification for Asbestos-Cement Products : Corrugated Sheets, SLSI, (2001).

[14] ISO 10904: 2011(E) Fibre-cement corrugated sheets and fittings for roofing and cladding, ISO, (2011).

DOI: 10.3403/30179549u
