Study on Thickness Distribution and Spring Back Phenomena of Sheet-Bulk Forming for Aluminum Alloy

Abstract:

With the advance of technology, aluminum alloy has been widely used in industry. In this study, the formability and spring back phenomena of thick aluminum alloy sheet metal were investigated. Deform-3D and Simufact.forming software were used to simulate the sheet-bulk forming. To find the optimal element size, the convergence analysis method for mesh of simulation process was utilized. In addition, thickness distribution and spring back phenomena of the rectangular blank with round feature of corners were also evaluated. Simulation results were compared to scanning file that obtained via ATOS based on spring back phenomena from experiments. Study results show that the optimal element size is 2 mm. The cross section that is near binder area in x-direction and near quarter area of laptop keyboard in y-direction has minimum spring back. Solid-shell element is better than tetrahedral element for analyzing sheet bulk metal forming process.

You might also be interested in these eBooks

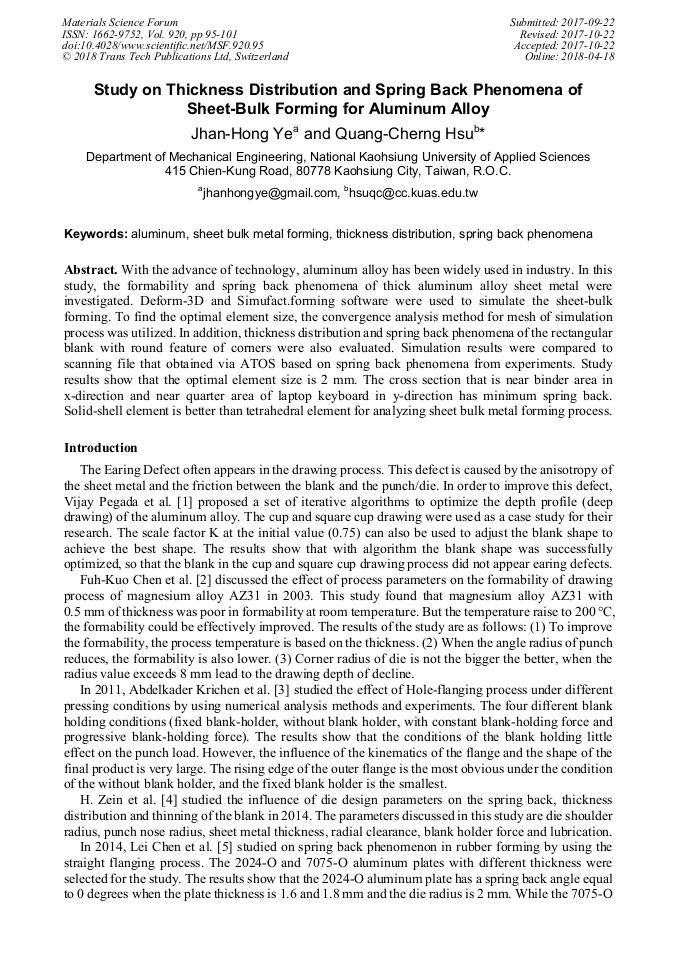

View Preview

Info:

Periodical:

Materials Science Forum (Volume 920)

Pages:

95-101

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.920.95

Citation:

Cite this paper

Online since:

April 2018

Authors:

Jhan Hong Ye, Quang Cherng Hsu*

Keywords:

Aluminum, Sheet Bulk Metal Forming, Spring Back Phenomena, Thickness Distribution

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] V. Pegada, Y. Chun, S. Santhanam, An algorithm for determining the optimal blank shape for the deep drawing of aluminum cups, Journal of Materials Processing Technology, Vol. 125-126 (2002) pp.743-750.

DOI: 10.1016/s0924-0136(02)00382-5

Google Scholar

[2] F.K. Chen, T.B. Huang, C.K. Chang, Deep drawing of square cups with magnesium alloy AZ31 sheets, International Journal of Machine Tools & Manufacture, Vol. 43 (2003) pp.1553-1559.

DOI: 10.1016/s0890-6955(03)00198-6

Google Scholar

[3] A. Krichen, A. Kacem and M. Hbaieb, Blank-holding effect on the hole-flanging process of sheet aluminum alloy, Journal of Materials Processing Technology, Vol. 211 (2011) pp.619-626.

DOI: 10.1016/j.jmatprotec.2010.11.018

Google Scholar

[4] H. Zein, M. El Sherbiny, M. Abd-Rabou, M. El shazly, Thinning and spring back prediction of sheet metal in the deep drawing process, Materials and Design, Vol. 53 (2014) pp.797-808.

DOI: 10.1016/j.matdes.2013.07.078

Google Scholar

[5] L. Chen, H. Chen, W. Guo, G. Chen, Q. Wang, 2014, Experimental and simulation studies of springback in rubber forming using aluminum sheet straight flanging process, Materials and Design, Vol. 54 (2014) pp.354-360.

DOI: 10.1016/j.matdes.2013.08.050

Google Scholar
