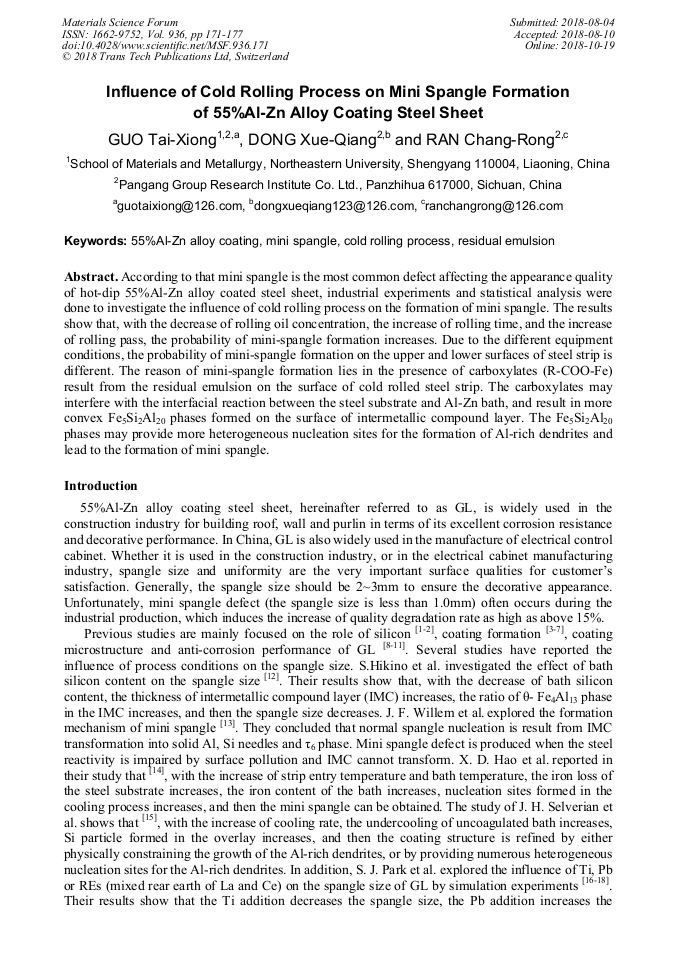

Influence of Cold Rolling Process on Mini Spangle Formation of 55%Al-Zn Alloy Coating Steel Sheet

Abstract:

According to that mini spangle is the most common defect affecting the appearance quality of hot-dip 55%Al-Zn alloy coated steel sheet, industrial experiments and statistical analysis were done to investigate the influence of cold rolling process on the formation of mini spangle. The results show that, with the decrease of rolling oil concentration, the increase of rolling time, and the increase of rolling pass, the probability of mini-spangle formation increases. Due to the different equipment conditions, the probability of mini-spangle formation on the upper and lower surfaces of steel strip is different. The reason of mini-spangle formation lies in the presence of carboxylates (R-COO-Fe) result from the residual emulsion on the surface of cold rolled steel strip. The carboxylates may interfere with the interfacial reaction between the steel substrate and Al-Zn bath, and result in more convex Fe₅Si₂Al₂₀ phases formed on the surface of intermetallic compound layer. The Fe₅Si₂Al₂₀ phases may provide more heterogeneous nucleation sites for the formation of Al-rich dendrites and lead to the formation of mini spangle.

• Periodical: Materials Science Forum (Volume 936)
• Pages: 171-177
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.936.171
• Online since: October 2018
• Authors: Tai Xiong Guo*, Xue Qiang Dong, Chang Rong Ran
• Keywords: 55%Al-Zn Alloy Coating, Cold Rolling Process, Mini Spangle, Residual Emulsion

References

[1] R. Y. Chen, D. J. Willis. The Behavior of Silicon in the Solidification of Zn-55Al-1.6Si Coating on Steel [J]. Metallurgical and Materials Transactions A, 2005, 36A: 117-128.

DOI: 10.1007/s11661-005-0144-x

[2] B. Xu, D. Phelan, R. Dippenaar, etc. Role of Silicon in Solidification Microstructure in Hot-dipped 55 wt. %Al-Zn-Si Coatings [J]. Materials Science and Engineering A, 2008, 473: 76～80.

DOI: 10.1016/j.msea.2007.03.110

[3] D. Phelan, B. J. Xu, R. Dippenaar. Formation of Intermetallic Phase on 55wt%Al-Zn-Si Hot Dip Strip [J]. Materials Science and Engineering, 2006, 420A: 144～149.

DOI: 10.1016/j.msea.2006.01.085

[4] D. C. Bae, H. S. Shin, S. K. Chang. Influence of Processing Variables on Coating Characteristics of 55%Al-Zn Coated Steel Sheet [J]. CAMP-ISIJ, 1996, 9: 521.

[5] B. J. Xu, D. Phelan, R. Dippenaar, etc. Nucleation during Solidification of 55wt%Al-Zn-Si Alloy Coatings [C]. Chicago, USA: Galvatech'04, 2004: 713-721.

[6] A. Semoroz, Y. Durandet, M.Rappaz. EBSD Characterization of Dendrite Growth Directions, Texture and Misorientations in Hot-dipped Al-Zn-Si Coatings [J]. Acta mater, 2001, 49: 529～541.

DOI: 10.1016/s1359-6454(00)00322-0

[7] R. Y. Chen, D. Yuen. Microstructure and Crystallography of Zn-55Al-1.6Si Coating Spangle on Steel [J]. Metallurgical and Materials Transactions A, 2012, 43A: 4711-4723.

DOI: 10.1007/s11661-012-1259-5

[8] A. Humayun. Production & Performance of 55%Al-Zn Coated Sheet [C]. Chicago, USA: Galvatech'95, 1995: 443-447.

[9] E. Palma, J. M. Puente, M. Morcillo. The Atmospheric Corrosion Mechanism of 55%Al-Zn coating on Steel [J]. Corrosion Science, 1998, 40(1): 61-68.

DOI: 10.1016/s0010-938x(97)00112-1

[10] A. R. Moreira, Z. Panossian, P. L. Camargo, etc. Zn/55Al Coating Microstructure and Corrosion mechanism [J]. Corrosion Science, 2006, 48: 564-576.

DOI: 10.1016/j.corsci.2005.02.012

[11] P. Qiu, C. Leygraf, I. O. Wallinder. Evolution of Corrosion Products and Metal Release from Galvalume Coatings on Steel during Short and Long-term Atmospheric Exposures [J]. Materials Chemistry and Physics, 2012, 133: 419-428.

DOI: 10.1016/j.matchemphys.2012.01.054

[12] S. Hikino, T. Matsunaga, M. Aral, etc. Influence of Coating Condition on Spangles of 55%Al-Zn Alloy Coated Steel Sheet [J]. La revue de Metallurgle-ATS-JS. 1997, 12 (1): 168-169.

[13] J. F. Willem, S. Claessens, H. Cormil, etc. Solidification Mechanisms of Aluzinc Coatings Effect on Spangle Size [C]. Brussels, Belgium: Galvatech'01, (2001).

[14] X. D. Hao, B. K. Chen, S. M. Jiang, etc. Study on Galvalume Spangle Control Process [C]. Beijing, China: 2011 IEEE, (2011).

[15] J. H. Selverian, M. R. Notis, A. R. Marder. The Microstructure of 55%Al-Zn-Si (Galvalume) Hot Dip Coatings [J]. Materials Engineering, 1987, 9(2): 133-140.

DOI: 10.1007/bf02833702

[16] S. J. Park, K. W. Jung, H. S. Koh, etc. Production of Heavy Gauged HY-Galvalume in Hyundai HYSCO [J]. Corrosion Science and Technology, 2011, 10(5): 12-17.

[17] T. X. Guo, X. Q. Dong, S. H. Deng, etc. Influence of Titanium on Hot-dip 55%Al-Zn Alloy Coating. In: Sheng ﹠Wang (ed.), Manufacturing and Engineering Technology, Taylor﹠ Francis Group, London, UK. 2015, 283-286.

[18] T. X. Guo, C. S. Liu, Y. L. Zhou. Influence of Rare Earth on Hot-dipped 55%Al-Zn Alloy Coating [J]. Advanced Materials Research, 2013, 774-776: 1132-1136.

DOI: 10.4028/www.scientific.net/amr.774-776.1132

[19] Y. L. Ren, N. M. Wen, Z. P. Zhu, etc. Study of the Spangle Size of 55%AI-Zn-Si Steel [J]. Baosteel Technical Research, 20141, 8(4), 41-47.
