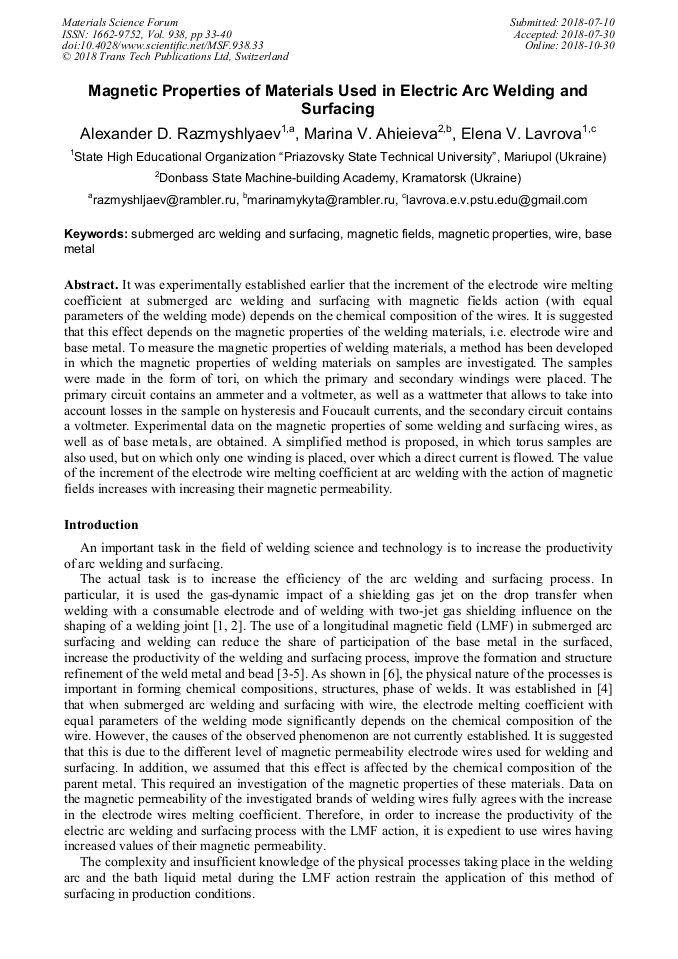

Magnetic Properties of Materials Used in Electric Arc Welding and Surfacing

Abstract:

It was experimentally established earlier that the increment of the electrode wire melting coefficient at submerged arc welding and surfacing with magnetic fields action (with equal parameters of the welding mode) depends on the chemical composition of the wires. It is suggested that this effect depends on the magnetic properties of the welding materials, i.e. electrode wire and base metal. To measure the magnetic properties of welding materials, a method has been developed in which the magnetic properties of welding materials on samples are investigated. The samples were made in the form of tori, on which the primary and secondary windings were placed. The primary circuit contains an ammeter and a voltmeter, as well as a wattmeter that allows to take into account losses in the sample on hysteresis and Foucault currents, and the secondary circuit contains a voltmeter. Experimental data on the magnetic properties of some welding and surfacing wires, as well as of base metals, are obtained. A simplified method is proposed, in which torus samples are also used, but on which only one winding is placed, over which a direct current is flowed. The value of the increment of the electrode wire melting coefficient at arc welding with the action of magnetic fields increases with increasing their magnetic permeability.

• Periodical: Materials Science Forum (Volume 938)
• Pages: 33-40
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.938.33
• Online since: October 2018
• Authors: Alexander D. Razmyshlyaev*, Marina V. Ahieieva, Elena V. Lavrova
• Keywords: Base Metal, Magnetic Field, Magnetic Properties, Submerged Arc Surfacing, Submerged Arc Welding, Wire

References

[1] Chinakhov D.A., Zuev A.V., Filimonenko A.G. Gas-dynamic Impact of a Shielding Gas Jet on the Drop Transfer When Welding with a Consumable Electrode. Advanced Materials Research Vol. 1040 (2014) pp.850-853. www.scientific.net/AMR.1040.850.

DOI: 10.4028/www.scientific.net/amr.1040.850

[2] Chinakhov D.A., Chinakhova E.D., Gotovschik Y.M., Grichin S.V. Influence of welding with two-jet gas shielding on the shaping of a welding joint. IOP Conf. Series: Materials Science and Engineering 125 (2016) 012013.

DOI: 10.1088/1757-899x/125/1/012013

[3] V.P. Chernysh, V.D. Kuznetsov, A.N. Briskman, G.M. Shelenkov. Welding with electromagnetic stirring, Kiev, (1983).

[4] A.D. Razmyshlyaev, M.V. Mironova. Magnetic control of formation of beads and welds at arc surfacing and welding, Mariupol, (2009).

[5] Razmyshlyaev A.D. Features of arc surfacing process in a longitudinal magnetic field / A.D. Razmyshlyaev, M.V. Ahieieva // Applied Mechanics and Materials. – Vol.682 (2014). – p.313–318.

DOI: 10.4028/www.scientific.net/amm.682.313

[6] Il'yaschenko D.P., Chinakhov D.A., Danilov V.I., Schlyakhova G.V., Gotovschik Y.M. Physical Nature of the Processes in Forming Structures, Phase and Chemical Compositions of Medium-Carbon Steel Welds. IOP Conf. Series: Materials Science and Engineering. 91 (2015) 012006.

DOI: 10.1088/1757-899x/91/1/012006

[7] M.A. Lazarenko, A.D. Razmyshlyaev, E.A. Chichkarev. Calculation of control magnetic fields for the welding and surfacing processes on the computer // Herald PSTU. Series: Engineering: Coll. of Sc. Works, Mariupol. – 8 (1999). – pp.147-150.

[8] A.D. Razmyshlyaev, V.R. Mayevskiy, S.M. Sidorenko. Calculation of the magnetic field induction of a solenoid with a ferromagnetic core at arc surfacing // Avtomaticheskaya svarka. – 2001. – No. 8. – pp.22-24.

[9] A.D. Razmyshlyaev, P.A. Vydmysh, M.V. Ahieieva. Automatic submerged arc welding with external magnetic field effect, Mariupol, (2017).

[10] A.A. Preobrazhensky, E.H. Bishard. Magnetic materials and elements, Moscow, (1986).

[11] V.I. Chechernikov. Magnetic measurements, Moscow, (1969).

[12] B.H. Livshits, V.S. Krapotkin, Ya.L. Lineckiy. Physical properties of metals and alloys, Moscow, (1980).

[13] L.A. Bessonov. Theoretical bases of electrical engineering. Electromagnetic field, Moscow, (1986).

[14] Permanent magnets. Reference book / Ed. Yu.M. Pyatin, Moscow, (1980).
