Mechanical Property of Magnesium Alloy Surface with Dense Oxide

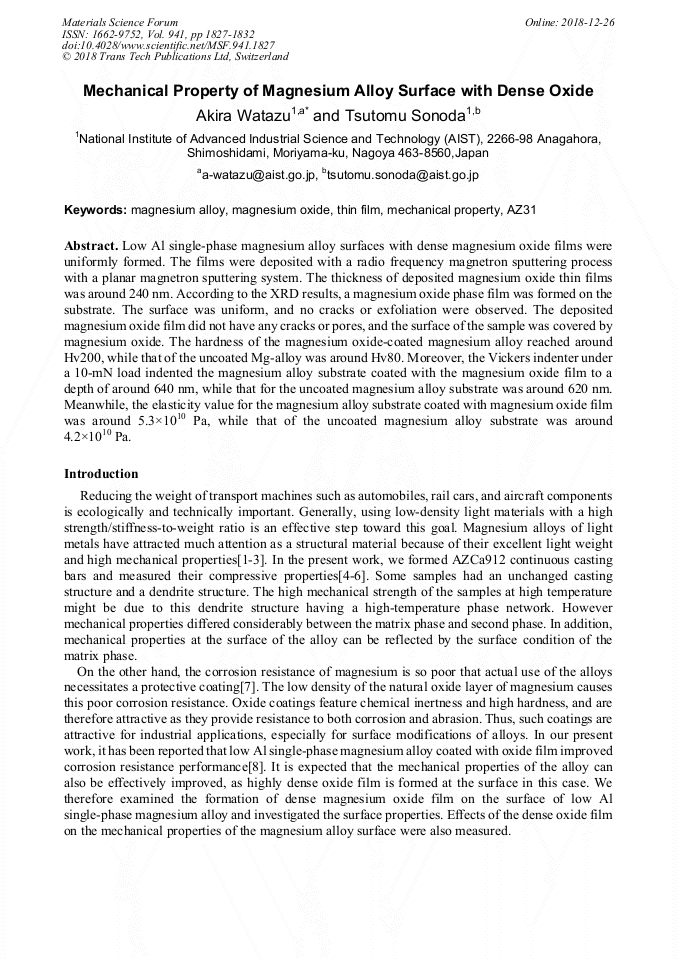

Abstract:

Low Al single-phase magnesium alloy surfaces with dense magnesium oxide films were uniformly formed. The films were deposited with a radio frequency magnetron sputtering process with a planar magnetron sputtering system. The thickness of deposited magnesium oxide thin films was around 240 nm. According to the XRD results, a magnesium oxide phase film was formed on the substrate. The surface was uniform, and no cracks or exfoliation were observed. The deposited magnesium oxide film did not have any cracks or pores, and the surface of the sample was covered by magnesium oxide. The hardness of the magnesium oxide-coated magnesium alloy reached around Hv200, while that of the uncoated Mg-alloy was around Hv80. Moreover, the Vickers indenter under a 10-mN load indented the magnesium alloy substrate coated with the magnesium oxide film to a depth of around 640 nm, while that for the uncoated magnesium alloy substrate was around 620 nm. Meanwhile, the elasticity value for the magnesium alloy substrate coated with magnesium oxide film was around 5.3×10¹⁰ Pa, while that of the uncoated magnesium alloy substrate was around 4.2×10¹⁰ Pa.

• Periodical: Materials Science Forum (Volume 941)
• Pages: 1827-1832
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.941.1827
• Online since: December 2018
• Authors: Akira Watazu*, Tsutomu Sonoda
• Keywords: AZ31, Magnesium Alloy, Magnesium Oxide, Mechanical Properties, Thin Film

References

[1] T. Ebert, B. L. Mordike, Magnesium Properties — applications — potential, Mater. Sci. Eng. A 302 (2001) 37–45.

[2] Chiang LF, Hosokawa H, Wang JY, et al., Investigation on Dynamic Friction Properties of Extruded AZ31 Magnesium Alloy Using by Ring Upsetting Method, Mater. Trans. 51 (2010) 1249-1254.

DOI: 10.2320/matertrans.p-m2010811

[3] J. M. Peng, M. B. Yang, As cast microstructure and mechanical properties of Mg–6Al–1Zn–0·7Si magnesium alloys modified by Sn and Sr additions, Inter. J. Cast Met. Res. 12 (2013) 103-109.

DOI: 10.1179/1743133611y.0000000031

[4] A. Watazu, M. Hakamada, H. Iwasaki H et al., Grain Refinement of Mg-Al-Zn Alloy Bar during Hot Compression., Mater. Sci. Forum 706-709 (2012) 1267-1272.

DOI: 10.4028/www.scientific.net/msf.706-709.1267

[5] A. Watazu, N. Omura, K. Miwa, Microstructure Change of AZCa912 Magnesium Alloy Continuous Casting Bar by Hot Compression, Mater. Sci. Forum 783-786 (2014) 521-526.

DOI: 10.4028/www.scientific.net/msf.783-786.521

[6] A. Watazu, N. Omura, K. Miwa, Microstructure of AZCa912 continuous casting bar after hot compression, Mater. Sci. Forum 879 (2016) 2567-2572.

DOI: 10.4028/www.scientific.net/msf.879.2567

[7] G. L. Song, A. Atrens, Corrosion Mechanisms of Magnesium Alloys, Adv. Eng. Mater. 1 (1999) 11-33.

[8] T. Sonoda, A. Watazu, Proceedings of the Fourteenth International Symposium on Sputtering and Plasma Processes (ISSP 2017) 1 (2017) 229-231.
