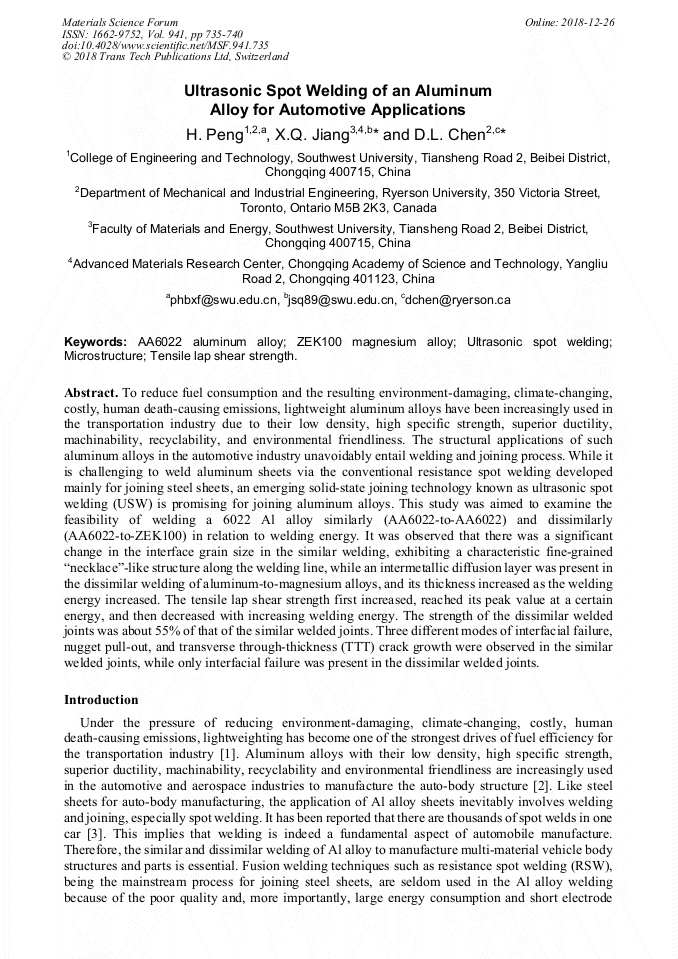

Ultrasonic Spot Welding of an Aluminum Alloy for Automotive Applications

Abstract:

To reduce fuel consumption and the resulting environment-damaging, climate-changing, costly, human death-causing emissions, lightweight aluminum alloys have been increasingly used in the transportation industry due to their low density, high specific strength, superior ductility, machinability, recyclability, and environmental friendliness. The structural applications of such aluminum alloys in the automotive industry unavoidably entail welding and joining process. While it is challenging to weld aluminum sheets via the conventional resistance spot welding developed mainly for joining steel sheets, an emerging solid-state joining technology known as ultrasonic spot welding (USW) is promising for joining aluminum alloys. This study was aimed to examine the feasibility of welding a 6022 Al alloy similarly (AA6022-to-AA6022) and dissimilarly (AA6022-to-ZEK100) in relation to welding energy. It was observed that there was a significant change in the interface grain size in the similar welding, exhibiting a characteristic fine-grained “necklace”-like structure along the welding line, while an intermetallic diffusion layer was present in the dissimilar welding of aluminum-to-magnesium alloys, and its thickness increased as the welding energy increased. The tensile lap shear strength first increased, reached its peak value at a certain energy, and then decreased with increasing welding energy. The strength of the dissimilar welded joints was about 55% of that of the similar welded joints. Three different modes of interfacial failure, nugget pull-out, and transverse through-thickness (TTT) crack growth were observed in the similar welded joints, while only interfacial failure was present in the dissimilar welded joints.

• Periodical: Materials Science Forum (Volume 941)
• Pages: 735-740
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.941.735
• Online since: December 2018
• Authors: He Peng, Xianquan Jiang, Dao Lun Chen*
• Keywords: AA6022 Aluminum Alloy, Microstructure, Tensile Lap Shear Strength, Ultrasonic Spot Welding, ZEK100 Magnesium Alloy

References

[1] F. Creutzig, et al., Transport: A roadblock to climate change mitigation? Science 350 (2015) 911-912.

[2] W.J. Joost, Reducing vehicle weight and improving US energy efficiency using integrated computational materials engineering, JOM 64 (2012) 1032-1038.

DOI: 10.1007/s11837-012-0424-z

[3] X. Cui, S. Wang, S.J. Hu, A method for optimal design of automotive body assembly using multi-material construction, Mater. Des. 29 (2008) 381-387.

DOI: 10.1016/j.matdes.2007.01.024

[4] L.Y. Chen, et al., Processing and properties of magnesium containing a dense uniform dispersion of nanoparticles, Nature 528 (2015) 539-543.

[5] Z.L. Ni, F.X. Ye, Weldability and mechanical properties of ultrasonic welded aluminum to nickel joints, Mater. Lett. 185 (2016) 204-207.

DOI: 10.1016/j.matlet.2016.08.129

[6] A. Macwan, D.L. Chen, Microstructure and mechanical properties of ultrasonic spot welded copper-to-magnesium alloy joints, Mater. Des. 84 (2015) 261-269.

DOI: 10.1016/j.matdes.2015.06.104

[7] H. Peng, D.L. Chen, X.Q. Jiang, Microstructure and mechanical properties of an ultrasonic spot welded aluminum alloy: Effect of welding energy, Materials 10 (2017) 449.

DOI: 10.3390/ma10050449

[8] A. Macwan, D.L. Chen, Similar and dissimilar ultrasonic spot welding of rare-earth containing ZEK100 magnesium alloy, Magnesium Technology 2016, pp.109-112.

DOI: 10.1002/9781119274803.ch23

[9] A. Macwan, D.L. Chen, Ultrasonic spot welding of rare-earth containing ZEK100 magnesium alloy to 5754 aluminum alloy, Mater. Sci. Eng. A 666 (2016) 139-148.

DOI: 10.1016/j.msea.2016.04.060

[10] A. Kicukov, A. Gursel, Ultrasonic welding of dissimilar materials: A review, Peri. Eng. Nat. Sci. 3 (2015) 28-36.

[11] D. Bakavos, P.B. Prangnell, Mechanisms of joint and microstructure formation in high power ultrasonic spot welding 6111 aluminum automotive sheet, Mater. Sci. Eng. A 527 (2010) 6320-6334.

DOI: 10.1016/j.msea.2010.06.038

[12] V.K. Patel, S.D. Bhole, D.L. Chen, Microstructure and mechanical properties of dissimilar welded Mg-Al joints by USW technique, Sci. Technol. Weld. Join. 17 (2012) 202-206.

DOI: 10.1179/1362171811y.0000000094

[13] F.A. Mirza, A. Macwan, S.D. Bhole, D.L. Chen, Microstructure and fatigue properties of ultrasonic spot welded joints of aluminum 5754 alloy, JOM 68 (2016) 1465-1475.

DOI: 10.1007/s11837-015-1796-7

[14] C.Y. Zhang, D.L. Chen, A.A. Luo, Joining 5754 automotive aluminum alloy 2-mm-thick sheets using ultrasonic spot welding, Weld. J. 93 (2014) 131-138.

[15] A. Panteli, Y.C. Chen, D. Strong, X. Zhang, P.B. Prangnell, Optimization of aluminum-to-magnesium ultrasonic spot welding, JOM 64 (2012) 414-420.

DOI: 10.1007/s11837-012-0268-6

[16] Z.L. Ni, F.X. Ye, Weldability and mechanical properties of ultrasonic joining of aluminum to copper alloy with an interlayer, Mater. Lett. 182 (2016) 19-22.

DOI: 10.1016/j.matlet.2016.06.071
