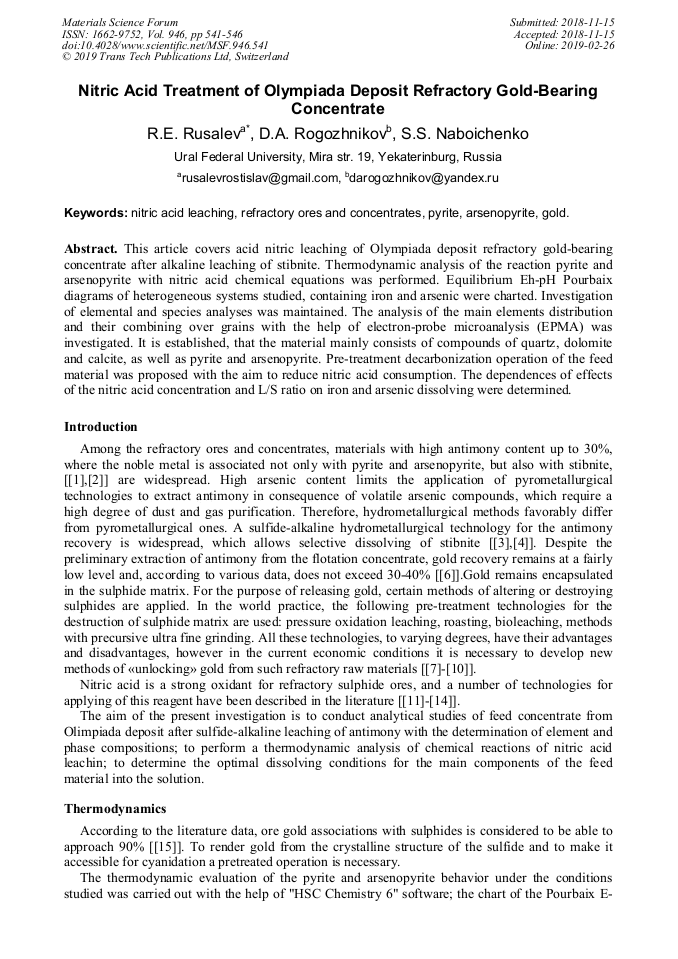

Nitric Acid Treatment of Olympiada Deposit Refractory Gold-Bearing Concentrate

Abstract:

This article covers acid nitric leaching of Olympiada deposit refractory gold-bearing concentrate after alkaline leaching of stibnite. Thermodynamic analysis of the reaction pyrite and arsenopyrite with nitric acid chemical equations was performed. Equilibrium Eh-pH Pourbaix diagrams of heterogeneous systems studied, containing iron and arsenic were charted. Investigation of elemental and species analyses was maintained. The analysis of the main elements distribution and their combining over grains with the help of electron-probe microanalysis (EPMA) was investigated. It is established, that the material mainly consists of compounds of quartz, dolomite and calcite, as well as pyrite and arsenopyrite. Pre-treatment decarbonization operation of the feed material was proposed with the aim to reduce nitric acid consumption. The dependences of effects of the nitric acid concentration and L/S ratio on iron and arsenic dissolving were determined.

• Periodical: Materials Science Forum (Volume 946)
• Pages: 541-546
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.946.541
• Online since: February 2019
• Authors: R.E. Rusalev*, Denis A. Rogozhnikov, Stanislav S. Naboichenko
• Keywords: Arsenopyrite, Concentrates, Gold, Nitric Acid Leaching, Pyrite, Refractory Ores

References

[1] M.V. Popsuev, L.F. Skorik, Features of gold-antimony ore processing. The Way of Science – International scientific journal, 4(26) (2016) 47-50.

[2] V.V. Lodeishchikov, Technology of gold and silver recovery from refractory ores. Irkutsk: Irgiredmet, (1999).

[3] C.G. Anderson, L.E. Krys, Leaching of antimony from a refractory precious metals concentrate SME–AIME Meeting Hydrometallurgy‐Fundamentals, Technology and Innovations, Littleton (1993) 341-365.

[4] S. Ubaldini, F. Veglio, P. Fornari, Process flow–sheet for gold antimony recovery from stibnite. Hydrometallurgy, 57 (2000) 187-199.

DOI: 10.1016/s0304-386x(00)00107-9

[5] D.A. Rogozhnikov, Thermodynamics processes of nitric acid leaching of multicomponent middlings. Contemporary Engineering Sciences. Vol. 7, Issue 33-36 (2014) 1789-1792.

DOI: 10.12988/ces.2014.410189

[6] R.E. Rusalev, S.V. Grokhovskii, D.A. Rogozhnikov, S.S. Naboichenko, Investigation and development of the technology of processing gold-antimony flotation concentrates, J. Sib. Fed. Univ. Chem., 11(1) (2018) 110-121.

[7] M.A. Meretukov, Metallurgy of precious metals. Foreign experience. Moscow: Metallurgy, (1991).

[8] Yu.A. Kotlyar, M.A. Meretukov, L.S. Strizhko, Metallurgy of precious metals. Moscow: MISIS, (2005).

[9] B.A. Zakharov, M.A. Meretukov, GOLD: refractory ores. Moscow: Publishing hous «Ore&Metals», (2013).

[10] P. Miller, A. Brown, Bacterial oxidation of refractory gold concentrates. Developments in Mineral Processing, 15 (2005) 371-402.

DOI: 10.1016/s0167-4528(05)15016-9

[11] D.V. Sudakov, S.Yu. Chelnokov, R.E. Rusalev, A.N. Elshin, Technology and Equipment for Hydrometallurgical Oxidation of Refractory Gold-Bearing Concentrates (ES-Process) Tsvetnye Metally, 3 (2017) 40-44.

DOI: 10.17580/tsm.2017.03.06

[12] D.A. Rogozhnikov, Nitric Acid Leaching of Copper-Zinc Sulfide Middlings. Metallurgist. 60(1-2) (2016) 229-233.

DOI: 10.1007/s11015-016-0278-7

[13] D.-X. Li, Developments on the pretreatment of refractory gold minerals by nitric acid. World Gold Conference 2009, The Southern African Institute of Mining and Metallurgy, (2009) 145-150.

[14] Ozge Gok, Oxidative leaching of sulfide ores with the participation of nitrogen species-a review. Mining Engineering Department. Dokuz Eylul University. Izmir, Turkey, (2010).

DOI: 10.5152/tjg.2022.21484

[15] M.D. Adams. Advances in Gold Ore Processing. Amsterdam, ELSIVER B.V., (2005).

[16] A.V. Volkov, A.D. Genkin, V.I. Goncharov, About the forms of gold in the ores of the Natalkinskoye and Maiskoye deposits (the North-East of Russia) Pacific Geology, 25(6) (2007) 18-29.

[17] Information on: http://webmineral.ru/deposits/item.php?id=1251.

[18] G. Gao, D. Li, Y. Zhou, X. Sun, W. Sun, Kinetics of high-sulphur and higharsenic refractory gold concentrate oxidation by dilute nitric acid under mild conditions. Minerals Engineering, 22 (2009) 111-115.

DOI: 10.1016/j.mineng.2008.05.001

[19] Y.Y. Kadioglu, K. Semra, B. Samih, Kinetics of pyrite oxidation in aqueous suspension by nitric acid. Fuel Processing Technology, 41(3) (1995) 273-287.

DOI: 10.1016/0378-3820(94)00101-x

[20] G. Levitan, Gold deposits of the CIS. Xlibris, (2008).
