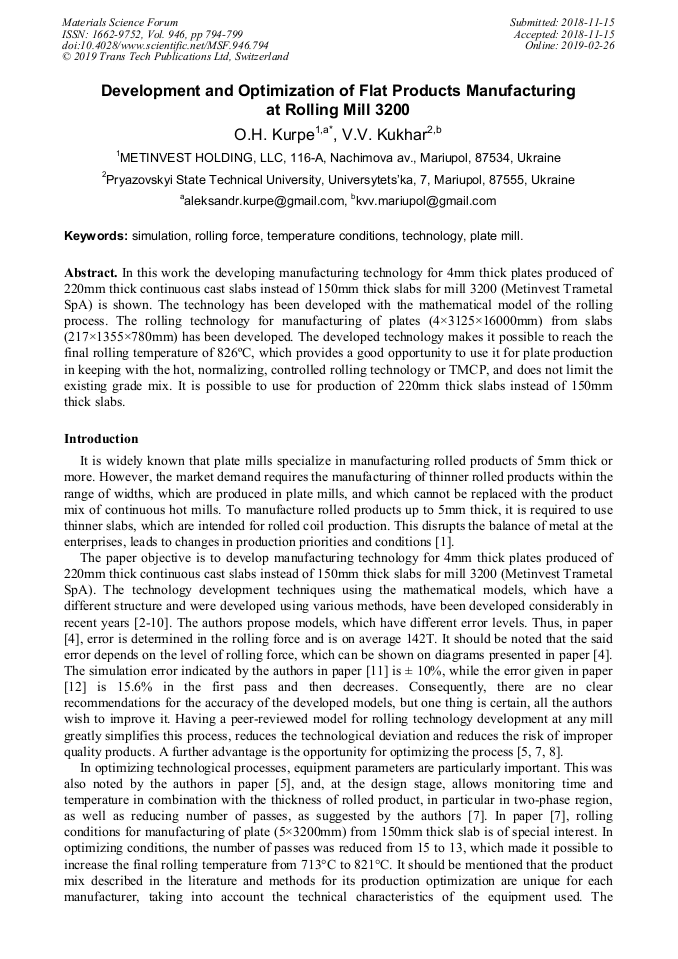

Development and Optimization of Flat Products Manufacturing at Rolling Mill 3200

Abstract:

In this work the developing manufacturing technology for 4mm thick plates produced of 220mm thick continuous cast slabs instead of 150mm thick slabs for mill 3200 (Metinvest Trametal SpA) is shown. The technology has been developed with the mathematical model of the rolling process. Тhe rolling technology for manufacturing of plates (4×3125×16000mm) from slabs (217×1355×780mm) has been developed. The developed technology makes it possible to reach the final rolling temperature of 826oС, which provides a good opportunity to use it for plate production in keeping with the hot, normalizing, controlled rolling technology or TMCP, and does not limit the existing grade mix. It is possible to use for production of 220mm thick slabs instead of 150mm thick slabs.

• Periodical: Materials Science Forum (Volume 946)
• Pages: 794-799
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.946.794
• Online since: February 2019
• Authors: Oleksandr H. Kurpe*, Volodymyr V. Kukhar
• Keywords: Plate Mill, Rolling Force, Simulation, Technology, Temperature Conditions

References

[1] V. Kukhar, N. Yelistratova, V. Burko, Y. Nizhelska, O. Aksionova, Estimation of Occupation Safety Risks at Energetic Sector of Iron and Steel Works, International Journal of Engineering & Technology (UAE),  7(2.23) (2018) 216-220.

DOI: 10.14419/ijet.v7i2.23.11922

[2] A.G. Kurpe, Modelirovanie tehnologicheskogo processa prokatki tolstyh listov na stane 3600 OAO MK AZOVSTAL,, avtoreferat diss. na soiskanie uchenoj stepeni kandidata tehnicheskih nauk (05.16.05), FGUP CNIIChermet im. I.P. Bardina, Moscow, 2006, in rus.

[3] A.N. Smirnov, S.V. Kuberskii, E.N. Smirnov, A.P. Verzilov, E.N. Maksaev, Influence of meniscus fluctuations in the mold on crust formation in slab casting, Steel Translation, 47(7) (2017) 478-482.

DOI: 10.3103/s0967091217070129

[4] D.M. Lee, Applications to Improve Rolling Force Prediction Ability in a Plate Mill, IFAC Proceedings Volumes, 37(15) (2004) 65-70.

DOI: 10.1016/s1474-6670(17)31001-7

[5] HU Xian-lei, ZHAO Zhong, WANG Jun, WANG Zhao-dong, LIU Xiang-hua, WANG Guo-dong, Optimization of Holding Temperature and Holding Thickness for Controlled Rolling on Plate Mill, Journal of Iron and Steel Research, International, 13(3) (2006) 21-25.

DOI: 10.1016/s1006-706x(06)60055-1

[6] J.G. Lenard, Mathematical and Physical Modelling of the Flat Rolling Process, Chapter 3, in: Primer on Flat Rolling, Elsevier Ltd, (2007) 36-98.

DOI: 10.1016/b978-008045319-4/50005-x

[7] P. Mantyla, R. Korhonen, N.-G. Jonsson, Improved Thickness and Shape Accuracy with Advanced Pass Scheduling in Plate Rolling, Journal of Materials Processing Technology, Elsevier. 34 (1992) 255-263.

DOI: 10.1016/0924-0136(92)90115-9

[8] QI Xiang-dong, WANG Tao, XIAO Hong, Optimization of Pass Schedule in Hot Strip Rolling, Journal of Iron and Steel Research, International. 19(8) (2012) 25-28.

DOI: 10.1016/s1006-706x(12)60135-6

[9] A.V. Grushko, V.V. Kukhar, Yu.O. Slobodyanyuk, Phenomenological Model of Low-Carbon Steels Hardening during Multistage Drawing, Solid State Phenomena, 265 (2017) 114-123.

DOI: 10.4028/www.scientific.net/ssp.265.114

[10] S. Yue, The Mathematical Modelling of Hot Rolling of Steel, in: J.G. Lenard (Ed.), Metal Forming Science and Practice 9, Elsevier Science Ltd., Chapter 11, 2002, pp.213-226.

DOI: 10.1016/b978-008044024-8/50011-4

[11] W.Y.D. Yuen, A. Dixon, D.N. Nguyen, The modelling of the mechanics of deformation in fiat rolling, Journal of Materials Processing Technology, 60 (1996) 87-94.

DOI: 10.1016/0924-0136(96)02312-6

[12] ZHANG Jin-ling, CUI Zhen-shan, Prediction of Velocity and Deformation Fields During Multipass Plate Hot Rolling by Novel Mixed Analytical-Numerical Method, Journal of Iron and Steel Research, International, 18(7) (2011) 20-27.

DOI: 10.1016/s1006-706x(11)60085-x
