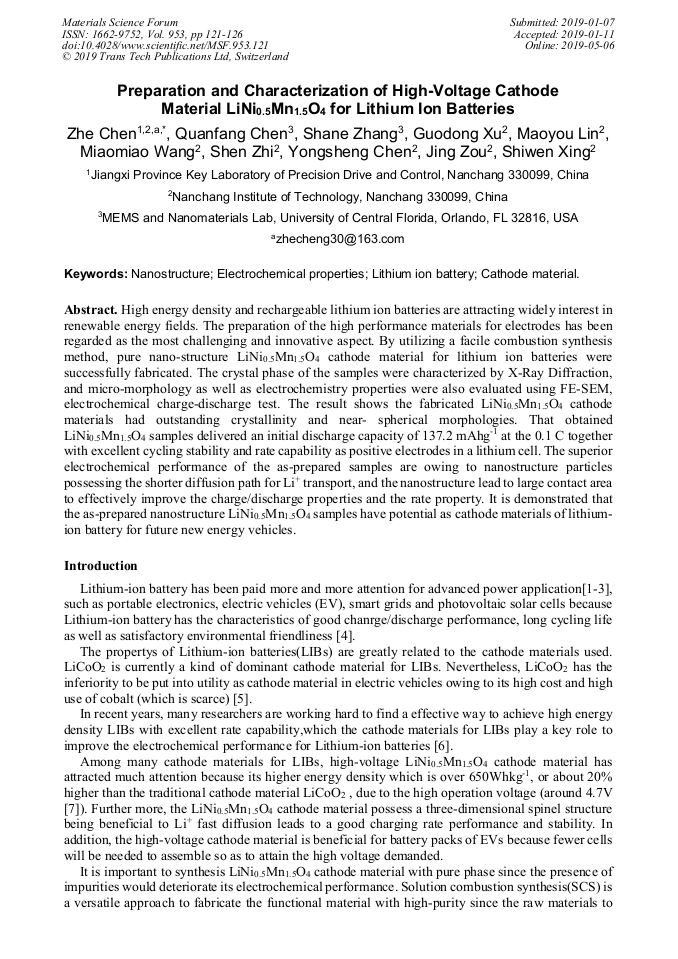

Preparation and Characterization of High-Voltage Cathode Material LiNi_0.5Mn_1.5O₄ for Lithium Ion Batteries

Abstract:

High energy density and rechargeable lithium ion batteries are attracting widely interest in renewable energy fields. The preparation of the high performance materials for electrodes has been regarded as the most challenging and innovative aspect. By utilizing a facile combustion synthesis method, pure nanostructure LiNi_0.5Mn_1.5O₄ cathode material for lithium ion batteries were successfully fabricated. The crystal phase of the samples were characterized by X-Ray Diffraction, and micro-morphology as well as electrochemistry properties were also evaluated using FE-SEM, electrochemical charge-discharge test. The result shows the fabricated LiNi_0.5Mn_1.5O₄ cathode materials had outstanding crystallinity and near-spherical morphologies. That obtained LiNi_0.5Mn_1.5O₄ samples delivered an initial discharge capacity of 137.2 mAhg^-1 at the 0.1 C together with excellent cycling stability and rate capability as positive electrodes in a lithium cell. The superior electrochemical performance of the as-prepared samples are owing to nanostructure particles possessing the shorter diffusion path for Li⁺ transport, and the nanostructure lead to large contact area to effectively improve the charge/discharge properties and the rate property. It is demonstrated that the as-prepared nanostructure LiNi_0.5Mn_1.5O₄ samples have potential as cathode materials of lithium-ion battery for future new energy vehicles.

• Periodical: Materials Science Forum (Volume 953)
• Pages: 121-126
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.953.121
• Online since: May 2019
• Authors: Zhe Chen*, Quan Fang Chen, Sha Ne Zhang, Guo Dong Xu, Mao You Lin, Miao Miao Wang, Shen Zhi, Yong Sheng Chen, Jing Zou, Shi Wen Xing
• Keywords: Cathode Material, Electrochemical Properties, Lithium Ion Battery, Nanostructure

References

[1] X.X. Xu, J. Yang, Y.Q. Wang, Y.N. NuLi, J.L. Wang. LiNi0.5Mn1.5O3.975F0.05 as novel 5V cathode material [J]. Journal of Power Sources, 2007, (174):1113–1116.

DOI: 10.1016/j.jpowsour.2007.06.101

[2] Kisuk Kang, Ying Shirley Meng, Julien Bre´ger, Clare P. Grey, Gerbrand Ceder. Electrodes with High Power and High Capacity for Rechargeable Lithium Batteries [J]. Science, 2006, 311:977-980.

DOI: 10.1126/science.1122152

[3] G.Q. Liu, L. Wen, G.Y. Liu, Y.W. Tian. Rate capability of spinel LiCr0.1Ni0.4Mn1.5O4 [J]. Journal of Alloys and Compounds, 2010, (501): 233–235.

DOI: 10.1016/j.jallcom.2010.04.076

[4] U. Lafont, C. Locati W.J.H. Borghols, A. asinska, J. Dygas, A.V. Chadwick, E.M. Kelder. Nanosized high voltage cathode material LiMg0.05Ni0.45Mn1.5O4: structural, electrochemical and in situ investigation[J]. Journal of Power Sources, 2009, 189: 179–184.

DOI: 10.1016/j.jpowsour.2008.09.121

[5] Wook Ahn, Sung Nam Lim, Kyu-Nam Jung, Sun-Hwa Yeon, Kwang-Bum Kim, Hoon Sub Song, Kyoung-Hee Shin. Combustion-synthesized LiNi0.6Mn0.2Co0.2O2 as cathode material for lithium ion batteries [J]. Journal of Alloys and Compounds, 2014, (609): 143–149.

DOI: 10.1016/j.jallcom.2014.03.123

[6] Ming-Che Yang, Bo Xu,Ju-Hsiang Cheng, Chun-Jern Pan, Bing-Joe Hwang, and Ying S. Meng. Electronic, Structural, and Electrochemical Properties of LiNixCuyMn2–x–yO4(0 < x< 0.5, 0 < y< 0.5) High-Voltage Spinel Materials[J]. Chemistry of Materials. 2011, 23(11):2832-2841.

DOI: 10.1021/cm200042z

[7] J. Xiao, X. L. Chen, P. V. Sushko, Maria L. Sushko , Libor Kovarik , Jijun Feng , Zhiqun Deng , Jianming Zheng , Gordon L. Graff , Zimin Nie , Daiwon Choi , Jun Liu , Ji-Guang Zhang , M. Stanley Whittingham. High-performance LiNi0.5Mn1.5O4 spinel controlled by Mn3+ concentration and site disorder[J] Adv. Mater., 2012, 24, 2109-2116.

DOI: 10.1002/adma.201104767

[8] F. Gu, S. F. Wang, M.K. Lu, Wen Guo Zou, Guang Jun Zhou, Dong Xu, Duo Yuan. Combustion synthesis and luminescence properties of Dy3+-doped MgO nanocrystals [J] J. Cryst. Growth. 2004, 260: 507-510.

DOI: 10.1016/j.jcrysgro.2003.08.044

[9] M. Kavitha, R. Subramanian, K. Somasundara Vinoth, R. Narayanan, G. Venkatesh, N. Esakkiraja. Optimization of process parameters for solution combustion synthesis of Strontium substituted Hydroxyapatite nanocrystals using Design of Experiments approach[J]. Powder Technology 271 (2015) 167-181.

DOI: 10.1016/j.powtec.2014.10.046

[10] Lianyi Shao, Jie Shu, Kaiqiang Wu, Xiaoting Lin, Peng Li, Miao Shui,Dongjie Wang, Nengbing Long,Yuanlong Ren. Low pressure preparation of spherical Si@C@CNT@C anode material for lithium-ion batteries[J]. Journal of Electroanalytical Chemistry, 2014, (727):8-12.

DOI: 10.1016/j.jelechem.2014.05.031

[11] J. H. Kim, S. T. Myung, and Y. K. Sun. Molten salt synthesis of LiNi0.5Mn1.5O4 spinel for 5 V class cathode material of Li ion secondary battery [J]. Electrochimica Acta, 2004, 49 (2):219–227.

DOI: 10.1016/j.electacta.2003.07.003

[12] R. Alca´ntara, M. Jaraba, P. Lavela, J.L. Tirado. Optimizing preparation conditions for 5 V electrode performance,and structural changes in Li1-xNi0.5Mn1.5O4 spinel [J]. Electrochimica Acta, 2002, 47: 1829-1835.

DOI: 10.1016/s0013-4686(02)00024-5

[13] Hyun-Wook Lee, P. Muralidharan, Claudio M. Mari, Riccardo Ruffo, Do Kyung Kim. Facile synthesis and electrochemical performance of ordered LiNi0.5Mn1.5O4 nanorods as a high power positive electrode for rechargeable Li-ion batteries[J]. Journal of Power Sources, 2011, 196: 10712-10716.

DOI: 10.1016/j.jpowsour.2011.09.002

[14] Xiaofeng Zhang, Honghe Zheng, Vincent Battaglia, Richard L. Axelbaum. Flame synthesis of 5 V spinel-LiNi0.5Mn1.5O4 cathode-materials for lithium-ion rechargeable-batteries [J]. Proceedings of the Combustion Institute, 2011, 33: 1867–1874.

DOI: 10.1016/j.proci.2010.06.084

[15] Seung-Taek Myung, Shinichi Komaba, Naoaki Kumagai, Hitoshi Yashiro, Hoon-Taek Chung, Tae-Hyung Cho. Nano-crystalline LiNi0.5Mn1.5O4 synthesized by emulsion drying Method [J]. Electrochimica Acta 2002, 47: 2543-2549.

DOI: 10.1016/s0013-4686(02)00131-7

[16] Zushan Liu, Yangmei Jiang, Xiaoyuan Zeng, Guan Xiao, Huiyu Song, Shijun Liao. Two-step oxalate approach for the preparation of high performance LiNi0.5Mn1.5O4 cathode material with high voltage [J]. Journal of Power Sources, 2014, 247: 437-443.

DOI: 10.1016/j.jpowsour.2013.09.002

[17] Gao Y, Myrtle K, Zhang MJ, M. Zhang, J. N. Reimers, J. R. Dahn. Valence band of LiNixMn2-xO4 and its effects on the voltage profiles of LiNixMn2-xO4/Li electrochemical cells [J].1996, Phys Rev B Condens Matter 54:16670–16675.

DOI: 10.1002/chin.199720010

[18] Yuan-Li Ding, Jian Xie, Gao-Shao Cao, Tie-Jun Zhu, Hong-Ming Yu, and Xin-Bing Zhao. Single-Crystalline LiMn2O4 Nanotubes Synthesized Via Template-Engaged Reaction as Cathodes for High-Power Lithium Ion Batteries[J]. Adv. Funct. Mater. 2011, 21, 348–355.

DOI: 10.1002/adfm.201001448
