For Libraries For Publication Open Access Downloads About Us Contact Us
Paper Titles
Surface, Temperature and Optical Properties Pd-TiO2 Doped PVA Nanocomposite
p.77
Effect of SnO2 Nanoparticle Doping on Structural, Morphological and Thermal Properties of PVA-PVP Polymer Blend
p.82
The Effect of Nitrogen Bubbles on Microstructure of Natural Rubber Foams Produced by Bubbling Process
p.91
Rubber Foam Processing via Bubbling Technique
p.96
Investigation on the Performance and Durability Behavior for the Anode-Supported Solid Oxide Fuel Cell with Composite Cathodes
p.101
Recovery of Precious Metals from Discarded Mobile Phones by Thiourea Leaching
p.112
Kinetics of Humic Acids Photodegradation in Aqueous Solution Using TiO2/ ZnO/Co Composite Photocatalyst
p.117
Fabrication of Bioscaffolds Using Bubbling Technique for Bone Tissue Engineering
p.125
Characterization of Gelatin/CMC Scaffold Fabricated by Using Salt Leaching Technique
p.129

Investigation on the Performance and Durability Behavior for the Anode-Supported Solid Oxide Fuel Cell with Composite Cathodes

Article Preview

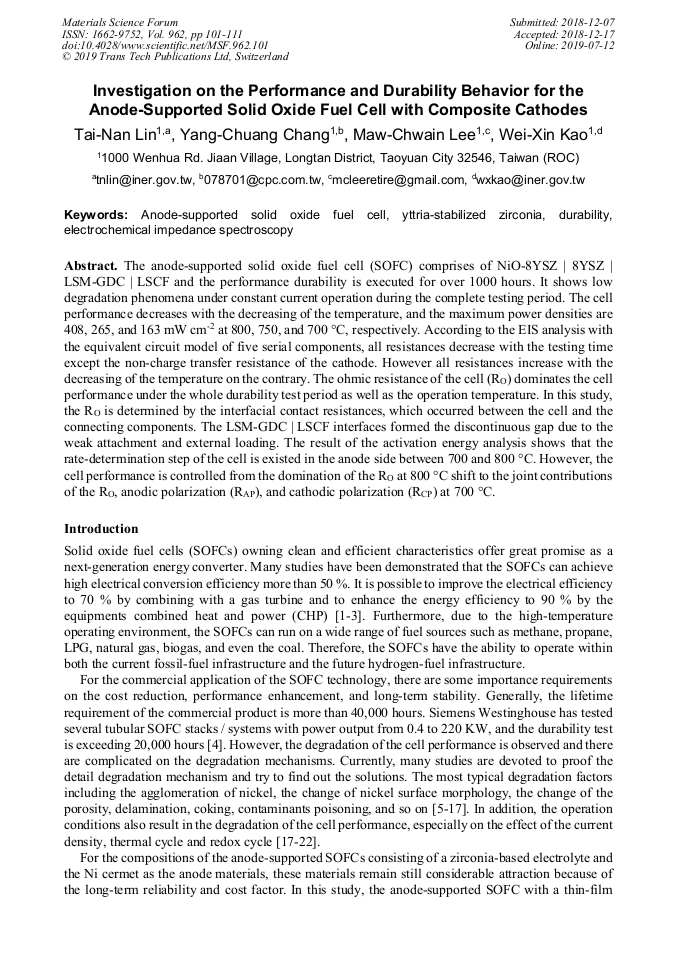

Abstract:

The anode-supported solid oxide fuel cell (SOFC) comprises of NiO-8YSZ | 8YSZ | LSM-GDC | LSCF and the performance durability is executed for over 1000 hours. It shows low degradation phenomena under constant current operation during the complete testing period. The cell performance decreases with the decreasing of the temperature, and the maximum power densities are 408, 265, and 163 mW cm-2 at 800, 750, and 700 °C, respectively. According to the EIS analysis with the equivalent circuit model of five serial components, all resistances decrease with the testing time except the non-charge transfer resistance of the cathode. However all resistances increase with the decreasing of the temperature on the contrary. The ohmic resistance of the cell (RO) dominates the cell performance under the whole durability test period as well as the operation temperature. In this study, the RO is determined by the interfacial contact resistances, which occurred between the cell and the connecting components. The LSM-GDC | LSCF interfaces formed the discontinuous gap due to the weak attachment and external loading. The result of the activation energy analysis shows that the rate-determination step of the cell is existed in the anode side between 700 and 800 °C. However, the cell performance is controlled from the domination of the RO at 800 °C shift to the joint contributions of the RO, anodic polarization (RAP), and cathodic polarization (RCP) at 700 °C.

You might also be interested in these eBooks
Fuel Cells View Preview
Advanced Materials and Processing Technologies View Preview

Info:

Periodical:

Materials Science Forum (Volume 962)

Pages:

101-111

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.962.101

Citation:

Cite this paper

Online since:

July 2019

Authors:

Tai Nan Lin*, Yang Chuang Chang, Maw Chwain Lee, Wei Xin Kao

Keywords:

Anode-Supported Solid Oxide Fuel Cell, Durability, Electrochemical Impedance Spectroscopy, Yttria-Stabilized Zirconia

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2019 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] M. Yokoo, Y. Tabata, Y. Yoshida, H. Orui, K. Hayashi, Y. Nozaki, K. Nozawa, H. Arai: J. Power Sources Vol. 184 (2008), p.84.

DOI: 10.1016/j.jpowsour.2008.05.083

Google Scholar

[2] B. Rietveld: ECS Transactions Vol. 7 (2007) p.17.

Google Scholar

[3] X. Zhang, J. Li, G. Li, Z. Feng: J. Power Sources Vol. 163 (2006) p.523.

Google Scholar

[4] S.C. Singhal, K. Kendall, High Temperature Solid Oxide Fuel Cells: Fundamentals, Design and Applications (Elsevier Ltd., Oxford, 2004).

Google Scholar

[5] A. Hagen, R. Barfod, P.V. Hendriksen, Y.L. Liu, S. Ramousse: J. Electrochem. Soc. Vol. 153 (2006) P. A1165.

DOI: 10.1149/1.2193400

Google Scholar

[6] D. Simwonis, F. Tietz, D. Stöver: Solid State Ionics Vol. 132 (2000) p.241.

Google Scholar

[7] T. Suzuki, Z. Hasan, Y. Funahashi, T. Yamaguchi, Y. Fujishiro, M. Awano: Science Vol. 325 (2009) p.852.

Google Scholar

[8] M.D. Gross, J.M. Vohs, R.J. Gorte: J. Mater. Chem. Vol. 17 (2007) p.3071.

Google Scholar

[9] Y.H. Huang, R.I. Dass, J.C. Denyszyn, J.B. Goodenough: J. Electrochem. Soc. Vol. 153 (2006) p. A1266.

Google Scholar

[10] N.M. Tikekar, T.J. Armstrong, A.V. Virkar: J. Electrochem. Soc. Vol. 153 (2006) p. A654.

Google Scholar

[11] M. Mogensen, K.V. Jensen: Solid State Ionics Vol. 150 (2002) p.123.

Google Scholar

[12] L. Yang, S. Wang, K. Blinn, M. Liu, Z. Liu, Z. Cheng, M. Liu: Science Vol. 326 (2009) p.126.

Google Scholar

[13] M. Flytzani-Stephanopoulos, M. Sakbodin, Z. Wang: Science Vol. 312 (2006) p.1508.

Google Scholar

[14] Y.L. Liu, C. Jiao: Solid State Ionics Vol. 176 (2005) p.435.

Google Scholar

[15] Y. Matsuzaki, I. Yasuda: J. Electrochem. Soc. Vol. 148 (2001) p. A126.

Google Scholar

[16] A. Mai, M. Becker, W. Assenmacher, F. Tietz, D. Hathiramani, E. Ivers-Tiffée, D. Stöver, W. Mader: Solid State Ionics Vol. 177 (2006) p. (1965).

DOI: 10.1016/j.ssi.2006.06.021

Google Scholar

[17] H. Yokokawa, H. Tu, B. Iwanschitz, A. Maic: J. Power Sources Vol. 182 (2008) p.400.

Google Scholar

[18] T. Kawada, N. Sakai, H. Yokokawa, M. Dokiya, M. Mori, T. Iwata: J. Electrochem. Soc. Vol. 137 (1990) p.3042.

Google Scholar

[19] H. Uchida, M.Yoshida, M.Watanabe: J. Electrochem. Soc. Vol. 146 (1999) p.1.

Google Scholar

[20] D. Sarantaridis, A. Atkinson: Fuel Cells Vol. 7 (2007) p.246.

Google Scholar

[21] D.Waldbillig, A.Wood, D.G. Ivey: J. Power Sources Vol. 145 (2005) p.206.

Google Scholar

[22] W. Bujalski, C.M. Dikwal, K. Kendall: J. Power Sources Vol. 171 (2007) p.96.

Google Scholar

[23] W.X. Kao, M.C. Lee, Y.C. Chang, T.N. Lin, C.H. Wang, J.C. Chang: J. Power Sources Vol. 195 (2010) p.6468.

Google Scholar

[24] H.Y. Jung, S.H. Choi, H. Kim, J.W. Son, J. Kim, H.W. Lee, J.H. Kim: J. Power Sources Vol. 159 (2006) p.478.

Google Scholar

[25] T. Iwata: J. Electrochem. Soc. Vol. 153 (1996) p.1521.

Google Scholar

[26] C.H. Wang, M.C. Lee, T.J. Huang, Y.C. Chang, W.X. Kao, T.N. Lin: Electrochem. Comm. Vol. 11 (2009) p.1381.

Google Scholar

[27] Y.J. Leng, S.H. Chan, K.A. Khor, S.P. Jiang: Int. J. Hydrogen Energy Vol. 29 (2004) p.1025.

Google Scholar

[28] S. Li, Z. Lu, N. Ai, K. Chen, W. Su: J. Power Sources Vol. 165 (2007) p.97.

Google Scholar

[29] W. X. Kao, M. C. Lee, T. N. Lin, C. H. Wang, Y. C. Chang: J. Power Sources Vol. 195 (2010) p.2220.

Google Scholar

[30] R. Barfod, M. Mogensen, T. Klemensø, Anke Hagen, Y.L. Liu, P.V. Hendriksen: J. Electrochem. Soc. Vol. 154 (2007) p. B371.

Google Scholar

[31] S. Le, K. N. Sun, N. Zhang, X. Zhu, H. Sun, Y.X. Yuan, X. Zhou: J. Power Sources Vol. 195 (2010) p.2644.

Google Scholar

[32] K.A. Khor, S.H. Chan: J. Power Sources Vol. 123 (2003) p.17.

Google Scholar

[33] S.P. Jiang, J.P. Love: Solid State Ionics Vol. 138 (2001) p.183.

Google Scholar

[34] S.P. Jiang, J.G. Love, J.P. Zhang, M. Hoang, Y. Ramprakash, A.E. Hughes, S.P.S. Badwal: Solid State Ionics Vol. 121 (1999) p.1.

Google Scholar

[35] F.H. Van Heuveln, H.J.M. Bouwmeester: J. Electrochem. Soc. Vol. 144 (1997) p.134.

Google Scholar

[36] H.Y. Lee, W.S. Cho, S.M. Oh, H.D. Wiemhöfer, W. Göpel: J. Electrochem. Soc. Vol. 142 (1995) p.2659.

Google Scholar

[37] M. Suzuki, et al., In Proceedings of the 2nd IFCC (International Fuel Cell Conference), Kobe, Japan NEDO, (1966).

Google Scholar

[38] H. Uchida, M. Yoshida, M. Watanabe: J. Electrochem. Soc. Vol. 146 (1999) p.1.

Google Scholar

[39] P. Leone, M. Santarelli, P. Asinari, M. Calí, R. Borchiellini: J. Power Sources Vol. 177 (2008) p.111.

Google Scholar

© 2025 Trans Tech Publications Ltd. All rights are reserved, including those for text and data mining, AI training, and similar technologies. For open access content, terms of the Creative Commons licensing CC-BY are applied.
Scientific.Net is a registered trademark of Trans Tech Publications Ltd.
