The Microstructure Evolution and Precipitation Behavior within HSLA Steels with Different M/C Atomic Ratios

Chih Yuan Chen; Lung Jen Chiang; Chien Chon Chen; Jih Sheng Kuo; Ya Hsuan Chou

doi:10.4028/www.scientific.net/MSF.975.49

Paper Titles

Numerical Simulation and Experimental Verification of Ultra-High Frequency Induction Cladding with Metal Wire
p.25

6061 Aluminum Surface Treatment by High Quality Coloring Anodic Film
p.31

Optimized Micro-Arc Oxidation Coating Thickness on ALZ Magnesium Lithium Alloy
p.37

A Study on Fabrication and Morphology of 6061 Aluminum Alloy in Hard Anodization
p.45

The Microstructure Evolution and Precipitation Behavior within HSLA Steels with Different M/C Atomic Ratios
p.49

Studying of Influence of Rotation of the Spent Electrode on the Microfirmness of the Received Preparation of Steel AISI 420 at Electroslag Remelting
p.55

Study of TiC Interaction and its Reaction Products with the Different Carbon Content Steels
p.59

Analysis of the Influence of Pore-Forming Agent and Coagulation Bath on the Preparation of PES Hollow Fiber Membrane
p.67

Development Carbonated Hydroxyapatite Powders from Oyster Shells (Crassostrea gigas) by Carbonate Content Variations
p.76

HomeMaterials Science ForumMaterials Science Forum Vol. 975The Microstructure Evolution and Precipitation...

The Microstructure Evolution and Precipitation Behavior within HSLA Steels with Different M/C Atomic Ratios

Abstract:

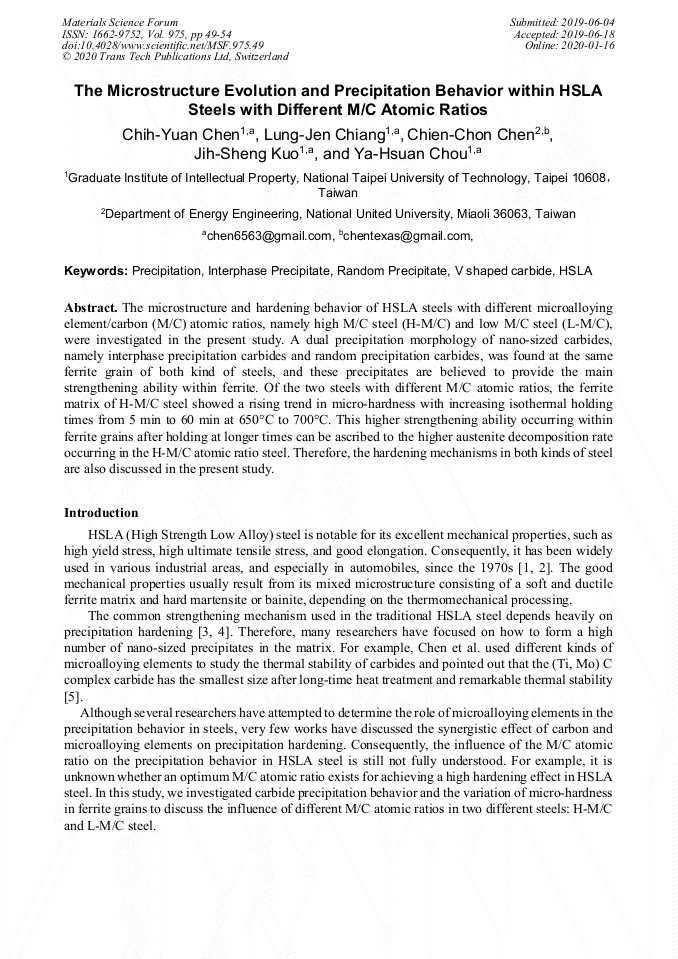

The microstructure and hardening behavior of HSLA steels with different microalloying element/carbon (M/C) atomic ratios, namely high M/C steel (H-M/C) and low M/C steel (L-M/C), were investigated in the present study. A dual precipitation morphology of nanosized carbides, namely interphase precipitation carbides and random precipitation carbides, was found at the same ferrite grain of both kind of steels, and these precipitates are believed to provide the main strengthening ability within ferrite. Of the two steels with different M/C atomic ratios, the ferrite matrix of H-M/C steel showed a rising trend in micro-hardness with increasing isothermal holding times from 5 min to 60 min at 650°C to 700°C. This higher strengthening ability occurring within ferrite grains after holding at longer times can be ascribed to the higher austenite decomposition rate occurring in the H-M/C atomic ratio steel. Therefore, the hardening mechanisms in both kinds of steel are also discussed in the present study.

You might also be interested in these eBooks

7th Asia Conference on Mechanical and Materials Engineering

View Preview

Info:

Periodical:

Materials Science Forum (Volume 975)

Pages:

49-54

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.975.49

Citation:

Cite this paper

Online since:

January 2020

Authors:

Chih Yuan Chen*, Lung Jen Chiang, Chien Chon Chen, Jih Sheng Kuo, Ya Hsuan Chou

Keywords:

HSLA, Interphase Precipitate, Precipitation, Random Precipitate, V Shaped Carbide

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Yi Shao, Chenxi Liu, Zesheng Yan, Huijun Li, and Yongchang Liu: J. Mater. Sci. Technol., Vol. 34, (2018), P. 737.

Google Scholar

[2] Magnus G. H. Cruz, and Alexandre Viecelli: Mater. Design, Vol. 29, (2008), P. 539.

Google Scholar

[3] Samuel Clark, Vit Janik, Arjan Rijkenberg, and Seetharaman Sridhar: Mater. Charact., Vol. 115, (2016), P. 83.

Google Scholar

[4] Erik J. Pavlina, C. J. Van Tyne, and J. G. Speer: Mater. Charact., Vol. 102, (2015), P. 35.

Google Scholar

[5] Chen Chih-Yuan, Chen Chien-Chon, and Yang Jer-Ren: Mat. Sci Eng. A: Vol. 626, (2015), P.74.

Google Scholar

[6] K. M Wu, Y Inagawa, and M Enomoto: Mater. Charact., Vol. 52, (2004), P. 121.

Google Scholar

[7] J.H. Jang, C.H. Lee, Y.U. Heo, and D.W. Suh: Acta Mater., Vol. 60, (2012), p.208.

Google Scholar

[8] Chih-Yuan Chen, Jer-Ren Yang, Chien-Chon Chen, and Shih-Fan Chen: Mater. Charact., Vol. 114, (2016), P. 18.

Google Scholar
