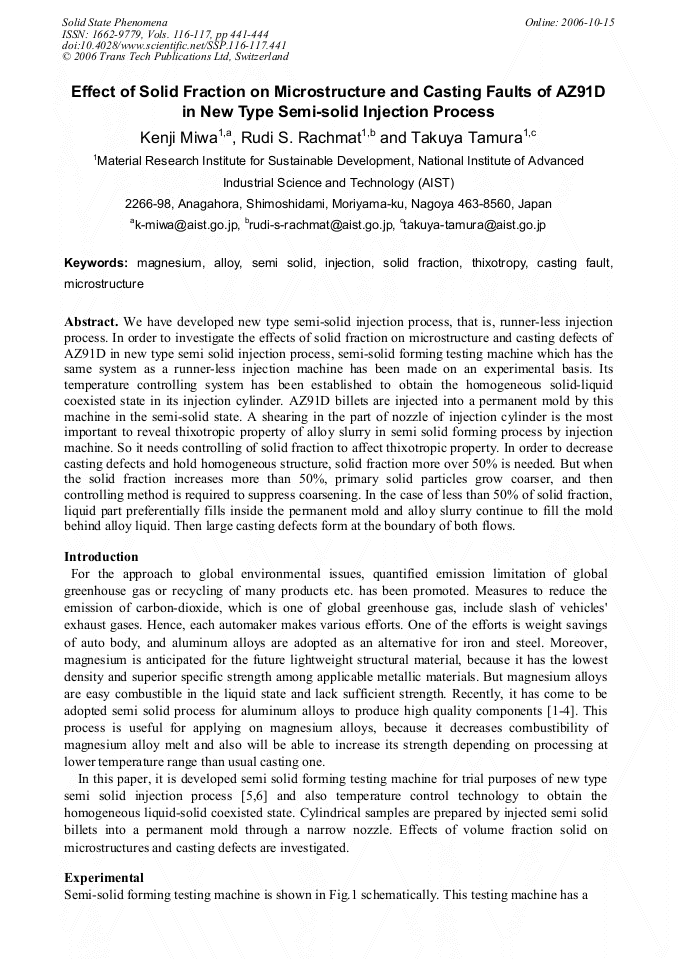

Effect of Solid Fraction on Microstructure and Casting Faults of AZ91D Alloys in New Type Semi-Solid Injection Process

Abstract:

We have developed new type semi-solid injection process, that is, runner-less injection process. In order to investigate the effects of solid fraction on microstructure and casting defects of AZ91D in new type semi solid injection process, semi-solid forming testing machine which has the same system as a runner-less injection machine has been made on an experimental basis. Its temperature controlling system has been established to obtain the homogeneous solid-liquid coexisted state in its injection cylinder. AZ91D billets are injected into a permanent mold by this machine in the semi-solid state. A shearing in the part of nozzle of injection cylinder is the most important to reveal thixotropic property of alloy slurry in semi solid forming process by injection machine. So it needs controlling of solid fraction to affect thixotropic property. In order to decrease casting defects and hold homogeneous structure, solid fraction more over 50% is needed. But when the solid fraction increases more than 50%, primary solid particles grow coarser, and then controlling method is required to suppress coarsening. In the case of less than 50% of solid fraction, liquid part preferentially fills inside the permanent mold and alloy slurry continue to fill the mold behind alloy liquid. Then large casting defects form at the boundary of both flows.

• Periodical: Solid State Phenomena (Volumes 116-117)
• Pages: 441-444
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.116-117.441
• Online since: October 2006
• Authors: Kenji Miwa, Rudi S. Rachmat, Takuya Tamura
• Keywords: Alloy, Casting Fault, Injection, Magnesium, Microstructure, Semi-Solid, Solid Fraction, Thixotropy

References

[1] S. Matsuno, M. Saito and M. Kikuchi�1996 Japan Die Casting Congress Transactions (1996) 209.

[2] R. Shibata, H. Yamane, T. Soda and Y. Kaneuchi�J. JFS 69 (1997) 885.

[3] M. Adachi, T. Sato, H. Sasaki, T. Kawasaki, Y. Harada, H. Akimoto and T. Sakamoto�1998 Japan Die Casting Congress transactions (1998) 123.

[4] T. Idegomori, H. Hirono, S. Ito and S. Kimishima�J. of ASTP 41 (2000) 1201.

[5] F. Yamada, K. Miwa and R. Tanaka�Die & Mould Technology (Jpn. ), 19 (2004) 46.

[6] K. Miwa�Met. Technol. (Jpn. ), 75 (2005) 49.

[7] K. Miwa�J. Jpn. Soc. Technol. Plast. 41 (2000) 1210.

[8] K. Miwa and S. Kawamura�J. JFS 77 (2005) 554. Fig. 6 Microstructure and X-ray CT images of AZ91D injected into permanent mold with injection speed 430mm/s. ( fraction solid is about 40% ).
