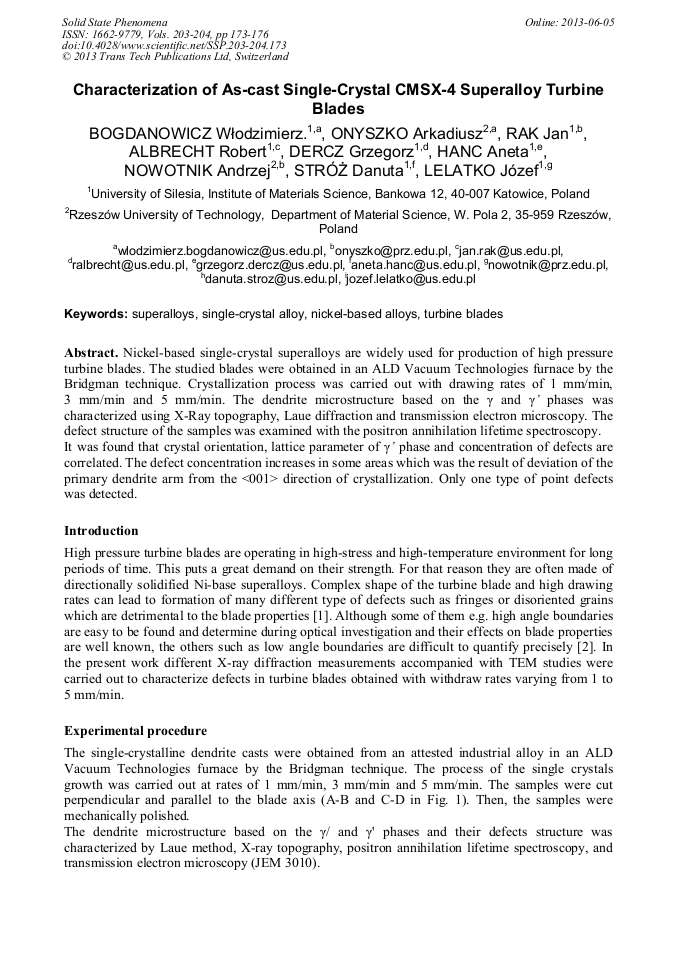

Characterization of As-Cast Single-Crystal CMSX-4 Superalloy Turbine Blades

Abstract:

Nickel-based single-crystal superalloys are widely used for production of high pressure turbine blades. The studied blades were obtained in an ALD Vacuum Technologies furnace by the Bridgman technique. Crystallization process was carried out with drawing rates of 3 mm/min and 5 mm/min. The dendrite microstructure based on the γ/γ’ phases and their defects was characterized using X-Ray topography, Laue diffraction, transmission electron microscopy. The defect structure samples were examined with the positron annihilation lifetime spectroscopy. It was found that crystal orientation, lattice parameter of γ’ phase and concentration of defects are correlated. The defect concentration increases in some areas which was the result of deviation of the primary dendrite arm from crystallization direction . Only one type of point defects was detected.
