Effect of 100 MeV Ag+7 Ion Irradiation on Electrical Properties of Ag/La0.7Sr0.3MnO3/Ag Planar Structures

Komal H. Bhavsar; Utpal S. Joshi; Bhaumik V. Mistry; U.V. Chhaya; S.A. Khan; D.K. Avasthi

doi:10.4028/www.scientific.net/SSP.209.18

Paper Titles

Growth and Electrical Transport Properties of Organic Semiconductor Thin Films
p.1

Effect of High Temperature Caliber Rolling on Microstructure and Room Temperature Tensile Properties of Mg-3Al-1Zn (AZ31) Alloy
p.6

Complex Permittivity of Soils of Western Rajasthan at Microwave Frequency
p.10

Study of Ac Conductivity and Dielectric Properties of PMMA with Fe₂O₃+ Al₂O₃ Composite Films
p.14

Effect of 100 MeV Ag⁺⁷ Ion Irradiation on Electrical Properties of Ag/La_0.7Sr_0.3MnO₃/Ag Planar Structures
p.18

Dielectric Spectroscopy of Dry and Wet Soils in Frequency Region from 20 Hz to 20 GHz
p.23

Evolution of Magnetic Ordering in Spinel Oxide System: Mn_1.5(1-x)Ti_0.5(1-x)Fe_{(1+ 1.5x)}Li_(0.5)xO4
p.27

Synthesis, Characterization and Magnetic Properties of Cobalt Ferrite Nanoparticles Prepared by Glycine Assisted Sol-Gel Auto-Combustion Technique
p.31

Nano-MRF: A Material for Damping Application
p.35

HomeSolid State PhenomenaSolid State Phenomena Vol. 209Effect of 100 MeV Ag+7 Ion Irradiation on...

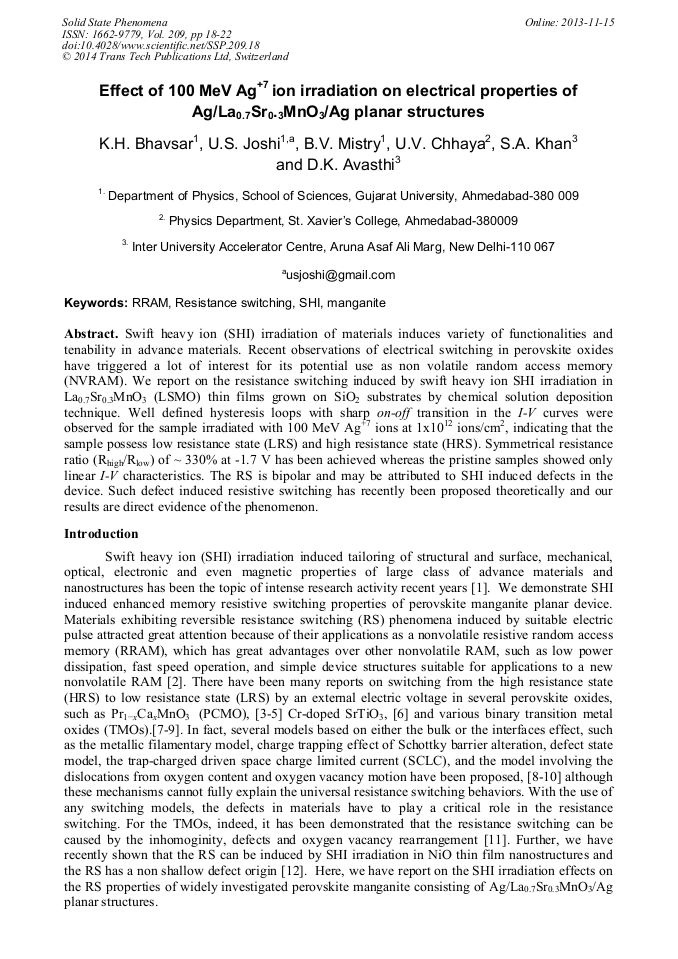

Effect of 100 MeV Ag⁺⁷ Ion Irradiation on Electrical Properties of Ag/La_0.7Sr_0.3MnO₃/Ag Planar Structures

Abstract:

Swift heavy ion (SHI) irradiation of materials induces variety of functionalities and tenability in advance materials. Recent observations of electrical switching in perovskite oxides have triggered a lot of interest for its potential use as non volatile random access memory (NVRAM). We report on the resistance switching induced by swift heavy ion SHI irradiation in La_0.7Sr_0.3MnO₃ (LSMO) thin films grown on SiO2 substrates by chemical solution deposition technique. Well defined hysteresis loops with sharp on-off transition in the I-V curves were observed for the sample irradiated with 100 MeV Ag⁺⁷ ions at 1x10¹² ions/cm2, indicating that the sample possess low resistance state (LRS) and high resistance state (HRS). Symmetrical resistance ratio (Rhigh/Rlow) of ~ 330% at -1.7 V has been achieved whereas the pristine samples showed only linear I-V characteristics. The RS is bipolar and may be attributed to SHI induced defects in the device. Such defect induced resistive switching has recently been proposed theoretically and our results are direct evidence of the phenomenon.
