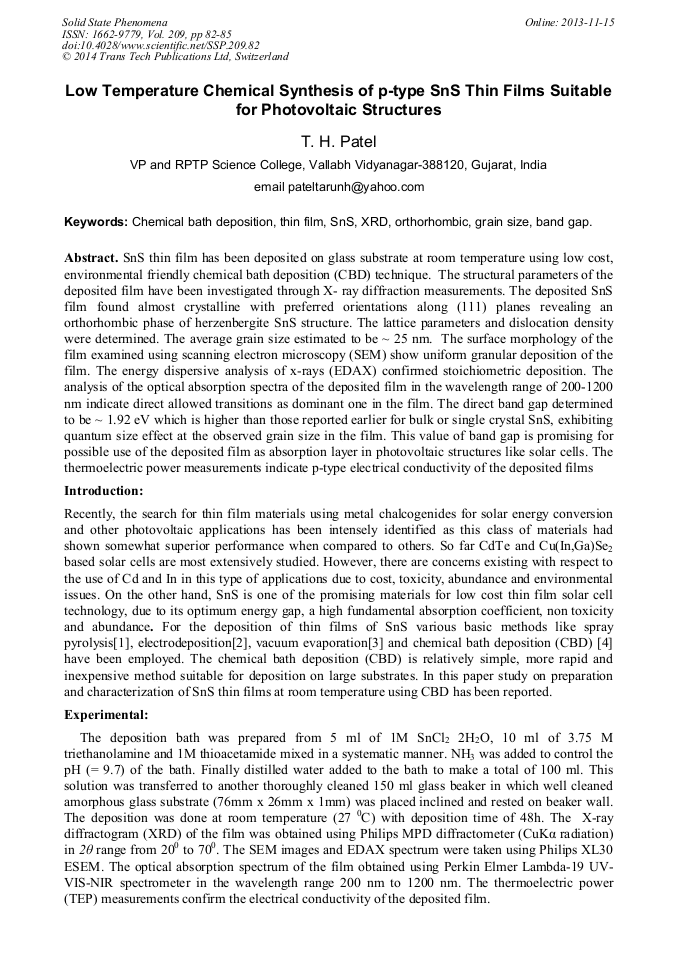

Low Temperature Chemical Synthesis of p-Type SnS Thin Films Suitable for Photovoltaic Structures

Abstract:

SnS thin film has been deposited on glass substrate at room temperature using low cost, environmental friendly chemical bath deposition (CBD) technique. The structural parameters of the deposited film have been investigated through X- ray diffraction measurements. The deposited SnS film found almost crystalline with preferred orientations along (111) planes revealing an orthorhombic phase of herzenbergite SnS structure. The lattice parameters and dislocation density were determined. The average grain size estimated to be ~ 25 nm. The surface morphology of the film examined using scanning electron microscopy (SEM) show uniform granular and any crack or pinhole free deposition of the film. The chemical compositions of the film examined using energy dispersive analysis of x-rays (EDAX) confirmed stoichiometric deposition. The analysis of the optical absorption spectra of the deposited film in the wavelength range of 200-1200 nm indicate that direct allowed transitions are dominant in the film. The direct band gap of the film determined to be ~ 1.92 eV which is higher than those reported earlier for bulk or single crystal SnS, exhibiting quantum size effect at the observed grain size in the film. This value of band gap is promising for possible use of the deposited film as absorption layer in photovoltaic structures like solar cells. The thermoelectric power measurements indicate p-type electrical conductivity of the deposited films. A systematic study on room temperature chemical deposition and characterization of SnS thin films suitable for absorber layer in photovoltaic structures has been reported.

• Periodical: Solid State Phenomena (Volume 209)
• Pages: 82-85
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.209.82
• Online since: November 2013
• Authors: T.H. Patel
• Keywords: Band Gap, Chemical Bath Deposition (CBD), Grain Size, Orthorhombic, SNS, Thin Film, XRD

References

[1] B.G. Jeyaprakash, R. Ashok Kumar, K. Kesavan and A. Amalarani, Srtucural and optical characterization of spray deposited SnS thin films, J. American Science, 6(3) (2010) 22.

[2] N.R. Mathews, Charge transport in a pulse-electrodeposited SnS/Al schottky device, Semicond. Sci. Technol., 25 ( 2010) 105010.

DOI: 10.1088/0268-1242/25/10/105010

[3] R.W. Miles, O.E. Ogah, G. Zoppi and I. Forbes, Thermally evaporated SnS thin films for solar cells, Thin Solid Films, 517 (2009) 4702.

DOI: 10.1016/j.tsf.2009.03.003

[4] A. Akkari, C. Guasch and N. Kamoun-Turki, Chemically deposited tin sulphide. J. Alloys and Compounds, 490 (2010) 180.

DOI: 10.1016/j.jallcom.2009.08.140

[5] B.D. Cullity and S.R. Stock, Elem. of X-ray Diffr., Englewood Cliffs, NJ Prentice Hall, 2001.

[6] T.H. Patel, Rajiv Vaidya and S.G. Patel, Growth and transport properties of tin monosulphoselenide single crystals, J.of Crystal Growth, 253 (2003) 52.

DOI: 10.1016/s0022-0248(03)01002-9

[7] G. Williamson and W. Hall, X-ray line broad. from field Alum and wolfram, Acta Metall,1953.

[8] J.I. Pankove, Optical Processes in Semiconductors, Dover Publications Inc. New York 1975.
