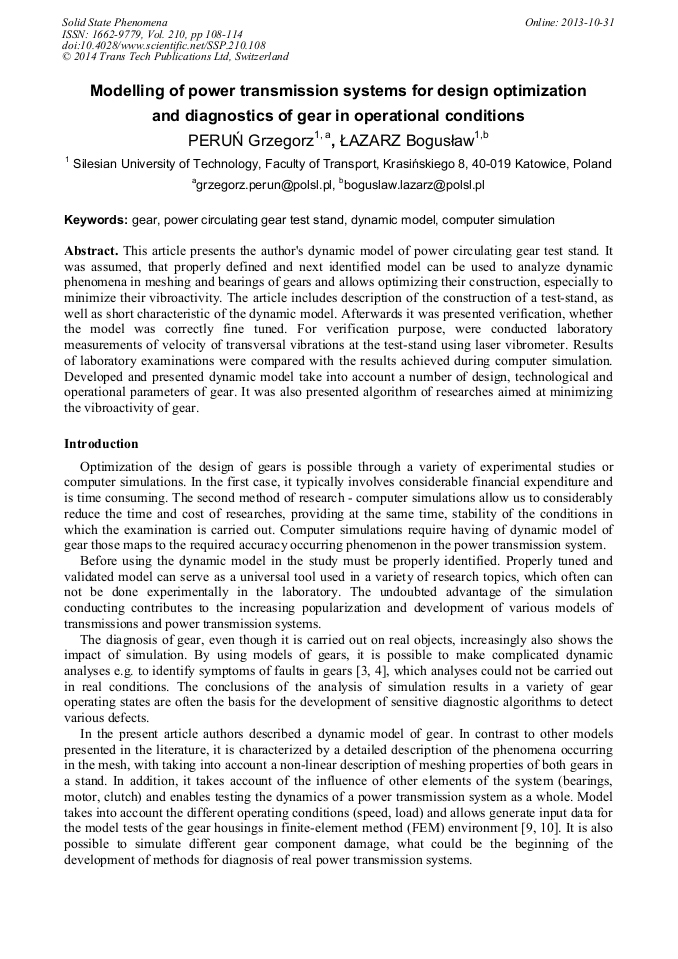

Modelling of Power Transmission Systems for Design Optimization and Diagnostics of Gear in Operational Conditions

Abstract:

This article presents the author's dynamic model of power circulating gear test stand. It was assumed, that properly defined and next identified model can be used to analyze dynamic phenomena in meshing and bearings of gears and allows optimizing their construction, especially to minimize their vibroactivity. The article includes description of the construction of a test-stand, as well as short characteristic of the dynamic model. Afterwards it was presented verification, whether the model was correctly fine tuned. For verification purpose, were conducted laboratory measurements of velocity of transversal vibrations at the test-stand using laser vibrometer. Results of laboratory examinations were compared with the results achieved during computer simulation. Developed and presented dynamic model take into account a number of design, technological and operational parameters of gear. It was also presented algorithm of researches aimed at minimizing the vibroactivity of gear.

• Periodical: Solid State Phenomena (Volume 210)
• Pages: 108-114
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.210.108
• Online since: October 2013
• Authors: Grzegorz Peruń, Bogusław Łazarz
• Keywords: Computer Simulation, Dynamic Model, Gear, Power Circulating Gear Test Stand

References

[1] B. Łazarz, G. Peruń: Identification and verification of simulation model of gears working in circulating power system. Diagnostyka No. 4(52) 2009, pp.55-60.

[2] B. Łazarz, G. Peruń: Influence of construction factors on the vibrational activity of the gearing. Transport Problems 2012 t. 7 z. 2, pp.95-102.

[3] B. Łazarz, G. Peruń: Modeling of damages of rolling bearing elements in gears working in circulating power system (in Polish). Scientific Papers, Silesian University of Technology nr 1803 Transport 2008 z. 64, pp.201-208.

[4] B. Łazarz, G. Peruń: Modeling of surface wear of wheel teeth in gear working in the power transmission system for diagnosis purposes (in Polish). Scientific Papers, Silesian University of Technology nr 1834 Transport 2010 z. 69, pp.91-96.

[5] B. Łazarz, G. Peruń: The use of the model of gear working in circulating power system to evaluate the activity of the housing (in Polish). XXIV Machine Design Symposium, Białystok - Białowieża 2009. Bialystok University of Technology, 2009, pp.26-29.

[6] H. Madej: Minimization of vibroacoustic activity of the housing (in Polish). Maintenance Problems Library, Katowice – Radom, (2003).

[7] G. Peruń: The influence of constructional, operational and technological factors on the vibroactivity of the power transmission system with toothed gear (in Polish). Doctoral dissertation. Silesian University of Technology, Katowice (2010).

[8] G. Peruń: Effect of modification of the teeth on dynamic phenomena in the gear operating in different conditions (in Polish). Scientific Papers, Silesian University of Technology nr 1848 Transport 2011 z. 70, pp.69-74.

[9] A. Wilk, P. Folęga, B. Łazarz, G. Peruń: Influence of gearbox dynamics properties on structure borne sound. 15th International Congress on Sound and Vibration. ICSV15, Daejeon, Korea, 6-10 July 2008. Proceedings. Seoul 2008, pp.2325-2330.

[10] A. Wilk, B. Łazarz, H. Madej, P. Folęga, G. Peruń: Application of numerical methods to gearbox vibroactivity assessment. 16th International Congress on Sound and Vibration. Kraków (2009).

[11] A. Wilk, H. Madej, B. Łazarz: Vibroactivity of the gear. Influence of design characteristics and wear on the vibroactivity of power transmission system with gear. ITE, Katowice-Radom, (2009).
