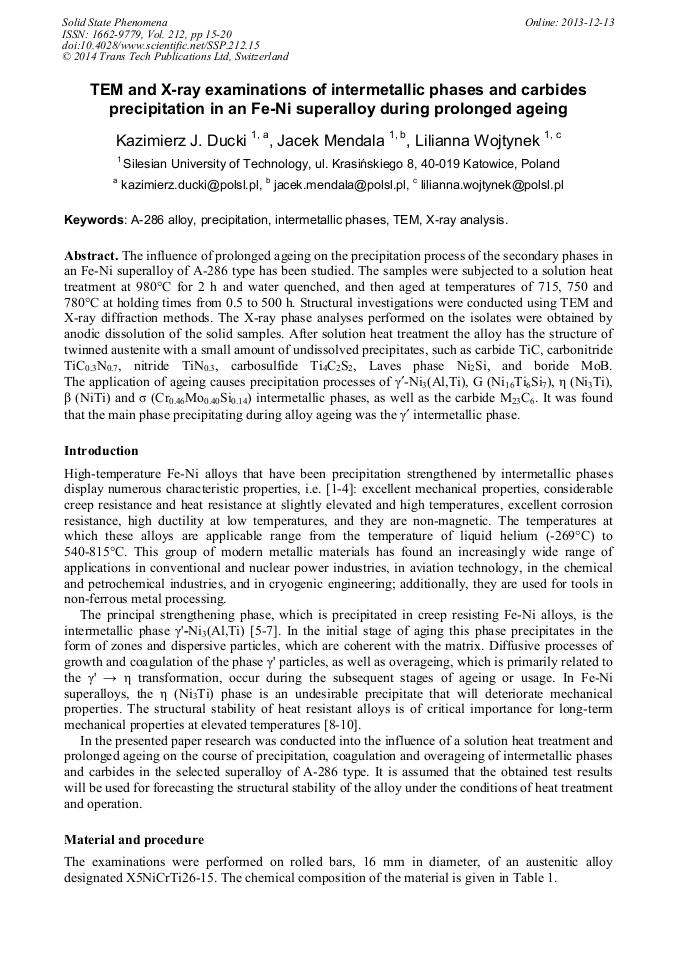

TEM and X-Ray Examinations of Intermetallic Phases and Carbides Precipitation in an Fe-Ni Superalloy during Prolonged Ageing

Abstract:

The influence of prolonged ageing on the precipitation process of the secondary phases in an Fe-Ni superalloy of A-286 type has been studied. The samples were subjected to a solution heat treatment at 980°C for 2 h and water quenched, and then aged at temperatures of 715, 750 and 780°C at holding times from 0.5 to 500 h. Structural investigations were conducted using TEM and X-ray diffraction methods. The X-ray phase analyses performed on the isolates were obtained by anodic dissolution of the solid samples. After solution heat treatment the alloy has the structure of twinned austenite with a small amount of undissolved precipitates, such as carbide TiC, carbonitride TiC_0.3N_0.7, nitride TiN_0.3, carbosulfide Ti₄C₂S₂, Laves phase Ni₂Si, and boride MoB. The application of ageing causes precipitation processes of γ-Ni₃(Al,Ti), G (Ni₁₆Ti₆Si₇), η (Ni₃Ti), β (NiTi) and σ (Cr_0.46Mo_0.40Si_0.14) intermetallic phases, as well as the carbide M₂₃C₆. It was found that the main phase precipitating during alloy ageing was the γ intermetallic phase.

• Periodical: Solid State Phenomena (Volume 212)
• Pages: 15-20
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.212.15
• Online since: December 2013
• Authors: Kazimierz J. Ducki, Jacek Mendala, Lilianna Wojtynek
• Keywords: A-286 Alloy, Intermetallic Phase, Precipitation, TEM, X-Ray Analysis

References

[1] Ch.T. Sims, N.S. Stoloff, W.C. Hagel, The Superalloys II, Ed. A. Wiley Witescience Publications, New York, (1987).

[2] N.S. Stoloff, in ASM Handbook, Properties and Selection: Irons, Steels and High Performance Alloys, Ed. ASM International 1 (2005) 1478-1527.

DOI: 10.31399/asm.hb.v01.9781627081610

[3] K.J. Ducki, Research of the microstructure and precipitation strengthening in a high-temperature Fe-Ni superalloy, IOP Conference Series – Materials Science and Engineering 35 (2012) 012007.

DOI: 10.1088/1757-899x/35/1/012007

[4] J. Pokluda, M. Kianicova, Assessment of performance capability of turbine blades with protective coatings after overheating events, Engineering Failure Analysis 17 6 (2010) 1389-1396.

DOI: 10.1016/j.engfailanal.2010.04.004

[5] F.B. Pickering, Some aspects of the precipitation of nickel-aluminium-titanium intermetallic compounds in ferrous materials, Proc. Conference: The Metallurgical Evolution of Stainless Steels, The Metals Society, London (1979) 391-401.

[6] F.G. Wilson, Age hardening of austenitic steels by γ', In: Efect of second-phase particles on the mechanical properties of steels, The Iron and Steel Institute, London (1971) 16-21.

[7] K.J. Ducki, M. Hetmańczyk, D. Kuc, Analysis of precipitation process of the intermetallic phases in a high-temperature Fe-Ni austenitic alloy, Materials Chemistry and Physics 81 (2003) 490-492.

DOI: 10.1016/s0254-0584(03)00050-6

[8] K. Kusabiraki, Y. Takasawa, T. Ooka, Precipitation and growth of γ' and η phases in 53Fe-26Ni-15Cr alloy, ISIJ International 35 (1995) 542-547.

DOI: 10.2355/isijinternational.35.542

[9] M. Seifollahi, Sh. Kheirandish, S.H. Razavi, S.M. Abbasi, The precipitation of eta phase in an Fe-Ni-based superalloy with different Ti/Al ratios, International Journal of Materials Research 104 4 (2013) 344-350.

DOI: 10.3139/146.110873

[10] M. Seifollahi, Sh. Kheirandish, S.H. Razavi, S.M. Abbasi, P. Sahrapour, Effect of η phase on mechanical properties of the iron-based superalloy using shear punch testing, ISIJ International 53 2 (2013) 311-316.

DOI: 10.2355/isijinternational.53.311

[11] F.R. Larson, J. Miller, A time – temperature relationship for rupture and creep stresses, Transactions ASME 74 (1952) 765-775.

DOI: 10.1115/1.4015915

[12] H.J. Penkala, F. Schubert, Ni-base wrought alloy development for USC steam turbine rotor applications, Inżynieria Materiałowa 3 (2004) 415-421.

[13] J. Wosik, H.J. Penkala, B. Dubiel, A. Czyrska-Filemonowicz, Ni-based superalloy Waspalloy development for modern steam turbine disk applications, Inżynieria Materiałowa 4 (2002) 163-168.

[14] H.F. Merrick, R.B. Nicholson, An electron microscope investigation of the interfacial structure of semi-coherent precipitates, Proc. 5th International Congress for Electron Microscopy, Ed. Academic Press, Philadelphia, New York 1 (1962) K-8.
