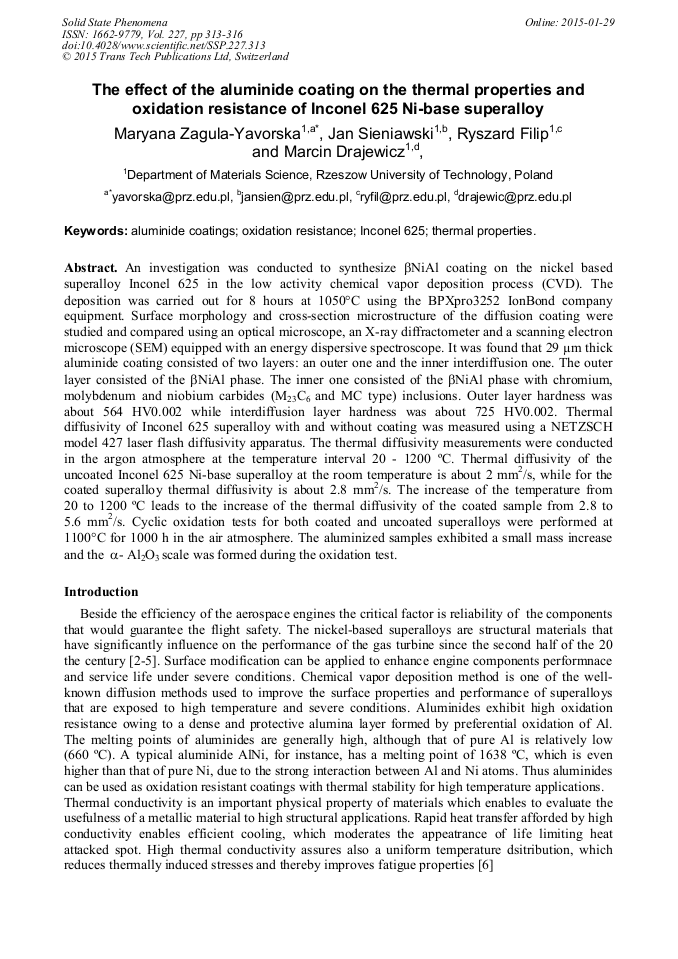

The Effect of the Aluminide Coating on the Thermal Properties and Oxidation Resistance of Inconel 625 Ni-Base Superalloy

Abstract:

An investigation was conducted to synthesize βNiAl coating on the nickel based superalloy Inconel 625 in the low activity chemical vapor deposition process (CVD). The deposition was carried out for 8 hours at 1050°C using the BPXpro3252 IonBond company equipment. Surface morphology and cross-section microstructure of the diffusion coating were studied and compared using an optical microscope, an X-ray diffractometer and a scanning electron microscope (SEM) equipped with an energy dispersive spectroscope. It was found that 29 μm thick aluminide coating consisted of two layers: an outer one and the inner interdiffusion one. The outer layer consisted of the βNiAl phase. The inner one consisted of the βNiAl phase with chromium, molybdenum and niobium carbides (M₂₃C₆ and MC type) inclusions. Outer layer hardness was about 564 HV0.002 while interdiffusion layer hardness was about 725 HV0.002. Thermal diffusivity of Inconel 625 superalloy with and without coating was measured using a NETZSCH model 427 laser flash diffusivity apparatus. The thermal diffusivity measurements were conducted in the argon atmosphere at the temperature interval 20 - 1200 oC. Thermal diffusivity of the uncoated Inconel 625 Ni-base superalloy at the room temperature is about 2 mm²/s, while for the coated superalloy thermal diffusivity is about 2.8 mm²/s. The increase of the temperature from 20 to 1200 oC leads to the increase of the thermal diffusivity of the coated sample from 2.8 to 5.6 mm²/s. Cyclic oxidation tests for both coated and uncoated superalloys were performed at 1100°C for 1000 h in the air atmosphere. The aluminized samples exhibited a small mass increase and the α-Al₂O₃ scale was formed during the oxidation test.

• Periodical: Solid State Phenomena (Volume 227)
• Pages: 313-316
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.227.313
• Online since: January 2015
• Authors: Maryana Zagula-Yavorska*, Jan Sieniawski, Ryszard Filip, Marcin Drajewicz
• Keywords: Aluminide Coatings, Inconel 625, Oxidation Resistance, Thermal Properties

References

[1] M. Poręba, W. Ziaja, J. Sieniawski, Thermo-chemical process of aluminizing of the nickel-base superalloy, Mater. Sci. Forum 674 (2011) 81-88.

DOI: 10.4028/www.scientific.net/msf.674.81

[2] B. Sudhangshu, High Temperaure Coatings, Oxford (2007).

[3] J. Davis et al., Heat –Resistant Materials. ASM Specialty Handbook, ASM International USA (1997).

[4] Y. Tamarin, Protective coatings for turbine blades, ASM International USA (2002).

[5] M. Zielińska, M. Zagula-Yavorska, J. Sieniawski, R. Filip, Microstructure and oxidation resistance of an aluminide coating on the nickel based superalloy Mar M247 deposited by the CVD aluminizing process, Arch. Metall. Mater. 3 (2013) 697-701.

DOI: 10.2478/amm-2013-0057

[6] M. Zielińska, M. Yavorska, M. Poręba, J. Sieniawski, Thermal properties of cast nickel based superalloys, Arch. Mater. Sci. Eng. 44 (2010) 35-38.

[7] M. Drajewicz, M. Góral, M. Pytel, J. Sieniawski, Thermophysical properties of selected powders for thermal barrier coatings, J. Achiev. Mater. Manuf. Eng., 55(2012) 902-906.

[8] M. Zielińska, M. Zagula-Yavorska, J. Sieniawski, R. Filip, Microstructure and oxidation resistance of an aluminide coating on the nickel based superalloy Mar M247 deposited by the CVD aluminizing process, Arch. Metall. Mater. 3 (2013) 697-701.

DOI: 10.2478/amm-2013-0057

[9] J. Romanowska, M. Zagula-Yavorska,J. Sieniawski, The zirconium influence on the microstructure of the aluminide coatings deposited on the nickel substrate by the CVD method, Bull. Mater. Sci. 36 (2013) 1043-1048.

DOI: 10.1007/s12034-013-0579-4

[10] J. Romanowska, Aluminium diffusion in aluminide coatings deposited by the CVD method on pure nickel, CALPHAD, 44(2014) 114-118.

DOI: 10.1016/j.calphad.2013.09.003

[11] Y. Terada, K. Ohkubo, T. Mohri, T. Suzuki, Effects of ternary additions on thermal conductivity of NiAl, Intermetallics 7 (1999) 717-723.

DOI: 10.1016/s0966-9795(98)00088-0
