Analysis of Action Viscous Torsional Vibration Damper of the Crankshaft Based on Transverse Vibration the Engine Block

Abstract:

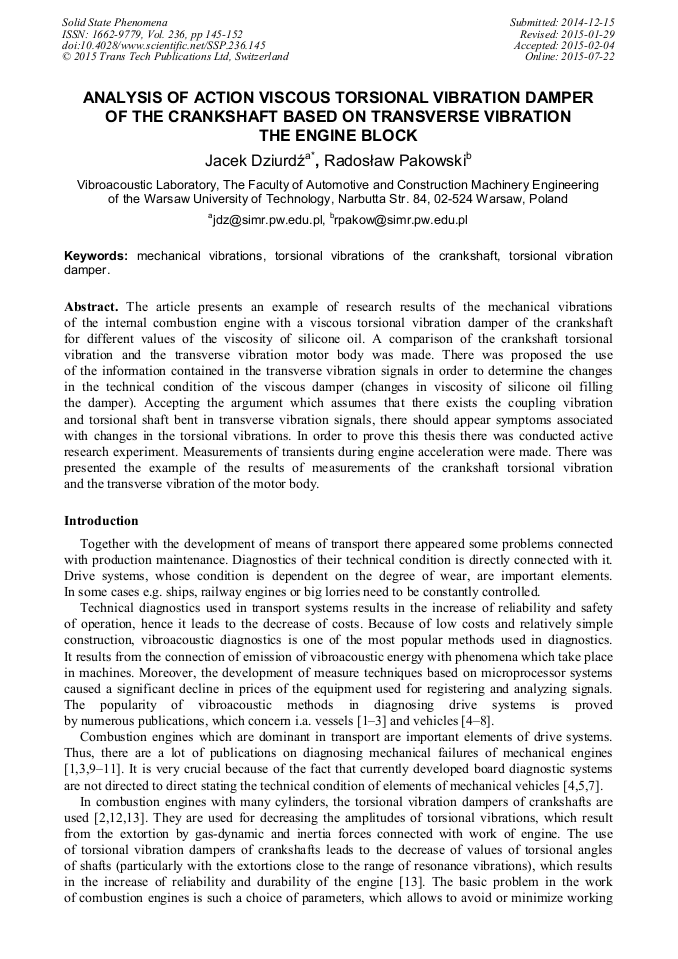

The article presents an example of research results of the mechanical vibrations of the internal combustion engine with a viscous torsional vibration damper of the crankshaft for different values of the viscosity of silicone oil. A comparison of the crankshaft torsional vibration and the transverse vibration motor body was made. There was proposed the use of the information contained in the transverse vibration signals in order to determine the changes in the technical condition of the viscous damper (changes in viscosity of silicone oil fillingthe damper). Accepting the argument which assumes that there exists the coupling vibration and torsional shaft bent in transverse vibration signals, there should appear symptoms associated with changes in the torsional vibrations. In order to prove this thesis there was conducted active research experiment. Measurements of transients during engine acceleration were made. There was presented the example of the results of measurements of the crankshaft torsional vibrationand the transverse vibration of the motor body.

• Periodical: Solid State Phenomena (Volume 236)
• Pages: 145-152
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.236.145
• Online since: July 2015
• Authors: Jacek Dziurdź*, Radosław Pakowski
• Keywords: Mechanical Vibrations, Torsional Vibration Damper, Torsional Vibrations of the Crankshaft
