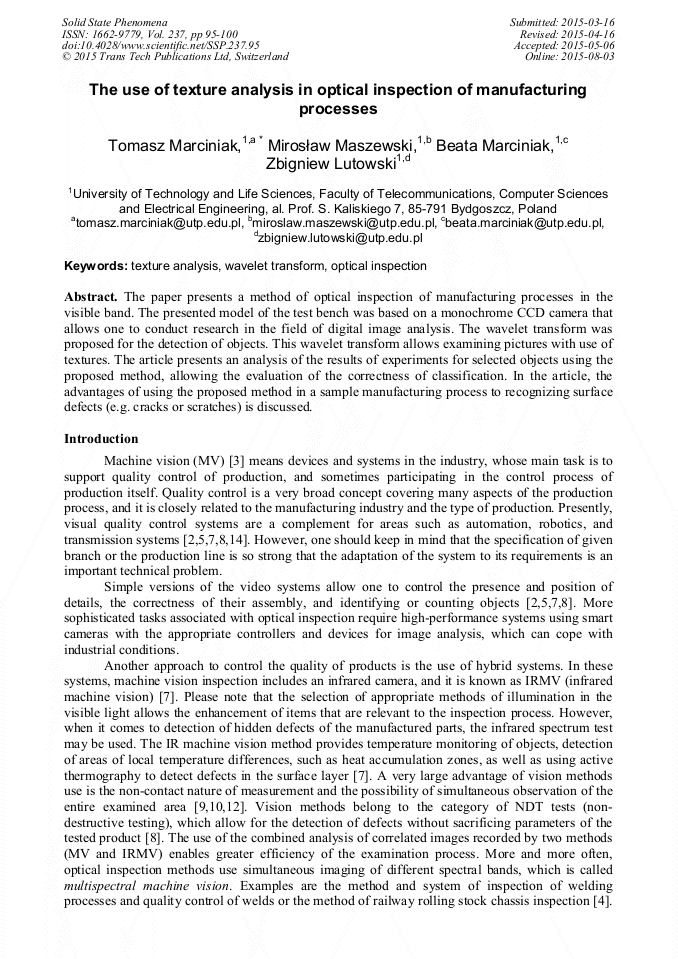

The Use of Texture Analysis in Optical Inspection of Manufacturing Processes

Abstract:

The paper presents a method of optical inspection of manufacturing processes in the visible band. The presented model of the test bench was based on a monochrome CCD camera that allows one to conduct research in the field of digital image analysis. The wavelet transform was proposed for the detection of objects. This wavelet transform allows examining pictures with use of textures. The article presents an analysis of the results of experiments for selected objects using the proposed method, allowing the evaluation of the correctness of classification. In the article, the advantages of using the proposed method in a sample manufacturing process to recognizing surface defects (e.g. cracks or scratches) is discussed.

• Periodical: Solid State Phenomena (Volume 237)
• Pages: 95-100
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.237.95
• Online since: August 2015
• Authors: Tomasz Marciniak*, Mirosław Maszewski, Beata Marciniak, Zbigniew Lutowski
• Keywords: Optical Inspection, Texture Analysis, Wavelet Transform
