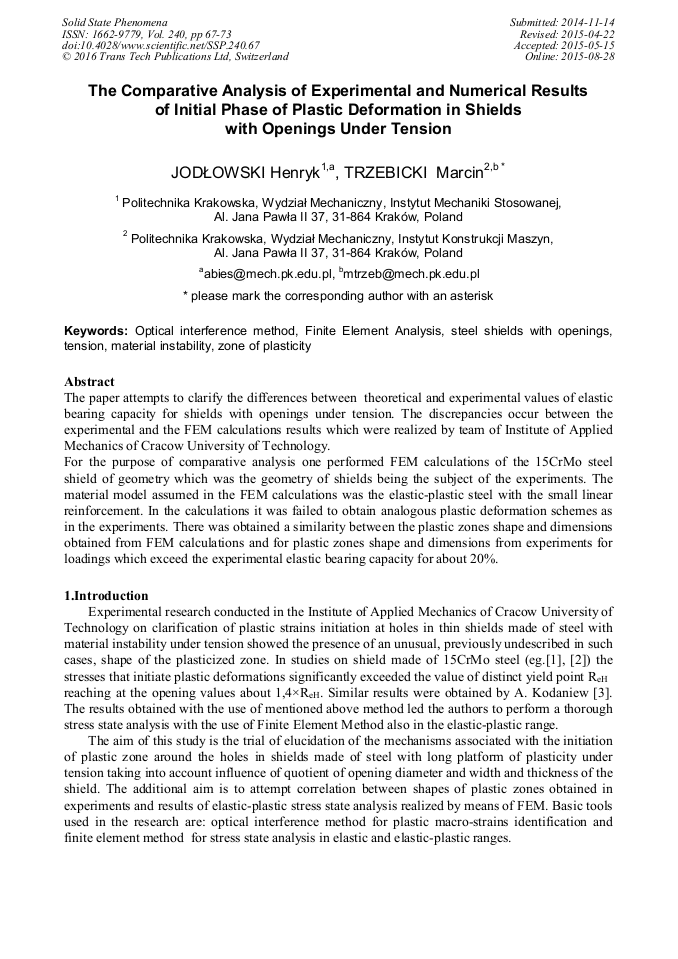

The Comparative Analysis of Experimental and Numerical Results of Initial Phase of Plastic Deformation in Shields with Openings under Tension

Abstract:

The paper attempts to clarify the differences between theoretical and experimental values of elastic bearing capacity for shields with openings under tension. The discrepancies occur between the experimental and the FEM calculations results which were realized by team of Institute of Applied Mechanics of Cracow University of Technology.For the purpose of comparative analysis one performed FEM calculations of the 15CrMo steel shield of geometry which was the geometry of shields being the subject of the experiments. The material model assumed in the FEM calculations was the elastic-plastic steel with the small linear reinforcement. In the calculations it was failed to obtain analogous plastic deformation schemes as in the experiments. There was obtained a similarity between the plastic zones shape and dimensions obtained from FEM calculations and for plastic zones shape and dimensions from experiments for loadings which exceed the experimental elastic bearing capacity for about 20%.

• Periodical: Solid State Phenomena (Volume 240)
• Pages: 67-73
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.240.67
• Online since: August 2015
• Authors: Henryk Jodłowski, Marcin Trzebicki*
• Keywords: Finite Element Analysis (FEA), Material Instability, Optical Interference Method, Steel Shields with Openings, Tension, Zone of Plasticity

References

[1] Bućko S., Jodłowski H., Inicjacja odkształceń plastycznych w stali z wyraźną granicą plastyczności w warunkach gradientu naprężeń, Acta Mechanica et Automatica, v. 3, nr 1, Białystok (2009).

[2] Bućko S., Jodłowski H., Trzebicki M., Numerical-experimental analysis of plastic flow beginning phase round the hole in the thin shield under tension,; Acta Mechanica et Automatica, vol. 6, nr 1 (2012).

[3] Kodaniew A. I., Koncentracija napriażenij w płasticzeskoj obłasti, Trudy Akademii, wyp. 316, izd. WWIA im. N. E. Żukowskogo, (1949).

[4] Jodłowski H., Metoda rozpoznawania odkształceń plastycznych w procesie obciążania stali wykazujących niestateczność materiałową: Praca doktorska, Politechnika Krakowska, Wydział Mechaniczny, Kraków (2007).

[5] Bućko S., Jodłowski H., Trzebicki M., An experimental-numerical analysis of plastic zones initiation around holes in shields made of steel 45 under tension, Archive of Mechanical Engineerng, nr 1/(2014).

DOI: 10.2478/meceng-2014-0011

[6] Bućko S., Jodłowski H., Metoda trepanacji otworowej – podstawy teoretyczne i praktyka jej stosowania w pomiarach naprężeń, Czasopismo Techniczne z. 13-M/2004, Wydawnictwo Politechniki Krakowskiej.

[7] Szczepiński W.: Mechanika plastycznego płynięcia, PWN, Warszawa (1978).
