Ultrasonic Rheo-Diecasting of A383 Aluminum Alloy

Article Preview

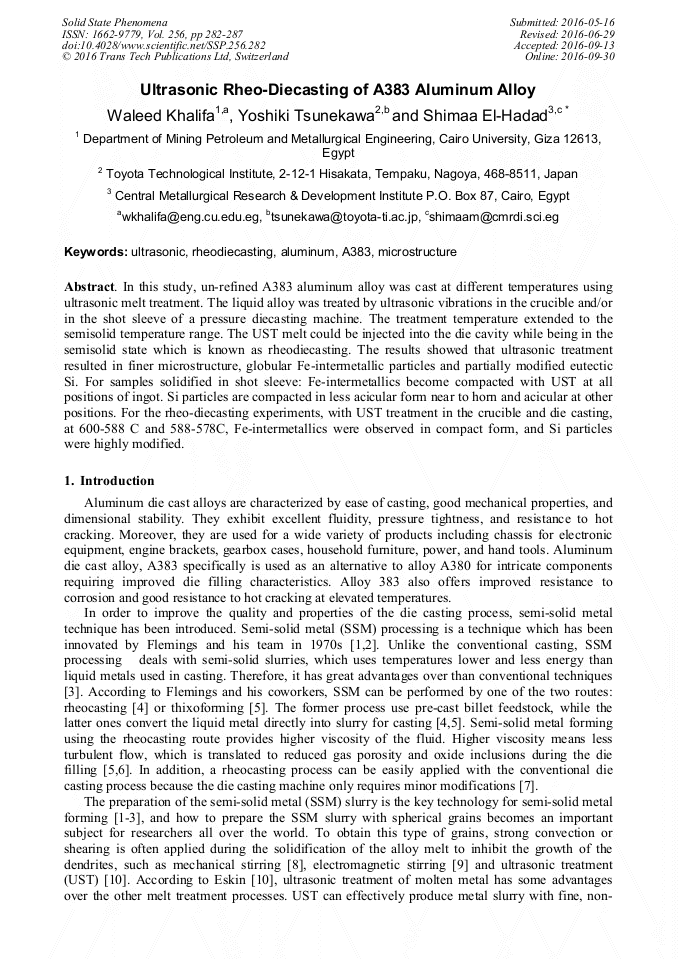

Abstract:

In this study, un-refined A383 aluminum alloy was cast at different temperatures using ultrasonic melt treatment. The liquid alloy was treated by ultrasonic vibrations in the crucible and/or in the shot sleeve of a pressure diecasting machine. The treatment temperature extended to the semisolid temperature range. The UST melt could be injected into the die cavity while being in the semisolid state which is known as rheodiecasting. The results showed that ultrasonic treatment resulted in finer microstructure, globular Fe-intermetallic particles and partially modified eutectic Si. For samples solidified in shot sleeve: Fe-intermetallics become compacted with UST at all positions of ingot. Si particles are compacted in less acicular form near to horn and acicular at other positions. For the rheo-diecasting experiments, with UST treatment in the crucible and die casting, at 600-588 C and 588-578C, Fe-intermetallics were observed in compact form, and Si particles were highly modified.

You might also be interested in these eBooks

Info:

Periodical:

Solid State Phenomena (Volume 256)

Pages:

282-287

Citation:

Online since:

September 2016

Export:

Price:

Permissions CCC:

Permissions PLS:

Сopyright:

© 2016 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

[1] D.B. Spencer, R. Mehrabian, M.C. Flemings, Rheological behavior of Sn-15 Pct Pb in the crystallization range Metall Mater Trans B, 3 (1972) 1925–(1932).

DOI: 10.1007/bf02642580

Google Scholar

[2] Flemings: Solidification Processing, McGraw-Hill Book Company, New York, NY, (1974).

Google Scholar

[3] Z. Wang, Zesheng Ji, , M. Hu, H. Xu, Evolution of the semi-solid microstructure of ADC12 alloy in a modified SIMA process, Trans. Nonferrous Met. Soc. China 25 (2015) 1419-1426.

DOI: 10.1016/j.matchar.2011.07.003

Google Scholar

[4] M.C. Flemings, R.G. Riek, K.P. Young, Rheocasting Mater Sci Eng, 25 (1976) 103–117.

Google Scholar

[5] M.C. Flemings, Behavior of metal alloys in the semisolid state, Metall Mater Trans A, 22 (1991), p.957–981.

DOI: 10.1007/bf02661090

Google Scholar

[6] Z. FAN Z, X. FANG, S. JI S. Microstructure and mechanical properties of rheo-diecast (RDC) aluminium alloy [J]. Materials Science and Engineering A, 412 (2005) 298-306.

DOI: 10.1016/j.msea.2005.09.001

Google Scholar

[7] S. Jandom, T. Rattanochaikul, R. Burapa, S. Wisutmethangoon, J. Wannasin, Feasibility of semi-solid die casting of ADC12 aluminum alloy, Trans. Nonferrous Met. Soc. China 20 (2010) 1756-1762.

DOI: 10.1016/s1003-6326(09)60370-8

Google Scholar

[8] S.M.J. Alvani, H. Aashuri, A. Kokabi, R. Beygi. Semisolid joining of aluminum A356 alloy by partial remelting and mechanical stirring [J]. Trans. Nonferrous Met. Soc. China, 20 (2010) 1792-1798.

DOI: 10.1016/s1003-6326(09)60376-9

Google Scholar

[9] Z. LIU, M. Wei-min, L. Xiao-mei. Characterization on morphology evolution of primary phase in semisolid A356 under slightly electromagnetic stirring [J]. Trans. Nonferrous Met. Soc. China, 20 (2010) 805-810.

DOI: 10.1016/s1003-6326(10)60585-7

Google Scholar

[10] I.G. Eskin. Ultrasonic treatment of light alloy melts [M]. Amsterdam: Elsevier, (1998).

Google Scholar

[11] I.G. Brodova, P. Popel, I.G. Eskin. Liquid metal processing: Applications to aluminum alloys production [M]. London: Taylor &Francis, CRC Press, (2001).

Google Scholar

[12] W. Khalifa, S. El-Hadad, Y. Tsunekawa. Microstructure and Wear Behavior of Solidification Sonoprocessed B390 Hypereutectic Al-Si Alloy. Metallurgical and Materials Trans. 44A (2013) 5817-5824.

DOI: 10.1007/s11661-013-1936-z

Google Scholar

[13] W. Khalifa, S. El-Hadad, Y. Tsunekawa. Microstructure characteristics and tensile property of ultrasonic treated-thixocast A356 alloy, Trans. Nonferrous Met. Soc. China 25 (2015) 3173-3180.

DOI: 10.1016/s1003-6326(15)63949-8

Google Scholar

[14] M. Fadl, W. Khalifa, S. El-Hadad, Effect of Soaking Treatment on Microstructure and Wear Behavior of Ultrasonic Melt-Treated B390 Hypereutectic Al-Si Alloy, Light Metals (2016) 821-825.

DOI: 10.1002/9781119274780.ch139

Google Scholar

[15] W. Khalifa, Y. Tsunekawa, Production of Grain-Refined Billets of the AC7A Al-Mg Alloy via Solidification in Ultrasonic Field, Trans. Nonferrous Met. Soc. China. 26 (2016) 930−937.

DOI: 10.1016/s1003-6326(16)64186-9

Google Scholar

[16] W. Khalifa, Y. Tsunekawa, M. Okumiya, Effect of Ultrasonic Melt-Treatment on the Eutectic Silicon and Iron Intermetallic Phases in Al-Si cast Alloys, Materials Science Forum, 638-642 (2010), 431-436.

DOI: 10.4028/www.scientific.net/msf.638-642.431

Google Scholar
