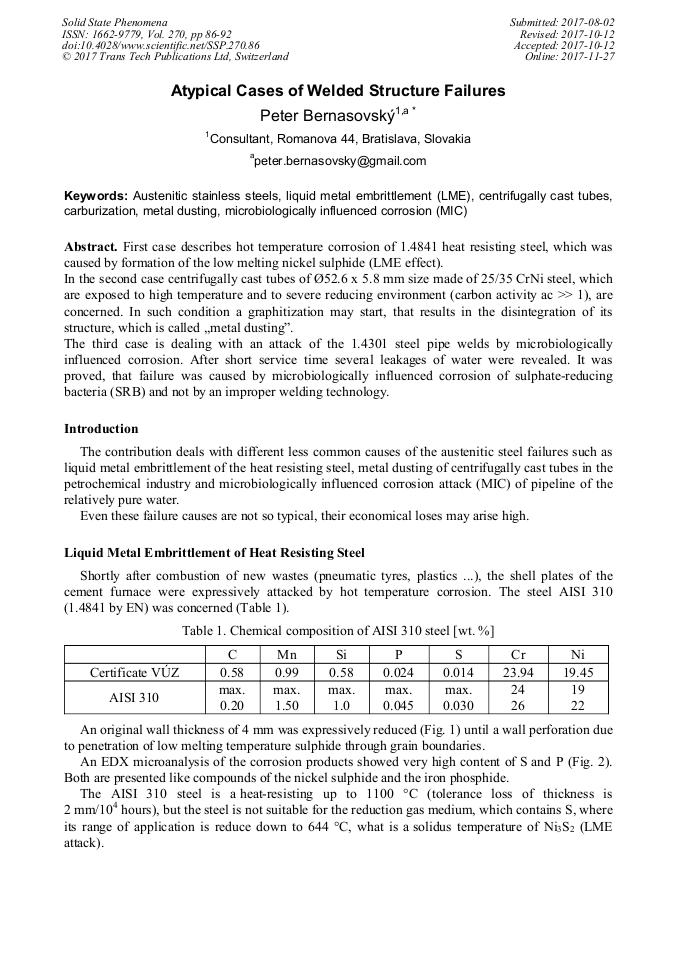

Atypical Cases of Welded Structure Failures

Abstract:

First case describes hot temperature corrosion of 1.4841 heat resisting steel, which was caused by formation of the low melting nickel sulphide (LME effect).In the second case centrifugally cast tubes of Ø52.6 x 5.8 mm size made of 25/35 CrNi steel, which are exposed to high temperature and to severe reducing environment (carbon activity ac >> 1), are concerned. In such condition a graphitization may start, that results in the disintegration of its structure, which is called ,,metal dusting”.The third case is dealing with an attack of the 1.4301 steel pipe welds by microbiologically influenced corrosion. After short service time several leakages of water were revealed. It was proved, that failure was caused by microbiologically influenced corrosion of sulphate-reducing bacteria (SRB) and not by an improper welding technology.

• Periodical: Solid State Phenomena (Volume 270)
• Pages: 86-92
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.270.86
• Online since: November 2017
• Authors: Peter Bernasovský*
• Keywords: Austenitic Stainless Steels, Carburization, Centrifugally Cast Tubes, Liquid Metal Embrittlement (LME), Metal Dusting, Microbiologically Influenced Corrosion (MIC)

References

[1] Bernasovský, P., Brziak, P.: Metallurgical aspects of centrifugally cast tubes failures in pyrolysis furnaces. Conference of metallographical contribution, Libverda spa, June (2002).

[2] Jacobi D., Gommans, R.: Typical pyrolysis coil failure and how to combat them. Spring National Meeting, New Orleans, March 10-14, (2002).

[3] Hrivňak, I., Čaplovič, Ľ., Bakay, G., Bitter, A.: Metal dusting of inlet tubes made of Alloy 800. Metallic Materials, No. 43, (2005).

[4] Zhang, J et al.: Characterisation of the coke formed during metal dusting. Corr. Sci. Vol. 45, no. 10, (2002).

[5] Natesan et al.: Study of metal dusting phenomenon in simulated process environments. Argone Nat-Lab. Illinois, 60439.

[6] Kikuchi, Y.: MIC of Stainless steel Weldments, Transaction of JWRI, Osaka, No. 1/95.

[7] Walsh D.W.: Corrosion 99, NACE International, Houston 1999, Paper No. 188.
