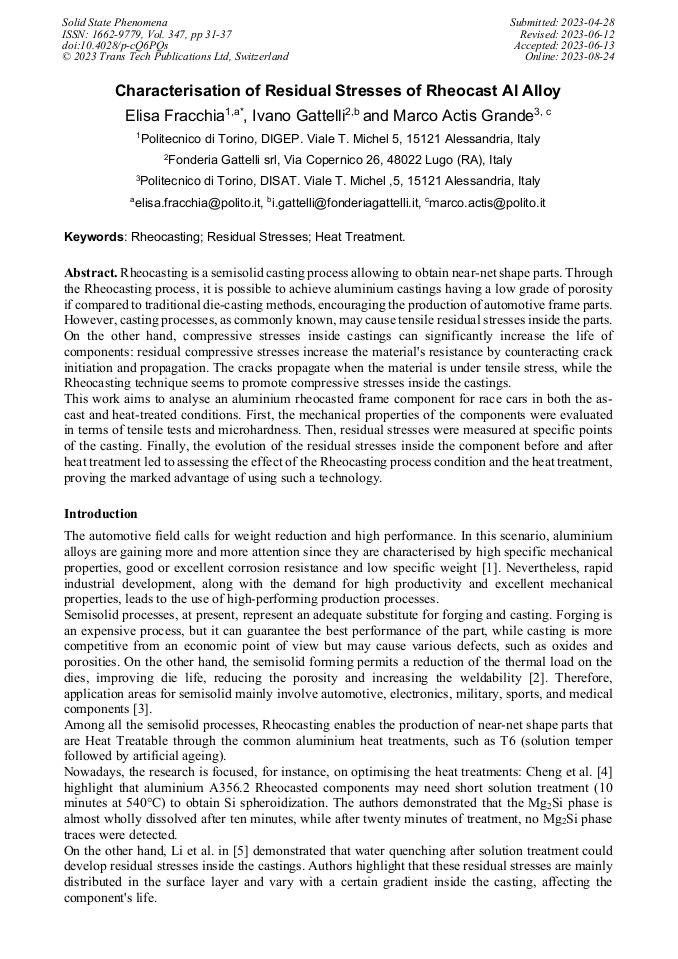

Characterisation of Residual Stresses of Rheocast Al Alloy

Abstract:

Rheocasting is a semisolid casting process allowing to obtain near-net shape parts. Through the Rheocasting process, it is possible to achieve aluminium castings having a low grade of porosity if compared to traditional die-casting methods, encouraging the production of automotive frame parts. However, casting processes, as commonly known, may cause tensile residual stresses inside the parts. On the other hand, compressive stresses inside castings can significantly increase the life of components: residual compressive stresses increase the material's resistance by counteracting crack initiation and propagation. The cracks propagate when the material is under tensile stress, while the Rheocasting technique seems to promote compressive stresses inside the castings. This work aims to analyse an aluminium rheocasted frame component for race cars in both the as-cast and heat-treated conditions. First, the mechanical properties of the components were evaluated in terms of tensile tests and microhardness. Then, residual stresses were measured at specific points of the casting. Finally, the evolution of the residual stresses inside the component before and after heat treatment led to assessing the effect of the Rheocasting process condition and the heat treatment, proving the marked advantage of using such a technology.

• Periodical: Solid State Phenomena (Volume 347)
• Pages: 31-37
• DOI: https://doi.org/10.4028/p-cQ6PQs
• Online since: August 2023
• Authors: Elisa Fracchia*, Ivano Gattelli, Marco Actis Grande
• Keywords: Heat Treatment, Residual Stresses, Rheocasting

References

[1] Z. Liu, Y. Li, J. Zhao, L. Fu, L. Li, K. Yu, X. Mao, P. Zhao, Research on Aluminum Alloy Materials and Application Technology for Automobile Lightweight. Materials China 41 (2022).

[2] A.E.W. Jarfors, Semisolid Casting of Metallic Parts and Structures, Encyclopedia of Materials: Metals and Alloys, 2021.

DOI: 10.1016/b978-0-12-819726-4.00052-1

[3] A.E.W. Jarfors, A Comparison between Semisolid Casting Methods for Aluminium Alloys. Metals (Basel) 10 10 (2020) 1368.

DOI: 10.3390/met10101368

[4] L. Cheng, H. Lu, M. Luo, X. Li, W. Zhang, Q. Zhu, The Effect of Solution Time on the Microstructure of A356.2 Aluminum Alloy Provided by Rheocasting and Squeeze Casting, Solid State Phenomena; 327 (2022) 189–196.

DOI: 10.4028/www.scientific.net/SSP.327.189

[5] K. Li, B. Xiao, Q. Wang, Residual Stresses in As-Quenched Aluminum Castings. SAE International Journal of Materials and Manufacturing, 1 (2009).

DOI: 10.4271/2008-01-1425

[6] L.A. Godlewski, X. Su, T.M. Pollock, J.E. Allison, The Effect of Aging on the Relaxation of Residual Stress in Cast Aluminum, Metall Mater Trans A, Sci, 44A, (2013).

DOI: 10.1007/s11661-013-1800-1

[7] I. Gattelli, G. Chiarmetta, M. Boschini, R. Moschini, M. Rosso, I. Peter, New Generation of Brake Callipers to Improve Competitiveness and Energy Savings in Very High Performance Cars, Solid State Phenomena; 217–218 (2014) 471-480.

DOI: 10.4028/www.scientific.net/SSP.217-218.471

[8] E. Fracchia, F.S. Gobber, C. Mus, Y. Kobayashi, M. Rosso, About Residual Stress State of Castings: The Case of HPDC Parts and Possible Advantages through Semi-Solid Processes, Solid State Phenomena, 327 (2022) 272-278.

DOI: 10.4028/www.scientific.net/SSP.327.272

[9] E. Fracchia, F.S. Gobber, M. Rosso, Y. Kobayashi, C. Mus, Residual Stress Analysis Applied to HPDC Alluminium Components: A Case Study, Metallurgia Italiana 113 (2021).

[10] S. Tahamtan, M.A. Golozar, F. Karimzadeh, B. Niroumand, Microstructure and Tensile Properties of Thixoformed A356 Alloy, Mater. Charact. 59 (2008).

DOI: 10.1016/j.matchar.2006.12.010

[11] M. Rosso, I. Peter, R. Villa, Effects of T5 and T6 Heat Treatments Applied to Rheocast A356 Parts for Automotive Applications. Solid State Phenomena, 141-143 (2008) 237-242.

DOI: 10.4028/www.scientific.net/SSP.141-143.237

[12] C. Park, S. Kim, Y. Kwon, Y. Lee, J. Lee, Mechanical and Corrosion Properties of Rheocast and Low-Pressure Cast A356-T6 Alloy, Materials Science and Engineering A, 391 1-2 (2005) 86-94.

DOI: 10.1016/j.msea.2004.08.056

[13] R. Canyook, S. Petsut, S. Wisutmethangoon, M.C. Flemings, J. Wannasin, Evolution of Microstructure in Semi-Solid Slurries of Rheocast Aluminum Alloy. Transactions of Nonferrous Metals Society of China (English Edition) 20 (2010).

DOI: 10.1016/S1003-6326(09)60353-8

[14] H. Möller, G. Govender, W.E. Stumpf, R.D. Knutsen, Influence of Temper Condition on Microstructure and Mechanical Properties of Semisolid Metal Processed Al-Si-Mg Alloy A356, International Journal of Cast Metals Research 22 (2009).

DOI: 10.1179/174313309X436682

[15] M. Vashista, S. Paul, Correlation between Full Width at Half Maximum (FWHM) of XRD Peak with Residual Stress on Ground Surfaces. Philosophical Magazine, 92 (2012) 4194-4204.

DOI: 10.1080/14786435.2012.704429

[16] A. Díaz, I. Cuesta, J.M. Alegre, A.M.P de Jesus, J.M. Manso, Residual Stresses in Cold-Formed Steel Members: Review of Measurement Methods and Numerical Modelling. Thin-Walled Structures 159 107335 (2021).

DOI: 10.1016/j.tws.2020.107335
