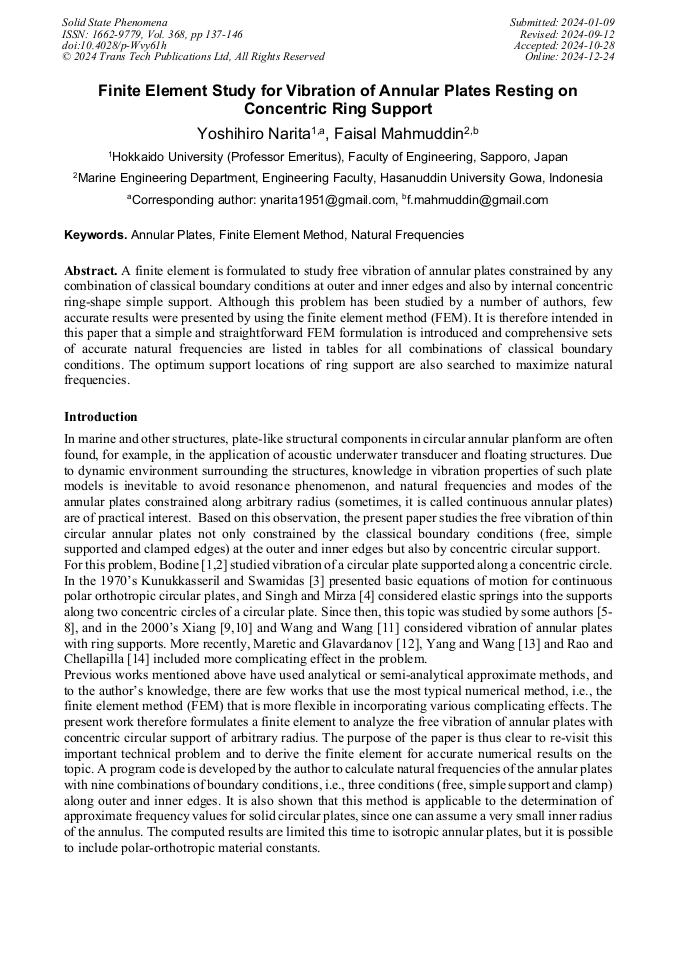

Finite Element Study for Vibration of Annular Plates Resting on Concentric Ring Support

Abstract:

A finite element is formulated to study free vibration of annular plates constrained by any combination of classical boundary conditions at outer and inner edges and also by internal concentric ring-shape simple support. Although this problem has been studied by a number of authors, few accurate results were presented by using the finite element method (FEM). It is therefore intended in this paper that a simple and straightforward FEM formulation is introduced and comprehensive sets of accurate natural frequencies are listed in tables for all combinations of classical boundary conditions and a range of internal support location.

• Periodical: Solid State Phenomena (Volume 368)
• Pages: 137-146
• DOI: https://doi.org/10.4028/p-Wvy61h
• Online since: December 2024
• Authors: Yoshihiro Narita, Faisal Mahmuddin*
• Keywords: Annular Plates, Finite Element Method, Natural Frequencies

References

[1] R. Y. Bodine, "The fundamental frequency of a thin, flat, circular plate simply supported along a circle of arbitrary radius," J Appl. Mech. ASME 26, 666-668 (1959).

DOI: 10.1115/1.4012131

[2] R. Y. Bodine, "Vibration of a circular plate supported by a concentric ring of arbitrary radius," J. Acous. Soc. Ame. 41, 1551-1552 (1967).

DOI: 10.1121/1.1910524

[3] V. X. Kunukkasseril and A.S.J. Swamidas, "Vibration of continuous circular plates," Int. J. Solids Struct. 10, 603-619 (1974).

DOI: 10.1016/0020-7683(74)90045-6

[4] A. V. Singh and S. Mirza, "Free axisymmetric vibration of a circular plate elastically supported along two concentric circles," J. Sound Vibr. 48, 425-429 (1976).

DOI: 10.1016/0022-460x(76)90068-7

[5] Y. Narita, "Free vibration of continuous polar orthotropic annular and circular plates," J. Sound Vibr. 93 503-511, (1984).

DOI: 10.1016/0022-460x(84)90419-x

[6] P.A. Laura and R.H. Gutierrez, "Transverse vibrations of circular plates and membranes with internal intermediate supports," J. Sound Vibr. 113 81-86 (1987).

DOI: 10.1016/s0022-460x(87)81342-1

[7] S. Azimi, "Free vibration of circular plates with elastic or rigid interior support," J. Sound Vibr. 120 37-52 (1988).

DOI: 10.1016/0022-460x(88)90333-1

[8] K.M. Liew, "Vibration of eccentric ring and line supported circular plates carrying concentrated masses," J. Sound Vibr., 156 99-107 (1992).

DOI: 10.1016/0022-460x(92)90814-e

[9] Y. Xiang, "Exact vibration solutions for circular Mindlin plates with multiple concentric ring supports," Intl. J. Solids Struct. 39 6081-6102 (2002).

DOI: 10.1016/s0020-7683(02)00494-8

[10] Y. Xiang, "Vibration of circular Mindlin plates with concentric elastic ring supports," Int. J. Mech. Sci. 45 497-517 (2002).

DOI: 10.1016/s0020-7403(03)00059-6

[11] C.Y. Wang and C.M. Wang, "Fundamental frequencies of circular plates with internal elastic ring support," J. Sound Vibr., 263 1071-1078 (2003).

DOI: 10.1016/s0022-460x(03)00275-x

[12] R. Maretic and V. Glavardanov, "Vibration of circular plate with an internal elastic ring support under exterior edge pressure," Int. J. Struct. Stabil. Dyn. 14 (2014).

DOI: 10.1142/s0219455413500533

[13] C.Y. Yang, "The vibration modes of concentrically supported free circular plates," J. Sound Vibr. 333 835-847 (2014).

DOI: 10.1016/j.jsv.2013.10.003

[14] L.B. Rao and K.C. Chellapilla, "Vibrations of a circular plate supported on a rigid concentric ring with translational restraint boundary," Engng. Trans. 64 259-269 (2016).

[15] Y. Narita, "Accurate results by the Ritz method for free vibration of uniform annular plates," Const. Tech. Archit. 7 11-20, (2023).

DOI: 10.4028/p-psqb6l
