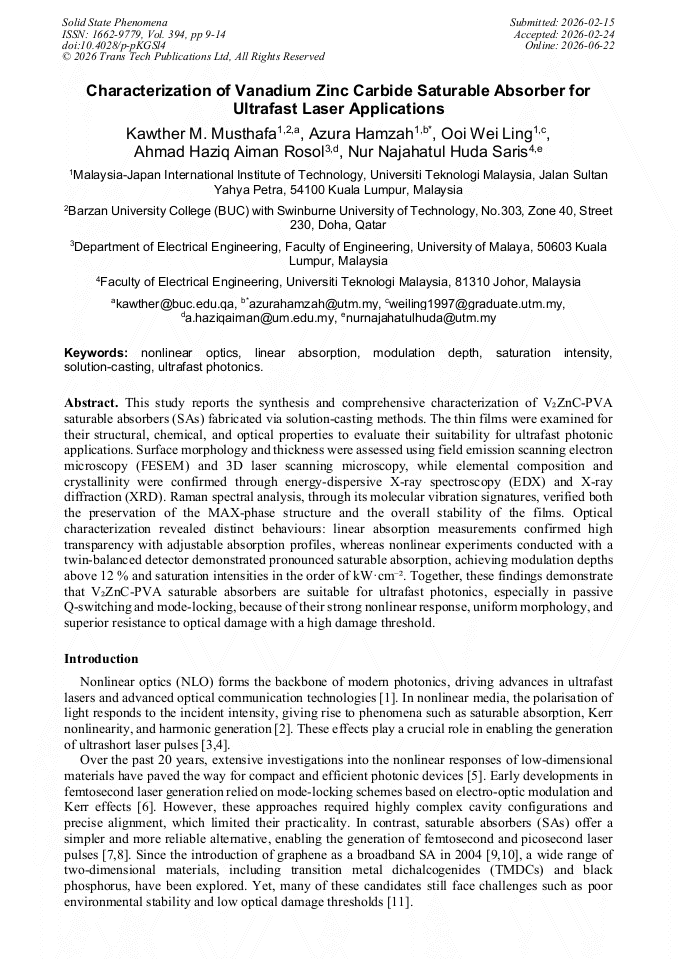

Characterization of Vanadium Zinc Carbide Saturable Absorber for Ultrafast Laser Applications

Abstract:

This study reports the synthesis and comprehensive characterization of V₂ZnC-PVA saturable absorbers (SAs) fabricated via solution-casting methods. The thin films were examined for their structural, chemical, and optical properties to evaluate their suitability for ultrafast photonic applications. Surface morphology and thickness were assessed using field emission scanning electron microscopy (FESEM) and 3D laser scanning microscopy, while elemental composition and crystallinity were confirmed through energy-dispersive X-ray spectroscopy (EDX) and X-ray diffraction (XRD). Raman spectral analysis, through its molecular vibration signatures, verified both the preservation of the MAX-phase structure and the overall stability of the films. Optical characterization revealed distinct behaviours: linear absorption measurements confirmed high transparency with adjustable absorption profiles, whereas nonlinear experiments conducted with a twin-balanced detector demonstrated pronounced saturable absorption, achieving modulation depths above 12 % and saturation intensities in the order of kW·cm^-2. Together, these findings demonstrate that V₂ZnC-PVA saturable absorbers are suitable for ultrafast photonics, especially in passive Q-switching and mode-locking, because of their strong nonlinear response, uniform morphology, and superior resistance to optical damage with a high damage threshold.

• Periodical: Solid State Phenomena (Volume 394)
• Pages: 9-14
• DOI: https://doi.org/10.4028/p-pKGSl4
• Online since: June 2026
• Authors: Kawther M. Musthafa, Azura Hamzah*, Ooi Wei Ling, Ahmad Haziq Aiman Rosol, Nur Najahatul Huda Saris
• Keywords: Linear Absorption, Modulation Depth, Nonlinear Optics, Saturation Intensity, Solution-Casting, Ultrafast Photonics

References

[1] J. W. You, S. R. Bongu, and Q. Bao, Nonlinear optical properties and applications of 2D materials: theoretical and experimental aspects, Nanophotonics, vol. 8, no. 1, p.63–97 (2019).

DOI: 10.1515/nanoph-2018-0106

[2] H. Ahmad, S. N. Aidit, and I. S. Ooi, Mode-locked thulium-fluoride fibre laser with an adjustable pulse width using a nonlinear optical loop mirror, Quantum Electronics, vol. 49, no. 2, p.111–114 (2019).

DOI: 10.1070/qel16770

[3] G. H. C. New, Nonlinear optics: the first 50 years, Contemporary Physics, vol. 52, no. 4, p.281–292 (2011).

[4] S. Yamashita, Nonlinear optics in carbon nanotube, graphene, and related 2D materials, APL Photonics, vol. 4, no. 3 (2019).

DOI: 10.1063/1.5051796

[5] Hybrid integration of 2D materials for on-chip nonlinear photonics, Light: Advanced Manufacturing (2023).

[6] G. Ramírez-Meléndez, M. Bello-Jiménez, and O. Pottiez, Q-switching of an all-fiber ring laser based on in-fiber acousto-optic bandpass modulator, Applied Physics B, vol. 123, no. 9, p.249 (2017).

DOI: 10.1007/s00340-017-6828-2

[7] S. Vijayalakshmi, A. Lan, Z. Iqbal, and H. Grebel, Nonlinear optical properties of laser-ablated silicon nanostructures, Journal of Applied Physics, vol. 92, no. 5, p.2490–2494 (2002).

DOI: 10.1063/1.1498881

[8] S. Yefet and A. Pe'er, A review of cavity design for Kerr lens mode-locked solid-state lasers, Applied Sciences, vol. 3, no. 4, p.694–724 (2013).

DOI: 10.3390/app3040694

[9] K. S. Novoselov et al., Electric field effect in atomically thin carbon films, Science, vol. 306, no. 5696, p.666–669 (2004).

DOI: 10.1126/science.1102896

[10] S. Yefet and A. Pe'er, A review of cavity design for Kerr lens mode-locked solid-state lasers, Applied Sciences, vol. 3, no. 4, p.694–724 (2013).

DOI: 10.3390/app3040694

[11] W. J. Liu, L. H. Pang, and H. N. Han, Tungsten disulfide saturable absorbers for 67 fs mode-locked erbium-doped fiber lasers, Optics Express, vol. 25, no. 3, p.2950–2959 (2017).

DOI: 10.1364/oe.25.002950

[12] M. Naguib, M. Kurtoglu, and V. Presser, Two-dimensional nanocrystals produced by exfoliation of Ti₃AlC₂, Advanced Materials, vol. 23, no. 37, p.4248–4253 (2011).

DOI: 10.1002/adma.201102306

[13] J. Feng, X. Li, and T. Feng, Harmonic mode-locked Er-doped fiber laser by evanescent field-based MXene Ti₃C₂Tx (T = F, O, or OH) saturable absorber, Annalen der Physik, vol. 532, no. 1, p.1900437 (2020).

DOI: 10.1002/andp.201900437

[14] K. M. Musthafa, A. Hamzah, O. W. Ling, A. H. A. Rosol, N. Mohamed, and S. W. Harun, Q-switched giant pulsed erbium-doped all-fiber laser with V₂ZnC MAX phase saturable absorber, Optoelectronics Letters, vol. 20, no. 6, p.321–329 (2024).

DOI: 10.1007/s11801-024-3102-9

[15] C. Wang, T. Chen, Z. Meng, S. Niu, Z. Li, and X. Yang, Mo₂TiAlC₂ as a saturable absorber for a passively Q-switched Tm:YAlO₃ laser, Nanomaterials, vol. 14, no. 22, p.1823 (2024).

DOI: 10.3390/nano14221823

[16] T. Li, T. Feng, J. Huang, Z. Ni, W. Qiao, et al., Nonlinear optical modulation characteristics of MXene VCrC for pulsed lasers, Molecules, vol. 27, no. 3, p.759 (2022).

DOI: 10.3390/molecules27030759

[17] H. Ahmad, S. N. Aidit, and N. A. Hassan, Tunable mode-locked laser with micro-air gap cavity, Optics and Laser Technology, vol. 88, p.222–225 (2017).

DOI: 10.1016/j.optlastec.2016.09.016
