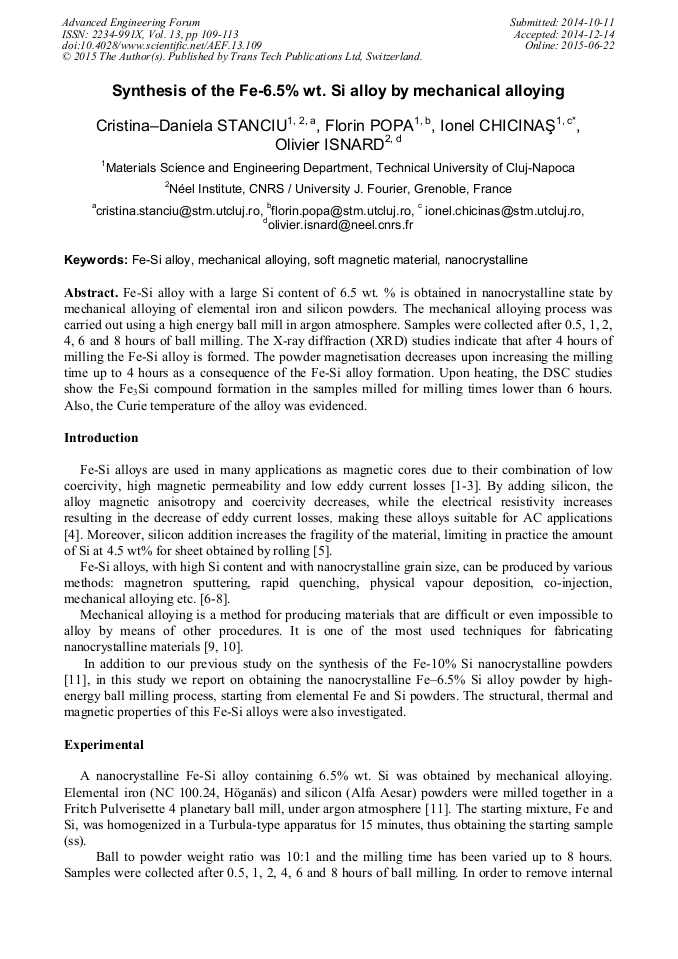

Synthesis of the Fe-6.5% wt. Si Alloy by Mechanical Alloying

Abstract:

Fe-Si alloy with a large Si content of 6.5 wt. % is obtained in nanocrystalline state by mechanical alloying of elemental iron and silicon powders. The mechanical alloying process was carried out using a high energy ball mill in argon atmosphere. Samples were collected after 0.5, 1, 2, 4, 6 and 8 hours of ball milling. The X-ray diffraction (XRD) studies indicate that after 4 hours of milling the Fe-Si alloy is formed. The powder magnetisation decreases upon increasing the milling time up to 4 hours as a consequence of the Fe-Si alloy formation. Upon heating, the DSC studies show the Fe₃Si compound formation in the samples milled for milling times lower than 6 hours. Also, the Curie temperature of the alloy was evidenced.

• Periodical: Advanced Engineering Forum (Volume 13)
• Pages: 109-113
• DOI: https://doi.org/10.4028/www.scientific.net/AEF.13.109
• Online since: June 2015
• Authors: Cristina Daniela Stanciu, Florin Popa, Ionel Chicinaş*, Olivier Isnard
• Keywords: Fe-Si Alloy, Mechanical Alloying, Nanocrystalline, Soft Magnetic Material

References

[1] J. Ding, Y. Li, L.F. Chen, C.R. Deng, Y. Shi, Y.S. Chow, T.B. Gang, Microstructure and soft magnetic properties of nanocrystalline Fe–Si powders, J. Alloys Compd. 314 (2001) 262-267.

DOI: 10.1016/s0925-8388(00)01234-2

[2] D. Ruiz, T. Ros-Yáñez, L. Vandenbossche, L. Dupré, R.E. Vandenberghe, Y. Houbaert, Influence of atomic order on magnetic properties of Fe–Si alloys, J. Magn. Magn. Mater. 290–291 (2005) 1423–1426.

DOI: 10.1016/j.jmmm.2004.11.496

[3] S. Kim, Y. J. Lee, B. Lee, K.H. Lee, K. Narasimhan, Y.D. Kim, Characteristics of nanostructured Fe–33 at. %Si alloy powders produced by high-energy ball milling, J. Alloys Compd. 424 (2006) 204–208.

DOI: 10.1016/j.jallcom.2005.10.085

[4] M. Abdellaoui, C. Djega-Mariadassou, E. Gaffet, Structural study of Fe-Si nanostructured materials, J. Alloys Compd. 259 (1997) 241–248.

DOI: 10.1016/s0925-8388(97)00102-3

[5] J. Barros, T. Ros-Yanez, L. Vandenbossche, L. Dupre´, J. Melkebeekb, Y. Houbaert, Journal of Magnetism and Magnetic Materials, 290–291 (2005) p.1457–1460.

DOI: 10.1016/j.jmmm.2004.11.547

[6] Guangke Tian, Xiaofang Bi, Fabrication and magnetic properties of Fe–6. 5% Si alloys by magnetron sputtering method, Journal of Alloys and Compounds 502 (2010) 1–4.

DOI: 10.1016/j.jallcom.2010.02.175

[7] R.D. Cava, D.P. Oliveira, T. Yonamine, J.J.A. Moreira, W.J. Botta, C.S. Kiminami, C. Bolfarini, Microstructural characterization of high-silicon iron alloys produced by spray forming and co-injection of Si particles, Journal of Alloys and Compounds, 509S, (2011).

DOI: 10.1016/j.jallcom.2011.02.053

[8] Y.F. Liang, Microstructure and mechanical properties of rapidly quenched Fe–6. 5 wt. % Si alloy, Journal of Alloys and Compounds, 504S (2010) p. S476–S479.

DOI: 10.1016/j.jallcom.2010.03.075

[9] C. Suryanarayana, Mechanical alloying and milling, Progress in Materials Science, 46 (2001) pp.1-184.

[10] I. Chicinaş, Soft Magnetic Nanocrystalline Powders Produced by Mechanical Alloying Routes, J. Optoelectron, Adv. Mater. 8 (2006) 439–448.

[11] C. D. Stanciu, T.F. Marinca, F. Popa, I. Chicinaş, O. Isnard, Synthesis of the Fe-10%Si nanocrystalline powder by mechanical alloying, Solid State Phenomena, Vol. 216 (2014) pp.283-287.

DOI: 10.4028/www.scientific.net/ssp.216.283

[12] T.F. Marinca, I. Chicinaş, O. Isnard, V. Popescu, Nanocrystalline/nanosized Ni1-γFe2+γO4 ferrite obtained by contamination with Fe during milling of NiO-Fe2O3 mixture. Structural and magnetic characterization, J. Am. Ceram. Soc. 96 (2013).

DOI: 10.1111/jace.12043

[13] P. K. Muduli, K. -J. Friedland, J. Herfort, H. -P. Schönherr, K. H. Ploog, Composition dependent properties of Fe3Si films grown on GaAs(113)A substrates, Journal of Applied Physics 105, 07B104 (2009).

DOI: 10.1063/1.3072832
